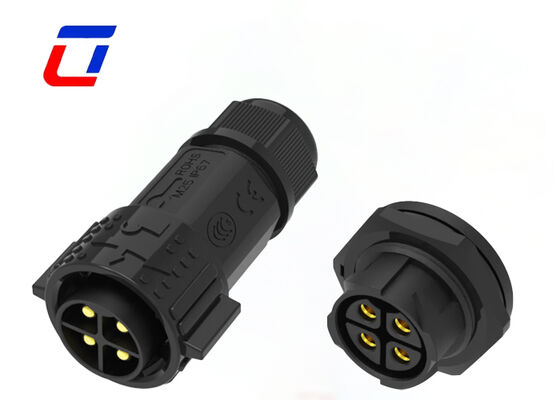

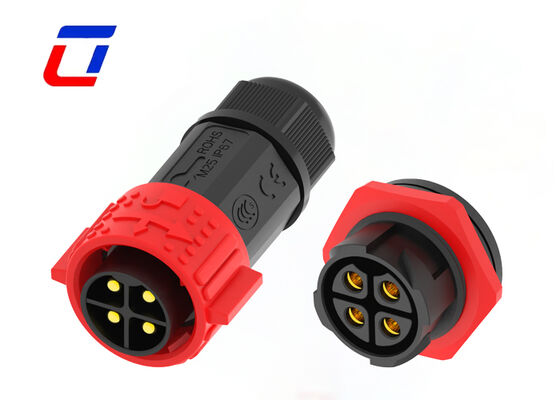

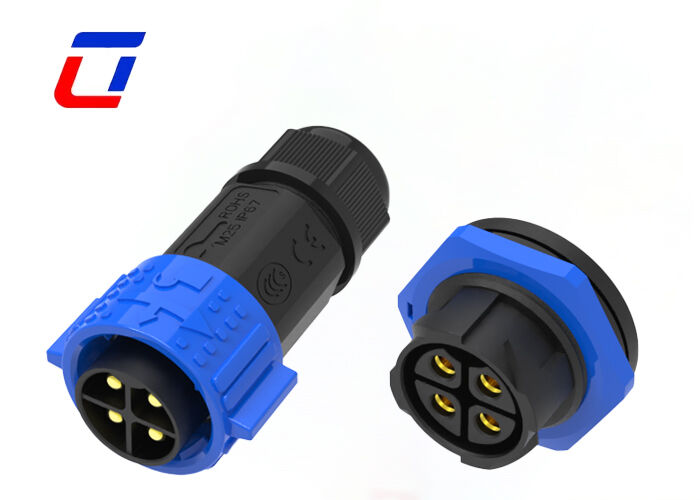

Name: High Current 50A M25 4 Pin Male To Female Connector PA66 Plastic Circular Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Power Connector

High Current 50A M25 4 Pin Male To Female Connector PA66 Plastic Circular Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	50A	Rated Voltage:	500V
Material:	Nylon&Brass Gold-Plated	Protection Level:	IP67 Waterproof
Flame-resistant Rating:	UL94-V0	Industry Fields:	Industrial Automation
Highlight:	50A M25 4 pin circular connector , PA66 plastic waterproof power connector , high current male to female connector

High Current 50A M25 4 Pin Male To Female Connector PA66 Plastic Circular Connectors

Quick Details of IP67 Waterproof connector

4-Pin High-current Pure Power Design: Adopting a standardized 4-pin full-power channel layout, this connector is customized for 50A super high-current transmission without signal interference. The balanced pin arrangement ensures even current distribution, stable high-power output and no current deviation, perfectly serving as the main power docking solution for various heavy-duty electrical equipment.
50A Super High Current Carrying Capacity: Rated at 50A large current, it is equipped with thickened and widened high-purity copper terminals with large conductive area and low resistance. It maintains low heat generation and stable performance under long-term full-load operation without virtual connection or power attenuation, ensuring reliable power supply for heavy-duty industrial and energy storage equipment.
High-strength Flame-retardant PA66 Housing: Integrally injection-molded with modified PA66 nylon material, the housing features high rigidity, high toughness and strong impact resistance. With excellent flame retardancy, insulation and high voltage resistance, it effectively prevents electric leakage and short circuits, and delivers outstanding tensile, bending and aging resistance for long-term industrial application.
Complete Male & Female Matching Design: Supplied with matched male and female connectors for flexible wire-to-wire connection. It supports power cable extension, transfer and capacity expansion, adapting to equipment external power connection, equipment assembly wiring and heavy-duty circuit renovation with high flexibility and universality.
Tool-free Thread-free Quick Lock Structure: Featured with professional quick-lock self-locking design, the male and female terminals can be automatically locked by simple pushing. The tight anti-loosening structure resists equipment vibration and external pulling. Press-to-release enables fast manual assembly and disassembly, improving wiring and maintenance efficiency and supporting frequent repeated plugging.
Standard M25 Specification with Excellent Heat Dissipation: Adopting industry-standard M25 circular size with sufficient insulation spacing to avoid creepage and breakdown risks under heavy load. The large internal cavity accelerates heat dissipation, reduces operating temperature rise effectively, and greatly improves overall operation safety and service life under high-current working conditions.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:How can I get samples?

A2: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

M*n

United States Feb 26.2025

Helpful (2297)

The best part of these connectors is their easy installation. We don’t need any professional tools by its quick lock type,they’re also durable.

M*i

Italy Sep 11.2024

Helpful (1319)

Excellent connectors! They are well-made, completely waterproof, and work wonderfully even in bad weather. The service was outstanding, and I can recommend this seller to everyone.

J*z

Philippines May 11.2024

Helpful (1643)

Nagtry na kami ng maraming brand ng waterproof connector, ngunit ito ang pinakamatibay. Hindi tumatagas ng tubig kahit sa malakas na ulan, hindi nagkakaroon ng short circuit, safe gamitin. Ang pre-sales at after-sales na serbisyo ay napakabait, mabilis tumugon at tumutulong sa amin sa lahat ng problema.
