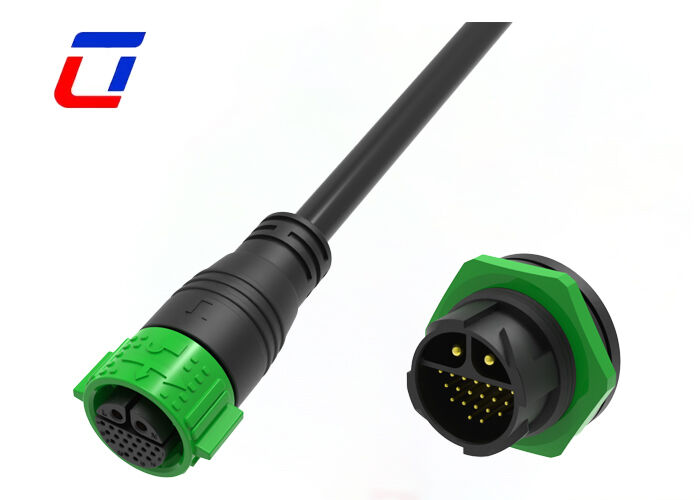

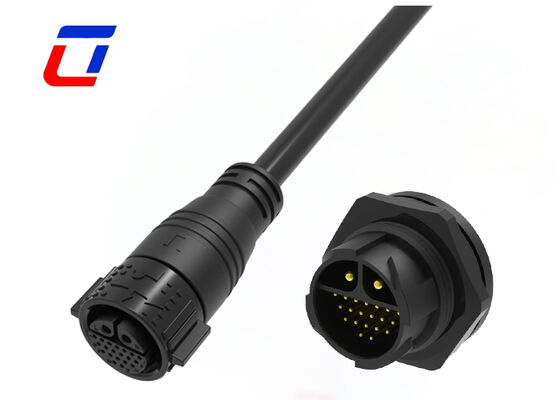

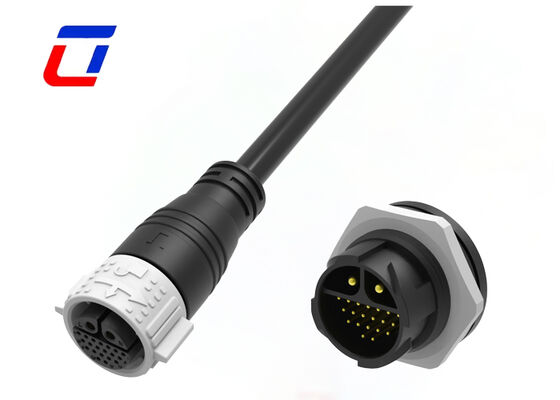

2+20 Pin M25 20A+5A Power Signal IP67 Multi Pin Waterproof Connectors

Product Overview

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Key Features

2+20Pin Split Design for Isolated Power & Signal Transmission: Adopting a professional 2+20-pin integrated partition layout, 2 heavy-duty pins support 20A high-current power supply, while 20 dense pins transmit 5A low-power control signals independently. It realizes synchronous power and multi-channel signal transmission with one connector, completely eliminating electromagnetic crosstalk between power loop and precision signals to avoid signal distortion and ensure stable integrated wiring.
Dual Current Rating for Accurate Working Condition Adaptation: Featured with differentiated dual-load design, the main power circuit bears 20A high current for core equipment power supply, and the signal circuit adapts to 5A weak current for sensor and data transmission. The targeted current matching prevents overload heating, signal attenuation and current fluctuation, meeting dual demands of high-power power supply and high-precision signal transmission in complex industrial scenarios.
IP67 Full-range Waterproof & Dustproof Protection: Equipped with multi-layer integrated sealing structure and tight push-lock fitting technology, the fully closed connector achieves IP67 protection grade. It effectively resists water immersion, rain erosion, dust accumulation, moisture condensation and oil corrosion, protecting internal multi-pin contacts from oxidation, short circuit and connection failure for all-weather stable operation.
Tool-free Vibration-resistant Push-lock Self-locking Structure: Adopting thread-free push-lock self-locking system, the male and female terminals are automatically locked by simple pushing with anti-loosening and anti-drop performance, resisting vibration and external pulling. Press-to-release design enables fast manual assembly and disassembly without tools, improving wiring and maintenance efficiency and supporting frequent long-term plugging.
High-density Multi-pin Integration Simplifies Wiring: 20 independent signal channels support parallel transmission of multiple groups of control commands, sensor data and grouping signals. It replaces multiple ordinary single-function connectors, reduces equipment ports and wiring complexity, lowers circuit failure rate, and perfectly fits integrated wiring of automation equipment, intelligent displays and electrical control systems.
Flame-retardant & Weather-resistant Industrial Housing: One-piece injection molded with high-strength flame-retardant engineering plastic, the housing features excellent insulation, high toughness and impact resistance. With outstanding bending resistance, temperature resistance and UV aging resistance, it prevents electric leakage and short circuit risks, and maintains stable structure without deformation or cracking during long-term indoor and outdoor service.

Application Industries

Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Industrial Inkjet Equipment

Technical Specifications

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A +5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension
