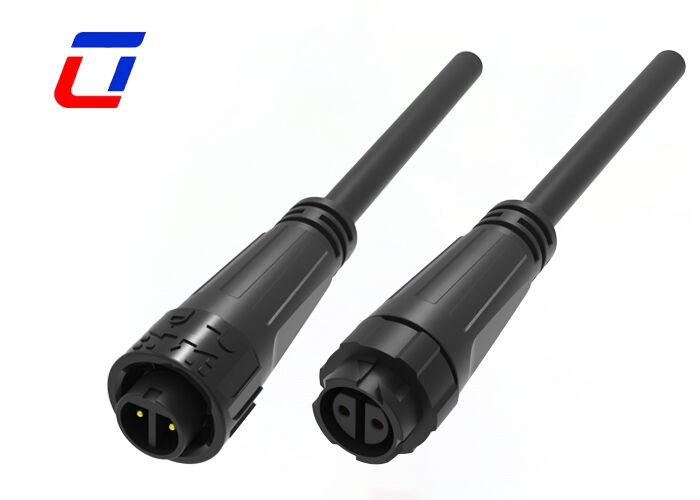

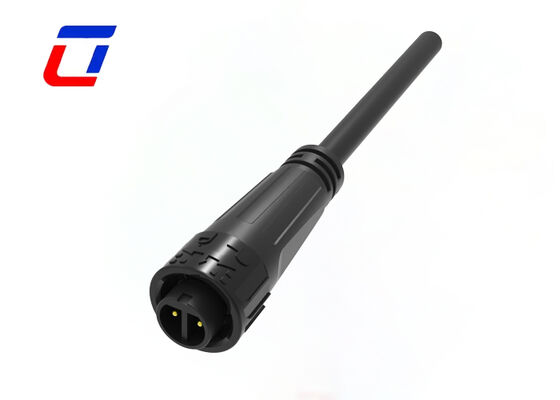

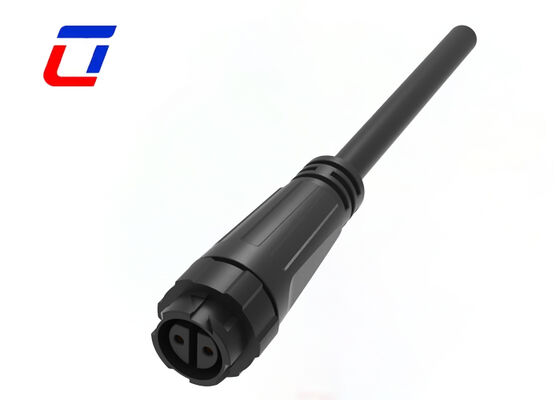

Name: M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Cable Connector

M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Contact Material:	Brass Gold-Plated	Current:	10A Max For Power
Waterproof Rating:	IP67	Rated Voltage:	300V
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40~+105℃
Highlight:	M16 waterproof power connector , 2 pin quick lock connector , UL certified waterproof cable connector

M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector

Description of Industrial Waterproof Circular Connector

Dedicated 2-Pin Pure Power Transmission: Adopting a simplified 2-pin single-circuit design, this connector is exclusively customized for pure power supply applications. The pure power circuit structure avoids signal crosstalk and current disorder, ensuring stable and pure power output with low failure rate, perfectly meeting the docking needs of various low-voltage power supply equipment.
UL Certified for International Safety Compliance: The connector has obtained official UL safety certification. Its material composition, electrical performance, flame retardancy and insulation level all comply with international safety standards. It has passed strict tests of voltage resistance, heat resistance and leakage prevention, ensuring high safety for exported equipment, standard projects and high-end intelligent devices.
IP67 Full-grade Waterproof & Dustproof Protection: Featured with high-precision integrated sealing ring and fully fitted quick-lock structure, the connector reaches IP67 waterproof and dustproof grade after docking. It is completely dust-tight, water-immersion resistant, moisture-proof and oil-proof, effectively preventing short circuit, oxidation and poor contact caused by harsh outdoor environments for all-weather use.

Widely applied to outdoor LED lighting, landscape lighting equipment, small photovoltaic power supply systems, outdoor security devices, smart home power circuits, garden electromechanical equipment, outdoor billboards, low-voltage electrical equipment and export-grade electrical supporting devices.

Main Feature

Push lock quick easy release system
Multi-core can be choosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: both wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
Cable assembly services provided – customization is welcome
OEM/ODM partnerships are warmly accepted

Electrical Parameters
Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector

More Technical Details

M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector

FAQ

Q1:How can I get samples?

A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q2:How do I place an order? What is the process?

A2: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

M16 IP67 2 Pin Waterproof Connector 10A UL Obtain Quick Lock Power Connector
