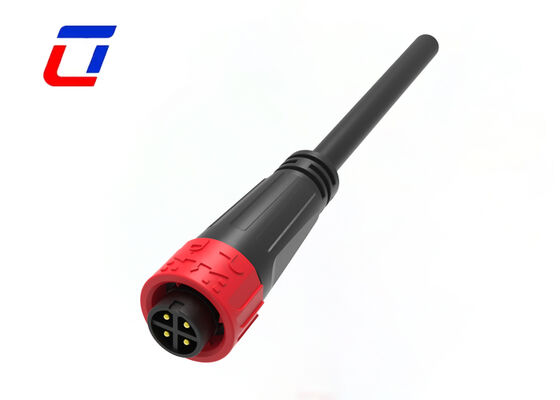

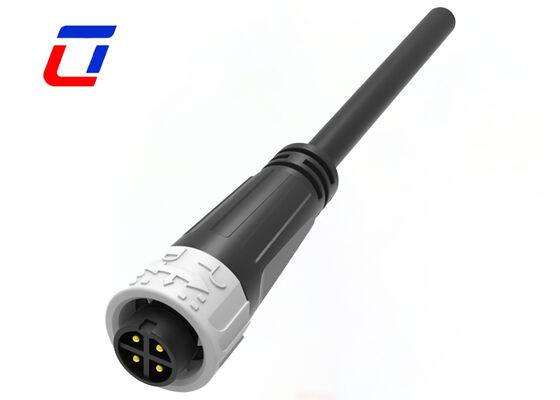

Name: M16 Push Lock Electrical Male Female Connectors Outdoor Waterproof Connector 10A 4 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Outdoor Waterproof Connector

M16 Push Lock Electrical Male Female Connectors Outdoor Waterproof Connector 10A 4 Pin

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Level:	IP67	Current:	Max 10A For Power
Voltage Rating:	300 V	Material Of Copper Needles:	Copper Alloy
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40~+105℃
Highlight:	M16 waterproof electrical connector , 4 pin push lock connector , outdoor waterproof male female connector

M16 Electrical Male Female Connectors Outdoor Waterproof Connector 10A 4 Pin

Product Overview

Standard 4-Pin Layout for Universal Electrical Connection: Adopting a standardized 4-pin layout with scientific pin spacing, this connector is designed for conventional low-voltage electrical connection scenarios. The independent 4-channel structure supports stable transmission of multiple power and control signals without crosstalk, perfectly compatible with most small and medium-sized electrical equipment with strong universality.
10A Rated Current for Stable Power Transmission: Rated at 10A standard current, it supports long-term full-load operation for civil and industrial low-voltage power supply. Built with high-purity copper conductive pins, it features excellent conductivity and low heat generation, avoiding virtual connection and circuit instability during continuous power supply, ensuring stable and safe equipment operation.
Tool-free Push Lock Self-locking Structure: Upgraded thread-free push-lock self-locking design enables automatic tight locking by simple pushing. The exclusive press-release structure allows quick manual disassembly without any tools, greatly improving the efficiency of wiring installation and equipment maintenance. It supports repeated plugging and unplugging with stable locking performance.
Outdoor-grade Waterproof & Dustproof Protection: Equipped with integrated high-elastic sealing ring and tightly fitted push-lock structure, the connector forms a fully closed protective barrier after docking. It effectively resists rain erosion, water immersion, dust accumulation and moisture corrosion, preventing contact oxidation, short circuit and connection failure, suitable for all-weather outdoor and harsh working environments.
Weather-resistant Industrial Plastic Housing: One-piece injection molded with high-strength eco-friendly engineering plastic, the housing is tough, impact-resistant, tensile and bend-resistant. It features excellent insulation, flame retardancy, aging resistance and temperature resistance, resisting deformation and cracking under long-term outdoor exposure, and extending service life greatly.

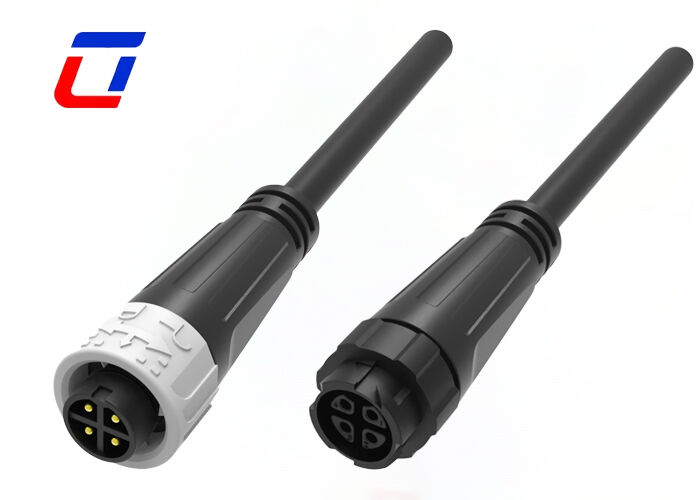

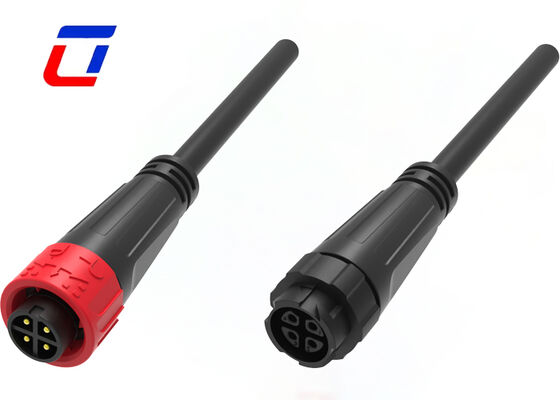

Matched Male & Female Design for Flexible Wiring: Supplied with complete male and female connector sets for flexible wire-to-wire docking. It supports free cable extension, transfer and shunting without fixed port limitations. The flexible wiring mode adapts to equipment modification, outdoor wiring and external equipment connection for diverse application scenarios.

Main Features

Push lock quick release system, hassle-free operation
Multic-core are available for selection: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version: wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How many materials you can provide?

A1: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.

Q2: How to track my shipment?

A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
