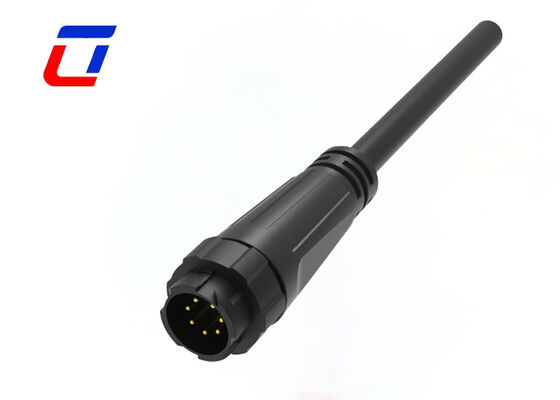

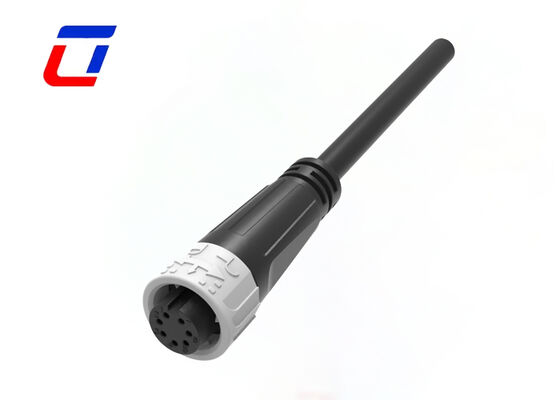

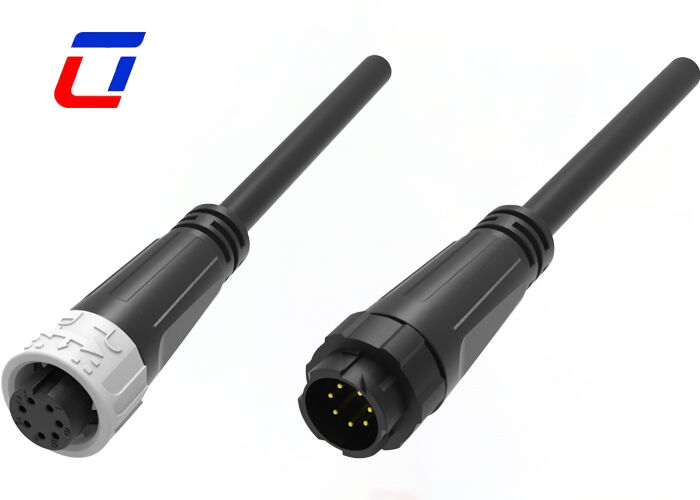

Name: M16 5A 7 Pin Waterproof Low Voltage Wire Connectors Push Lock Male Female Data Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Cable Connector

M16 5A 7 Pin Waterproof Low Voltage Wire Connectors Push Lock Male Female Data Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:

5A Max For Data

Flame-resistant Rating:

UL94-V0

Material:

Brass Gold-Plated,PA66

Operating Temperature:

-40~+105℃

Highlight:

M16 waterproof wire connectors

5A low voltage data connectors

7 pin push lock connectors

M16 5A 7 Pin Waterproof Low Voltage Wire Connectors Push Lock

Main Features

Push lock quick release system for easy installation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 24Pin configurations
Field assembly versions: wire to wire and wire to board
Cable assembly service supported with custom options available
OEM/ODM services welcome

Product Specifications

7-Pin Multi-channel Synchronous Data Transmission: Equipped with 7 integrated pin channels, specially designed for low-voltage signal and data transmission. It supports synchronous parallel transmission of multiple signals with independent channels without crosstalk. Compared with conventional low-pin connectors, it meets the simultaneous access requirements of multiple groups of control signals, sensor data and weak current signals for intelligent equipment, ensuring accurate and stable data transmission in complex working conditions.
Safe Low-power & Low-voltage Signal Transmission: Rated at 5A low current, this connector is professionally designed for weak current data and signal transmission instead of high-power power supply. Built-in precision gold-plated conductive contacts feature sensitive contact and ultra-low impedance, effectively avoiding signal delay, loss and distortion, and perfectly adapting to various low-voltage precision intelligent equipment.
Tool-free Push Lock Self-locking Structure: Adopting an upgraded push-lock self-locking design, the male and female connectors can be automatically locked and tightly fitted by simple pushing. It supports one-step quick connection and easy disassembly by pressing the release buckle without any tools. The smooth plug-and-play operation greatly improves the efficiency of mass wiring and equipment maintenance, and supports frequent assembly and disassembly.
Matched Male & Female Wire-to-Wire Connection: Supplied with complete male and female matching sets, adopting flexible wire-to-wire docking mode. It supports free extension, transfer and shunting of low-voltage cables without fixed equipment ports. The flexible wiring mode allows arbitrary adjustment of circuit routes, adapting to equipment external connection, line extension and equipment modification with strong universality.
High-density Waterproof & Anti-interference Performance: Built with integrated high-elasticity sealing rubber ring and fully fitted push-lock structure, the connector achieves seamless fitting after docking. It effectively resists the intrusion of rainwater, moisture, dust and oil stains, and provides excellent anti-electromagnetic interference ability to avoid external environment interference with data transmission, suitable for complex indoor and outdoor humid and dusty scenarios.
Flame-retardant & Durable Integrated Housing: The one-piece injection-molded housing is made of eco-friendly flame-retardant engineering plastic with compact and tough texture. It features aging resistance, high and low temperature resistance, bending resistance and crack resistance, as well as excellent insulation performance. It effectively prevents electric leakage and short circuit risks, ensuring stable and long-term operation for indoor and outdoor equipment.

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Images

Frequently Asked Questions

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Do you support product customization?

Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
