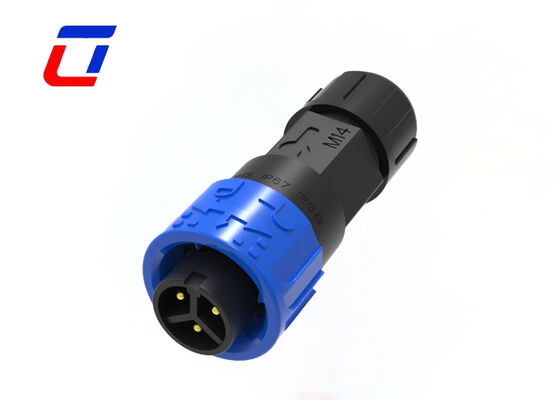

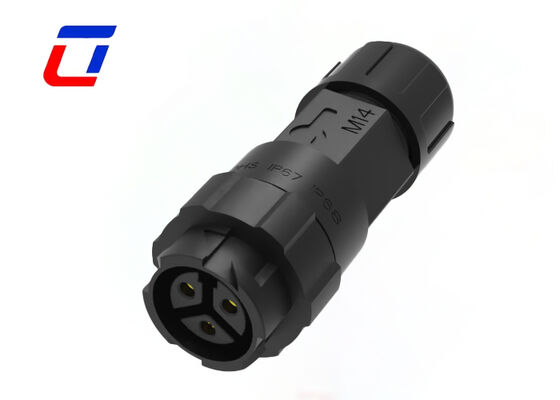

Name: 10A M16 3 Pin Power Connector Waterproof 300V Wire To Wire Circular Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Outdoor Waterproof Connector

10A M16 3 Pin Power Connector Waterproof 300V Wire To Wire Circular Connectors

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Material:	PA66
Current:	10A	Rated Voltage:	300V
Operating Tempereture:	-40~+105℃	Flame-resistant Rating:	UL94-V0
Highlight:	10A M16 waterproof power connector , 3 pin wire to wire connector , 300V waterproof circular connector

10A M16 3 Pin Power Connector Waterproof 300V Wire To Wire Circular Connectors

3 Pin Power Connector Product Overview

Mainly applied to outdoor lighting fixtures, small industrial control equipment, smart home electrical circuits, small outdoor photovoltaic power supply systems, irrigation electromechanical equipment, low-voltage circuits of amusement equipment, vehicle auxiliary electrical systems, outdoor monitoring power supply lines and general low-voltage cable extension docking scenarios.

M16 IP67 Waterproof Connectors Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications Of 3 Pin Power Connector

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

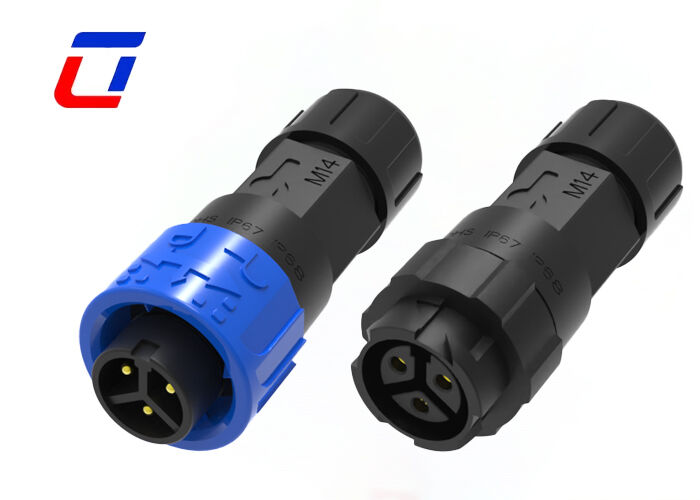

3 Pin Male To Female Connector Design & Construction

Professional 3-Pin Pure Power Design: Adopting a dedicated 3-pin core layout exclusively for power transmission, this connector is professionally developed for pure power supply scenarios without signal pin interference. The regular and balanced circuit arrangement ensures stable single-phase power transmission, effectively avoiding current disorder and signal interference, and delivers smooth power output that meets standard industrial and civil power connection requirements.
Precise Electrical Parameters for Low-voltage Safety: Rated at 300V voltage and 10A current, it perfectly matches the power supply needs of small and medium-sized low-voltage electrical equipment. Equipped with thickened high-purity copper conductive pins, it features high conductivity and low heat generation. It will not overheat or attenuate under long-term full-load operation, maintaining stable circuit conduction and constant power output to ensure continuous equipment operation.
Flexible Wire-to-Wire Connection Structure: Featured with a professional wire-to-wire docking design, it supports free extension and connection of two cables, suitable for various wiring scenarios such as line lengthening, equipment transfer and circuit shunting. Without relying on equipment shell installation, it offers high wiring flexibility and adapts to various non-standard wiring conditions.
All-weather Waterproof & Moistureproof Performance: Built with integrated sealing rubber rings and precision self-locking docking structure, the connector has excellent waterproof and moistureproof capabilities. It resists rain erosion, water immersion and outdoor fog corrosion, and prevents short circuit, oxidation and contact failure caused by water vapor, dust and sediment intrusion, ideal for outdoor, humid workshop and water-related equipment scenarios.
Tough & Wear-resistant Integrated Housing: The housing is made of high-toughness environmentally friendly engineering plastic formed by precision injection molding, which is tough and not easy to crack. It has excellent resistance to bending, stretching, wear and weathering, resisting damage from installation pulling, sun exposure, rain erosion and low-temperature cracking, suitable for mobile equipment and frequent disassembly scenarios with long service life.
Universal M16 Self-locking Structure for Wide Compatibility: Adopting industry-standard M16 specification and professional self-locking locking structure, it features tight fitting, easy assembly and disassembly without professional tools. The self-locking design effectively prevents loosening and falling off. It is highly compatible with mainstream M16 accessories on the market, widely applicable to most low-voltage power line docking scenarios and easy to replace.

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
