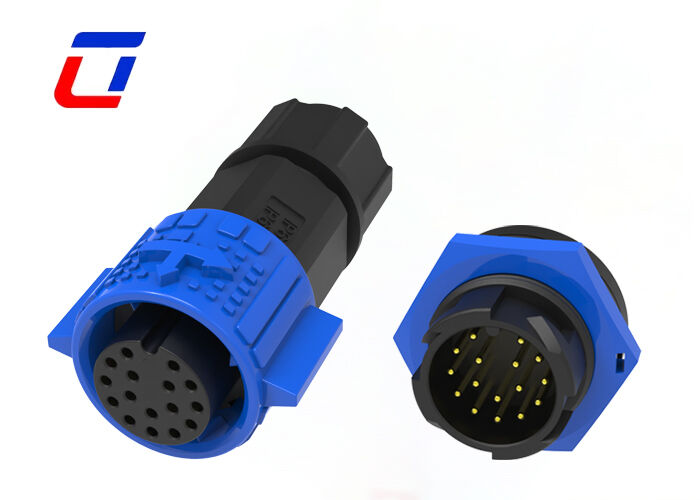

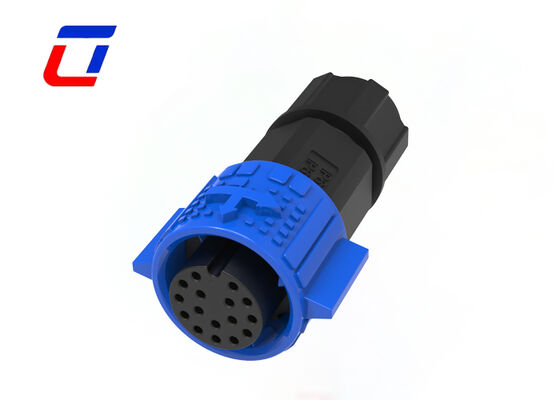

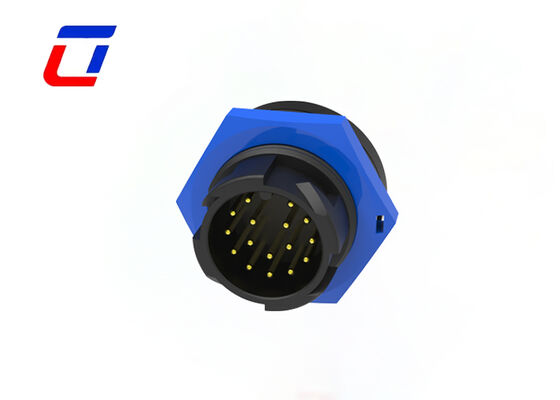

Name: PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	16 Pin For Data	Rated Voltage:	300V
Material:	Nylon&Brass Gold-Plated	Operating Temperature:	-40℃-+105℃
Flame-resistant Rating:	UL94-V0	Protection Level:	IP67
Highlight:	PA66 M19 circular connector , 16 pin waterproof quick connector , IP67 panel mount connector

PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector

Ulinkcon M19 16Pin panel-mount circular waterproof connector adopts industrial flame-retardant PA66 housing and high-density 16-pin pure signal layout. Rated at 5A current and IP67 waterproof grade, it features stable multi-channel weak-current transmission and quick connection design. With firm embedded panel installation and excellent weather resistance, it is a high-density professional data connector for outdoor industrial terminals and sensor devices.

Product Overview

High-Density 16-Pin Multi-Channel Signal Transmission:Precisely arranged 16 pure signal pins provide sufficient independent transmission channels without power circuit interference. It supports synchronous transmission of multi-group sensor data, control commands and communication signals, perfectly meeting high-precision and multi-signal interaction requirements of integrated intelligent control systems.
Flame-Retardant PA66 Industrial Housing:Upgraded PA66 engineering nylon housing delivers outstanding flame retardancy, impact resistance and compression resistance. It features excellent high and low temperature resistance, UV resistance and anti-aging performance, maintaining stable structural strength under long-term harsh outdoor working conditions.
Panel Mount & Quick Connection Structure:Standard embedded panel mounting design ensures accurate positioning and firm installation on equipment shells and control panels, ideal for automated mass production and space-saving assembly. The optimized quick-connect structure is vibration-proof and anti-loosening, ensuring continuous and stable connection during long-term equipment operation.
IP67 Waterproof & Anti-Interference Performance:High-precision annular sealing gaskets realize standard IP67 dustproof and waterproof protection, effectively blocking rainwater, moisture and dust ingress. The independent signal circuit shields electromagnetic interference, achieving zero-delay and lossless multi-channel data transmission for all-weather stable equipment operation.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q: How many materials you can provide?

A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
