Name: IP67 M19 Waterproof Quick Disconnect Wire To Board connectors 2+20 Pin For Power And Signal
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

IP67 M19 Waterproof Quick Disconnect Wire To Board connectors 2+20 Pin For Power And Signal

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage/current:	300V/5A	Protection Level:	IP67
Material:	PA66&Copper Alloy	Connecting Mode:	Push Lock Wire To Board
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40~+105℃
Highlight:	IP67 waterproof M19 connector , quick disconnect wire to board connector , 20 pin power signal connector

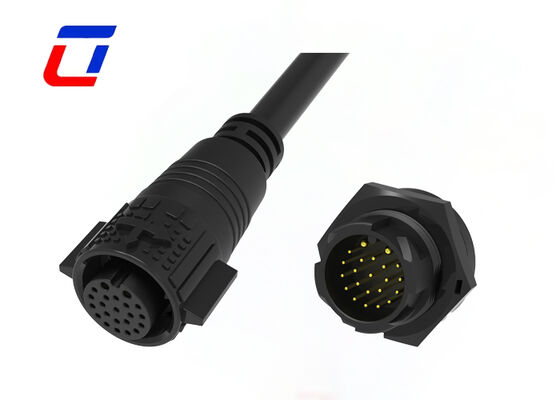

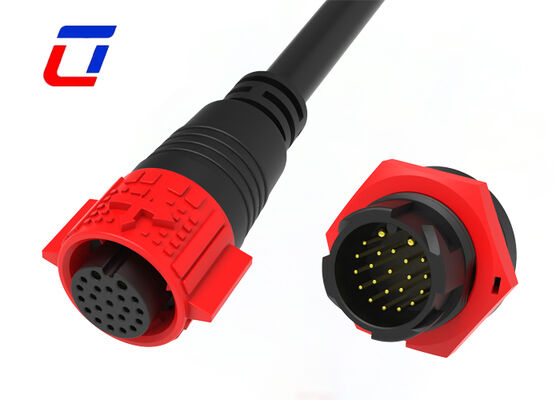

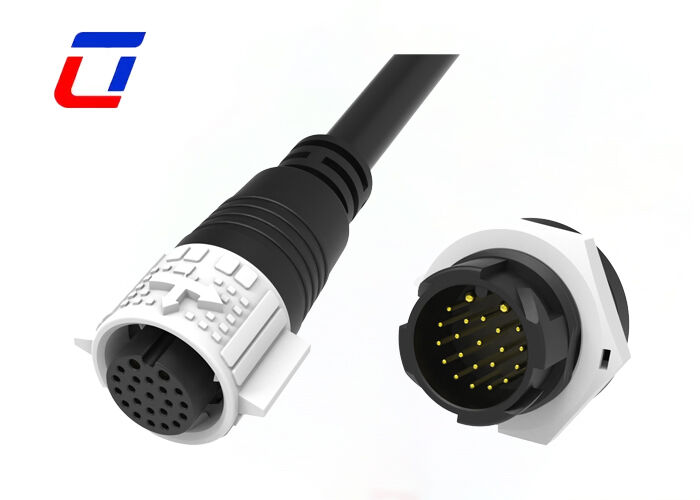

IP67 M19 Waterproof Quick Disconnect Wire To Board connectors 2+20 Pin For Power And Signal

Quick Description

Ulinkcon M19 2+20Pin IP67 waterproof wire-to-board connector features a unique 2+20 pin hybrid layout for power and signal integration. Rated at 15A+5A current and 300V voltage resistance, it combines high-current power supply and high-density multi-channel data transmission. Adopting quick-disconnect structure and professional wire-to-board design with IP67 all-weather protection, it is a high-performance composite connector for integrated industrial control and outdoor smart equipment.

2+20Pin High-Density Power & Signal Integration:Adopts exclusive 2+20 pin configuration. 2 pins deliver 15A high-current power output for equipment main load, while 20 high-density pins support 5A multi-channel signal transmission. It realizes integrated power and massive data communication in one connector, perfectly fitting highly integrated smart devices.
Dual 15A+5A Current & 300V Insulation Performance:Graduated strong and weak current design ensures stable power operation and accurate signal transmission. 300V high voltage resistance effectively resists outdoor surge and voltage fluctuation, preventing electric leakage, short circuit and breakdown for long-term safe operation.
Quick-Disconnect Tool-Free Structure:Upgraded quick-release self-locking design enables tool-free plugging and unlocking. It is more flexible for frequent equipment maintenance and debugging. The tight locking structure is vibration and tension resistant, ensuring continuous and stable connection during equipment operation.
Precise Wire-To-Board Embedded Installation:Professional wire-to-board structure supports precise embedded docking with PCB mainboards. The compact and fitting design saves internal equipment space, suitable for automated mass production and built-in connection of modular precision equipment with high assembly accuracy.
IP67 All-Weather Waterproof & Dustproof:Equipped with integrated high-elastic sealing gaskets for fully enclosed protection. It effectively blocks rain splash, moisture, dust and sand ingress, ensuring stable performance for outdoor, semi-outdoor and externally installed equipment without poor contact or signal failure.
Anti-Interference & Industrial Weather Resistance:Physically isolated power and signal circuits eliminate electromagnetic interference, ensuring smooth and lossless mass data transmission. UV-resistant, temperature-resistant and anti-aging housing plus oxidation-proof pins adapt to harsh outdoor environments. Widely applied in precision industrial control and smart equipment projects with reliable factory quality and bulk supply capacity.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	2+20pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch
