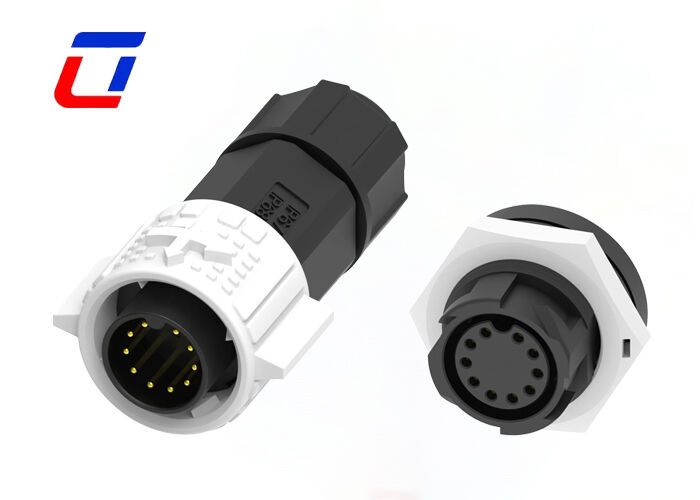

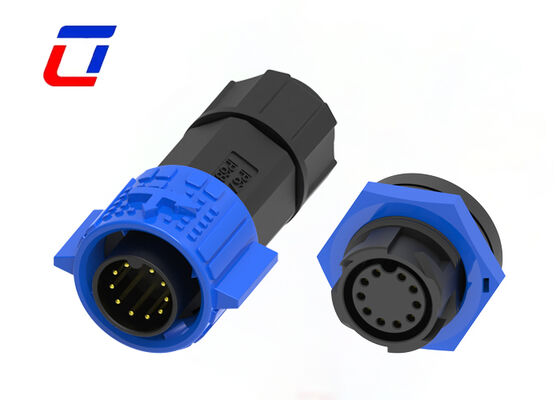

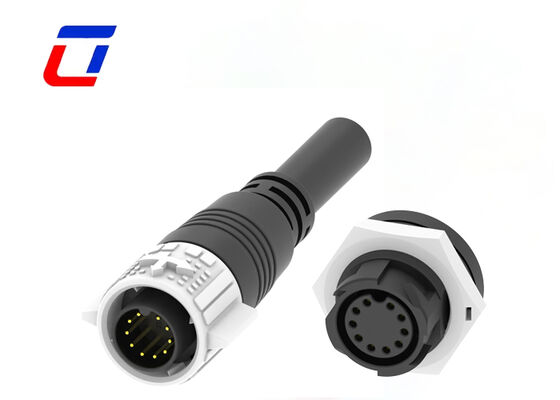

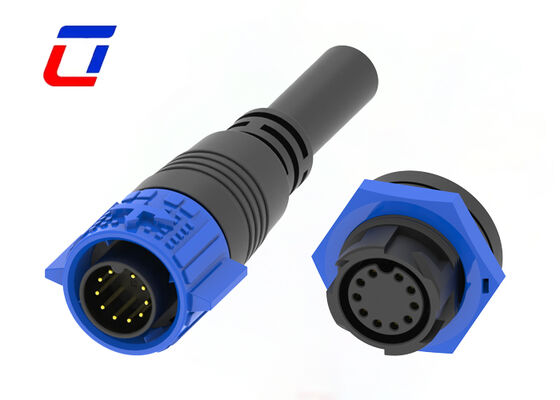

Name: M19 10 Pin Waterproof Panel Mount Connector 5A 300V Quick Lock Round Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

M19 10 Pin Waterproof Panel Mount Connector 5A 300V Quick Lock Round Data Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Protection Level:	IP67	Contact Material:	Brass Gold-Plated
Flame-resistant Rating:	UL94-V0	Current Rating:	5A
Rated Voltage:	300V	Housing Material:	Flame-Retardant Plastic
Highlight:	M19 waterproof panel mount connector , 10 pin quick lock data connector , 5A 300V round waterproof connector

M19 10 Pin Waterproof Panel Mount Connector 5A 300V Quick Lock Round Data Connector

Quick Description

Ulinkcon M19 10Pin waterproof panel mount data connector is rated 5A and 300V, featuring a round panel fixed structure and high-density 10-pin pure data layout. Different from ordinary cable-to-cable connectors, it supports embedded panel installation with quick-lock docking. Designed for multi-channel weak-current data transmission, it delivers stable sealing performance and firm installation, ideal for outdoor industrial controllers, smart instruments and terminal devices.

High-Density 10-Pin Data Layout:Precision 10-pin arrangement provides sufficient signal channels for multi-group control, sensor and communication data transmission. It supports high-frequency and multi-channel data interaction for smart equipment with neat and standardized wiring structure.
5A 300V Reliable Weak-Current Performance:With 300V excellent insulation voltage resistance, it resists voltage fluctuation and instantaneous surge to prevent electric leakage and short circuit. The 5A rated current ensures stable load operation for low-voltage data circuits and auxiliary power loops.
Professional Round Panel Mount Structure:Adopts dedicated panel fixing design with positioning locking structure. It can be firmly embedded on equipment shells and control panels with high fitting accuracy. It saves external wiring space and is highly suitable for standardized mass equipment assembly.
Quick-Lock Plug & Play Design:Tool-free snap self-locking structure enables fast plugging and unlocking for easy installation and maintenance. The firm locking status is vibration-proof and anti-loosening, ensuring stable connection during frequent debugging and outdoor operation.
Excellent Waterproof & Dustproof Sealing:Equipped with high-precision annular sealing gaskets for tight panel fitting. It effectively blocks rainwater, dust and moisture ingress, avoiding internal circuit oxidation and poor contact to guarantee all-weather stable equipment operation.
Anti-Interference & Industrial Durability:Independent pure signal circuit design eliminates electromagnetic interference for delay-free and lossless data transmission. Adopting UV-resistant, temperature-resistant housing and anti-oxidation pins, it adapts to harsh outdoor environments. Widely used in industrial instruments, outdoor smart terminals and monitoring devices with reliable factory quality.

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

M19 10 Pin Waterproof Panel Mount Connector 5A 300V Quick Lock Round Data Connector

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Can I have custom label?

A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

3. Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

M19 10 Pin Waterproof Panel Mount Connector 5A 300V Quick Lock Round Data Connector
