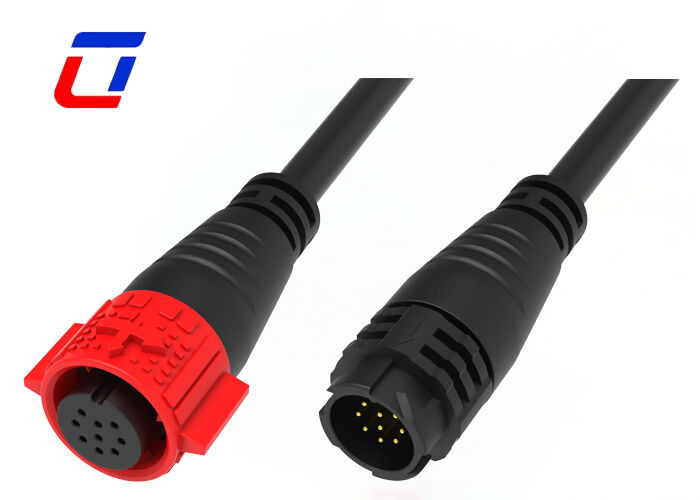

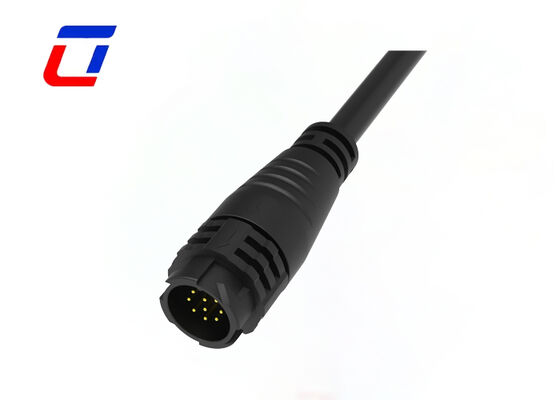

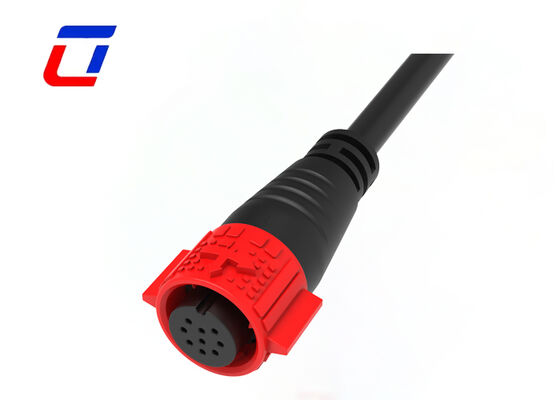

Name: 5A 300V 9 Pin M19 Molded Cable Connectors Push Lock Waterproof Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

5A 300V 9 Pin M19 Molded Cable Connectors Push Lock Waterproof Data Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current/Voltage Rating:	5A/300V	Flame-resistant Rating:	UL94-V0
Material:	PA66	Protection Level:	IP67
Contact Material:	Brass Gold-Plated	Temperature:	-40~105℃
Highlight:	5A 300V M19 waterproof connector , 9 pin push lock data connector , M19 molded cable waterproof connector

5A 300V 9 Pin M19 Molded Cable Connectors Push Lock Waterproof Data Connector

Main Features

Push lock quick release system for easy connection
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire to wire and wire to board options
5A current rating for continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Overview

Ulinkcon M19 9Pin molded cable push-lock waterproof data connector features integrated molded cable structure and professional push-lock design. Rated at 300V and 5A, it is dedicated to pure low-voltage data transmission with stable anti-interference performance and excellent waterproof capability. Optimized for outdoor weak-current control and signal collection devices, it provides reliable and durable data connection solutions for various outdoor engineering scenarios.

9-Pin Professional Data Transmission Layout:Standard 9-pin pure signal layout supports multi-channel synchronous data transmission, including sensor signals, control commands and device feedback data. High-precision pin arrangement ensures sufficient signal channels without redundant power pins, realizing neat and efficient wiring.
300V Insulation & 5A Low-Current Stability:With 300V high voltage resistance, it effectively resists outdoor low-voltage surge and voltage fluctuation to avoid electric leakage and breakdown. The 5A rated current perfectly matches pure data circuits and auxiliary low-power loops, ensuring long-term safe and stable operation of weak-current equipment.
Integrated Molded Cable Structure:Adopts one-piece injection molding technology to integrate cable and connector seamlessly. It avoids wire breaking, loosening and water leakage, featuring excellent bending resistance and tensile resistance. More durable than ordinary assembled connectors for long-term outdoor wiring and frequent plugging scenarios.
Push-Lock Quick Connection Design:Upgraded push-type self-locking structure enables automatic locking after insertion and one-click release. Tool-free installation brings smoother docking and higher efficiency for mass wiring and equipment maintenance. The locked state is vibration-proof and anti-loosening for stable connection.
Waterproof & Anti-Interference Performance:Equipped with high-elastic sealing gaskets for excellent dustproof and waterproof performance, resisting moisture, rain splash and dust ingress for all-weather outdoor use. Independent pure signal circuit design eliminates electromagnetic interference, ensuring lossless and low-delay data transmission.
Weather Resistance & Wide Compatibility:Made of UV-resistant and temperature-resistant plastic with anti-oxidation pins for long-term outdoor service. Widely applicable to outdoor smart devices, lighting control systems and industrial sensor equipment. Strictly factory tested for stable quality and mass project supply.

Electrical Parameters

Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: What payment methods do you accept?

A: We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment with 70% balance due before shipment.

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market. Q: Do you support product customization?
