300V 3+2 Pin Cable Connectors Waterproof Red M19 Data Quick Connector For Lighting

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2 Multi Pin	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Housing Material:	PA66
Material Of Copper Needles:	Copper Alloy	Flame-resistant Rating:	UL94-V0
Highlight:	300V waterproof cable connector , M19 waterproof data connector , 3+2 pin quick connector

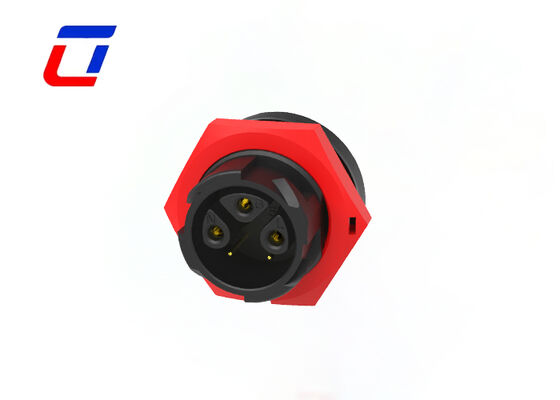

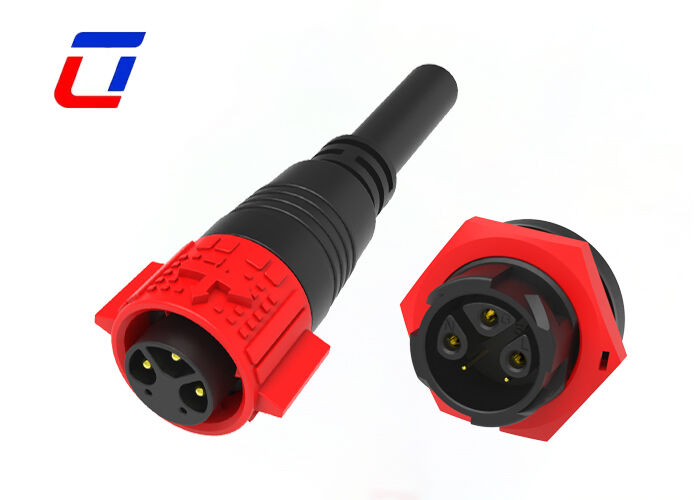

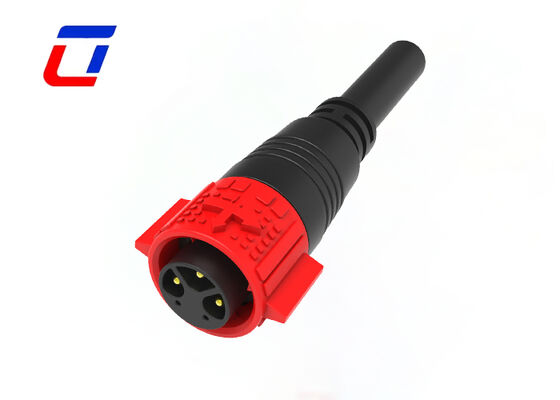

300V 3+2 Pin Cable Connectors Waterproof Red M19 Data Quick Connector For Lighting

Product Overview

3+2 Pin Special Layout for Lighting System:Adopts industry-standard 3+2 partition design. 3 pins provide stable main power supply for lighting equipment, while 2 pins independently transmit dimming and color control signals. It realizes integrated power and signal connection, replaces complicated separate wiring, and standardizes on-site lighting project wiring.
300V High Voltage Resistance & Safety:With 300V superior insulation performance, it resists instantaneous voltage fluctuation and surge impact, effectively preventing electric leakage, short circuit and breakdown. It operates stably under long-term continuous power-on conditions and complies with outdoor electrical safety standards.
High-Visibility Red Housing:Unique bright red shell is highly distinguishable from ordinary black connectors. It helps workers quickly identify circuit groups, power poles and signal lines during installation and maintenance, effectively reducing wiring errors and improving overall engineering efficiency.
Tool-Free Quick Lock Connection:Thread-free snap locking structure supports plug-and-lock and one-click release without tools. Ideal for large-scale strip light docking, high-altitude lamp installation and modular lighting renovation, greatly saving construction and maintenance time.
All-Weather Waterproof & Dustproof Performance:Equipped with high-elastic sealing gaskets to ensure excellent cavity tightness. It blocks rainwater, moisture, dust and sand ingress, preventing lamp failure, poor contact and LED flickering in outdoor landscape, building and garden lighting scenarios.
Isolated Design for Anti-Interference Lighting Signal:Physically isolated power and signal pins eliminate electromagnetic interference caused by working current. It avoids LED flicker, color deviation, signal delay and asynchronous lighting problems, ensuring stable and accurate operation of the entire lighting system.
Industrial-Grade Weather Resistance & Durability:Flame-retardant high-strength plastic housing and anti-oxidation conductive pins deliver excellent corrosion resistance, plugging durability, UV and temperature resistance. It maintains stable performance under long-term outdoor exposure, perfectly suitable for long-term municipal and commercial lighting projects.

Main Features

Push lock quick release systemMultiple core options: 2Pin, 3Pin, 4Pin, 5Pin for PowerPower signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20PinSignal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18PinField assembly version with wire-to-wire and wire-to-board options20A current rating for continuous operationCable assembly service and OEM/ODM support available

Technical Specifications

Specification Category	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	IP67 (Dust Level 6)
Operating Temperature	-40°C to 105°C
Durability Rating	250-251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications EquipmentProduct Coding MachinesInventory Product Coding SystemsInkjet SystemsSolar SystemsIndustrial Inkjet EquipmentElectric Power EquipmentLaboratory Forensic & Pathology EquipmentHeavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material and contact spacing. Some components may not function properly below their rated voltage.

Q2: Is there a discount for large-quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please provide your expected quantity for a customized quotation.

Q3: Can I have custom label?

A3: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
