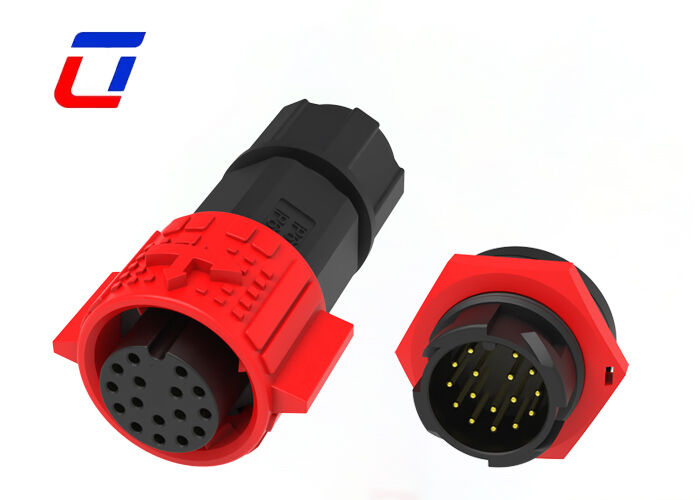

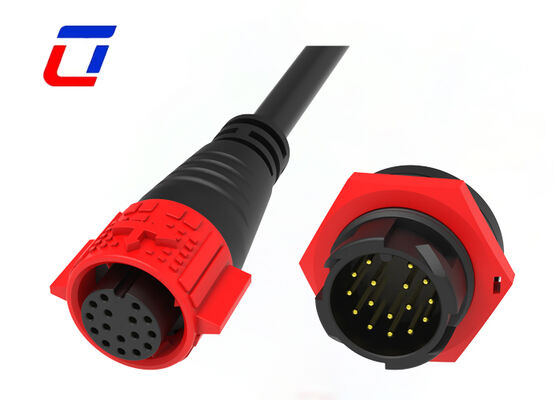

300V M19 Waterproof Outdoor Data Connectors 5A 16 Pin Male Female Quick Connector

1. 16-Pin High-Density 5A Precision Data Transmission

• This M19 outdoor connector adopts a 16-pin high-density integrated design, professionally developed for precision data transmission. It supports 5A low-current stable load and effectively avoids thermal interference, ensuring efficient transmission of weak current signals and sensor data.
• Rated at 300V voltage with sufficient electrical safety margin. Independently insulated pin design eliminates crosstalk, signal delay and data loss, greatly improving the accuracy and stability of multi-device linkage data transmission.
• 16 independent signal channels replace multiple separate connectors, effectively simplifying the wiring structure of outdoor intelligent equipment and reducing overall failure rate.

2. Tool-Free Male & Female Quick Connection

• Featured with standard male and female quick-plug structure, it supports fast docking and disassembly without tools, greatly improving efficiency in outdoor wiring, equipment debugging and daily maintenance.
• Built-in precision positioning and anti-loosening limit structure ensures tight fitting after connection. It resists equipment vibration and wire pulling to prevent accidental disconnection and signal interruption.
• Optimized plugging mechanical structure supports repeated mating cycles with excellent wear resistance, ideal for mass installation and frequent on-site maintenance.

3. IP67 All-Weather Outdoor Waterproof & Dustproof Performance

• Reaches IP67 international protection grade. Equipped with integrated high-elastic sealing ring and closed-loop compression sealing technology, it fully blocks rainwater immersion, splash water, dust and condensed moisture from entering the interior.
• It adapts to harsh outdoor environments including sunlight exposure, rain, frost and temperature alternation, effectively solving common problems such as terminal oxidation, poor contact and signal failure caused by environmental erosion.
• Aging-resistant sealing components maintain stable waterproof and dustproof performance for long-term outdoor service, ensuring uninterrupted data transmission all year round.

4. Low-Loss & Anti-Oxidation Signal Conductive Performance

• Precision signal pins feature ultra-low impedance and stable conductivity, specially optimized for 5A low-current data working conditions to achieve near-zero transmission loss and capture weak control and sensor signals accurately.
• Anti-oxidation and anti-corrosion pin surface treatment resists humid, dusty and temperature-changing outdoor environments, maintaining stable contact performance without oxidation and blackening.
• High-strength insulating housing meets 300V insulation standards, preventing electric leakage and static interference and providing a pure and safe electrical environment for precision data transmission.

5. Wide Application Range

• Ideal for outdoor multi-channel data transmission, widely applied in outdoor sensor arrays, industrial control systems, security data collection devices, outdoor intelligent monitoring terminals and automatic outdoor equipment.
• Perfect for intelligent electrical equipment requiring 16-channel high-density signal transmission, 5A low-current power, 300V voltage resistance and IP67 waterproof quick connection.
