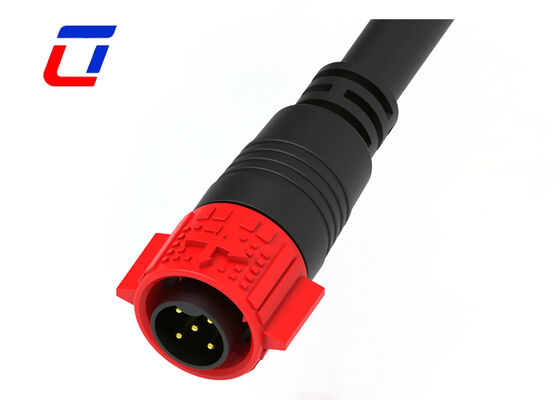

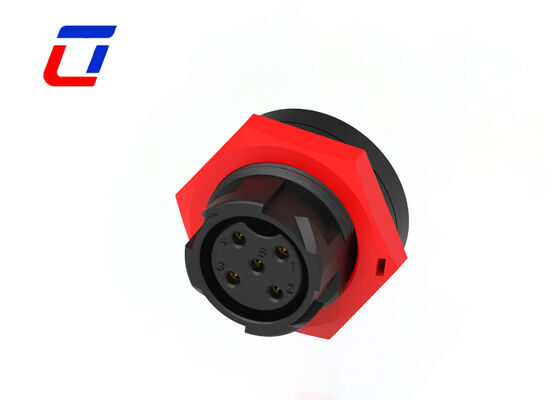

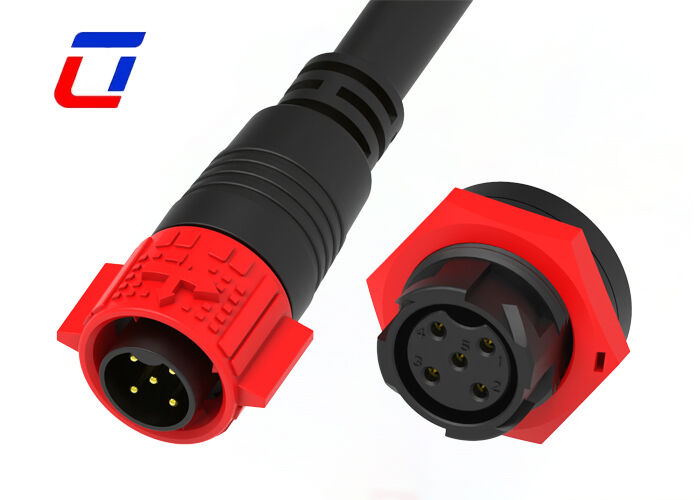

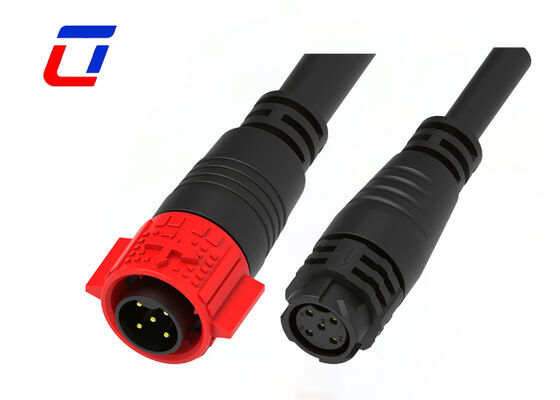

Name: 20A 5 Pin Power Waterproof Cable Connector M19 Industrial Male Female Push Lock Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Power Connector

20A 5 Pin Power Waterproof Cable Connector M19 Industrial Male Female Push Lock Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	5 Pin Power Connector	Rated Voltage:	300V
Material:	Nylon	Flame-resistant Rating:	UL94-V0
Operating Temperature:	-40℃~+105℃	Application Scenarios:	Power Distribution Systems
Highlight:	20A waterproof power connector , M19 industrial push lock connector , 5 pin waterproof cable connector

High Current 5 Pin Cable M19 PA66 300V Male To Female Waterproof Power Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

1. 20A High Current Industrial Power Performance

The integrated 5-pin layout realizes multi-circuit centralized power conduction, effectively meeting the wiring requirements of high-power equipment circuits. It features low temperature rise and zero voltage attenuation during power transmission.

2. Tool-free Push Lock & Male Female Quick Connection

Built-in anti-loosening limit buckle ensures tight and stable connection after locking. It resists equipment vibration and slight wire pulling, preventing poor contact and power interruption in industrial working environments.

3. Superior Waterproof & Dustproof Industrial Protection

It adapts to harsh environments such as outdoor exposure, rain and snow weather, humid workshops and dusty industrial sites, preventing terminal oxidation and short circuit caused by moisture and dust accumulation.

4. Sturdy & Durable Industrial-Grade Material

Thickened high-purity conductive pins feature high conductivity and low impedance, ensuring lossless high-current transmission. The pins are anti-oxidation and anti-corrosion for long-term service in complex industrial environments.

5. Wide Application Range

Ideal for industrial cable connection scenarios requiring high-current power supply, quick locking connection and outdoor waterproof & dustproof performance.

Electrical Parameters
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Is there a discount for large - quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: Can I have custom label?

A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
