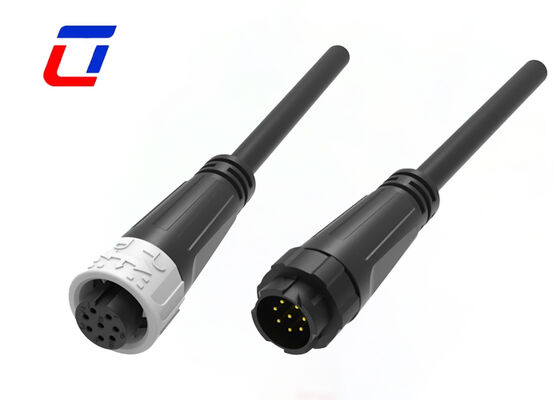

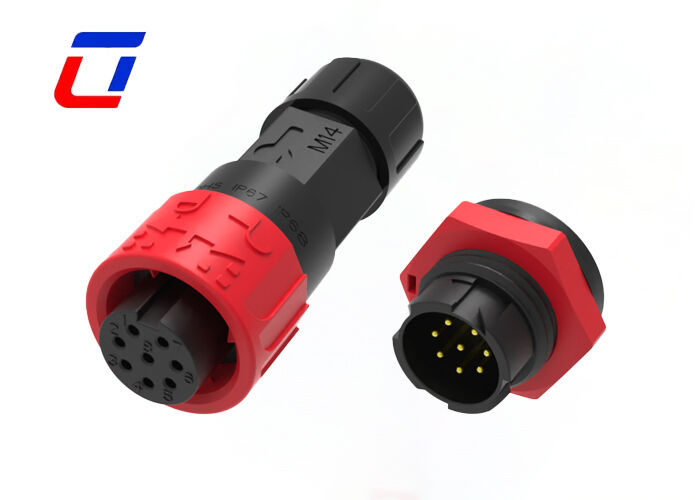

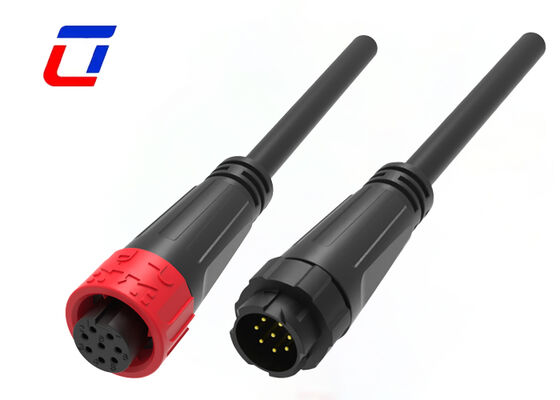

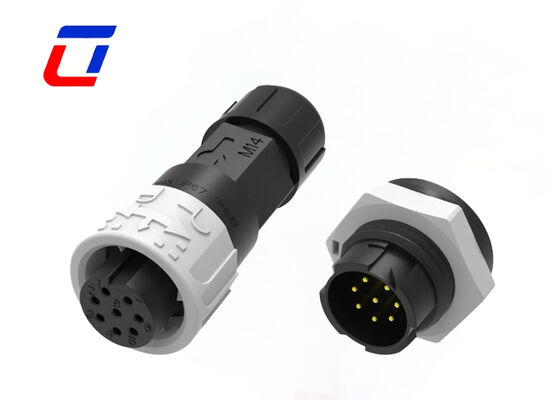

Name: M16 8 Pin LED Wire To Wire/Board Connector 300V Waterproof Landscape Lighting Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof LED Connector

M16 8 Pin LED Wire To Wire/Board Connector 300V Waterproof Landscape Lighting Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,Rohs,TUV,UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export carton
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Material:	PA66	Application:	Power,Automotive,LED,Electrical Equipment,LED Lighting Etc.
Number Of Pins:	8PIN Data Connector	Current/Voltage:	5A/300V
Waterproof Rating:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	M16 8 pin LED connector , waterproof landscape lighting connector , 300V wire to board connector

300V M16 8 Pin IP67 Waterproof Male To Female Connector For Data

Product Overview

PA66 M16 8 Pin Male Female Connectors - Industrial Data Connector for Signal Transmission

M16 8 Pin Waterproof Connector with 5A rating and IP67 protection, featuring quick-release male-female design for industrial signal transmission applications.

Key Features

1. 8 Multi-Channel Pin Design for LED Lighting Control

Engineered specifically for LED landscape lighting systems, this M16 8-pin connector supports 300V low-voltage safe operation. The multi-channel structure enables grouped light control and synchronous signal transmission, effectively avoiding light flickering, color difference and control failure, ideal for complex outdoor lighting projects.

2. Dual Connection Modes: Wire to Wire / Wire to Board

Supports both wire-to-wire and wire-to-board connection, compatible with various LED light boards, light strips and outdoor lamps. Standard M16 size suits panel mounting and external cable docking, greatly improves construction flexibility and simplifies landscape lighting wiring layout.

3. Professional Waterproof Protection for Outdoor Landscape

Adopts high-density sealing structure to resist rain erosion, water immersion, dust accumulation and temperature changes. It prevents pin oxidation, short circuit and poor contact caused by humid outdoor environment, ensuring long-term stable operation of outdoor LED lighting equipment.

4. Weatherproof & Insulated Durable Housing

Made of high-quality weather-resistant engineering plastic with excellent insulation and anti-leakage performance. The modified anti-aging material resists strong sunlight, frost and moisture, preventing cracking, deformation and fading after years of outdoor exposure.

5. Compact & Stable Structure

Featured with mini M16 circular compact size, it realizes hidden installation without affecting the overall appearance of landscape lights. Precise mating ensures firm connection, effectively preventing signal interruption and power failure caused by outdoor vibration and shaking.

Product Specifications

Connector System	Cable-to-Cable/Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	8
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Operating Temperature Range	-40°C to +105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating	500 Cycles
UL Flammability Rating	UL 94V-0

Additional Features

Push lock quick release system for efficient operation
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
Field assembly version with both wire-to-wire and wire-to-board options
Current rated 5A for long-term continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome for specialized requirements

Application Industries

Communications Equipment
Product Coding Machines and Inkjet Systems
Inventory Product Coding
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
