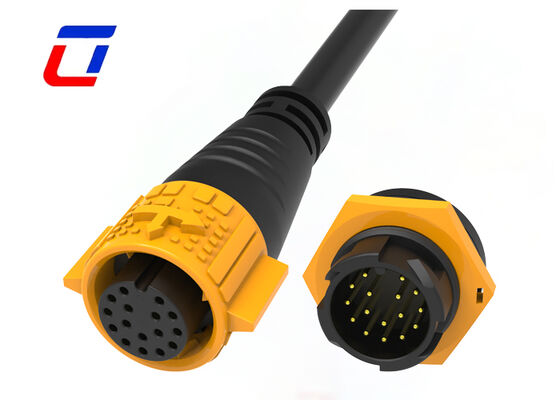

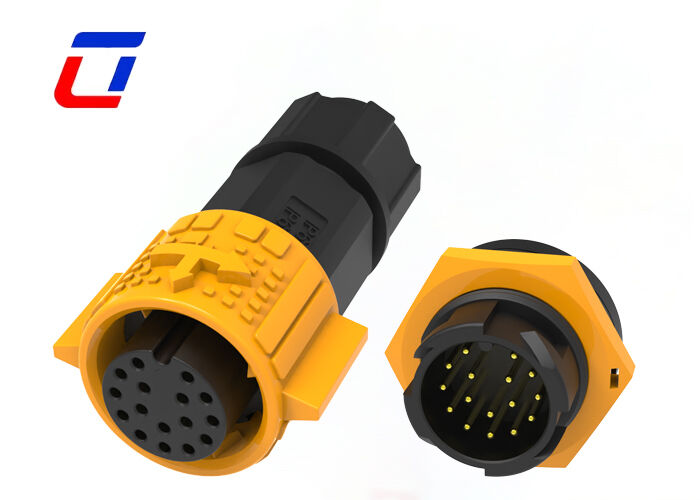

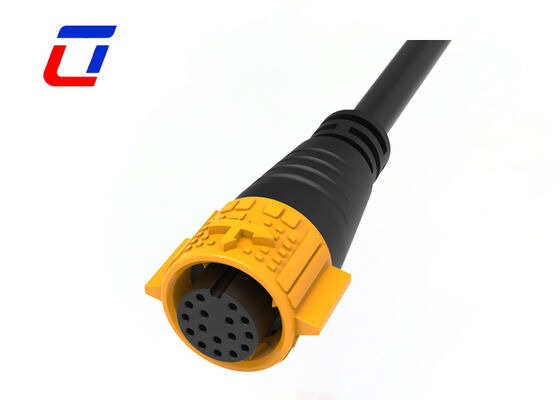

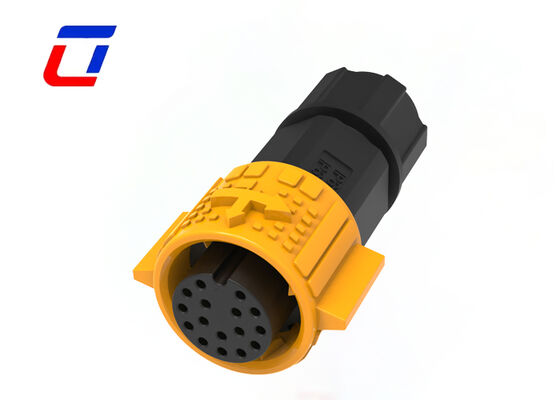

Name: M19 300V 16 Pin Male Female Connector Push Lock IP67 Waterproof Connector Wire To Board
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof LED Connector

M19 300V 16 Pin Male Female Connector Push Lock IP67 Waterproof Connector Wire To Board

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	16 Pin For Data	Rated Voltage:	300V
Material:	Nylon&Brass Gold-Plated	Operating Temperature:	-40℃-+105℃
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	M19 300V waterproof connector , 16 pin push lock connector , IP67 wire to board connector

300V M19 Waterproof Connector 16 Pin Quick Lock Outdoor Data Connectors

The M19 300V 16Pin IP67 wire-to-board connector is a high-density industrial connection solution designed for PCB board mounting integration. Equipped with complete male and female pairs, it features professional wire-to-board docking structure to realize centralized transmission of multiple control and sensor signals. With 300V high voltage insulation capacity, tool-free push locking design and IP67 full waterproof & dustproof performance, this standard M19 connector solves the common defects of traditional board-mounted connectors such as insufficient channels and poor sealing, delivering stable, safe and highly integrated wiring for industrial intelligent electronic control systems.

Product Overview

16-Pin High-Density Multi-Channel Integration: Adopting a rare 16 independent insulated pin layout, the connector supports synchronous transmission of multiple groups of communication, sensor and control signals. It replaces the messy wiring of multiple low-pin connectors, reduces PCB board openings and external interfaces, optimizes internal wiring layout, and greatly improves the integration and aesthetics of smart devices.
300V High Voltage Insulation & Electrical Safety: The thickened integrated insulation structure withstands up to 300V rated voltage, effectively resisting industrial voltage fluctuation, instantaneous high-pressure surge and circuit impact. The anti-breakdown and aging-resistant insulation material prevents electric leakage, short circuit and signal crosstalk, ensuring long-term safe and stable operation of electronic control systems.
Professional Wire-To-Board Docking Design: Optimized for wire and PCB board connection, one end connects with cables while the other matches PCB direct plug-in and soldering installation. It perfectly fits standard mounting positions of various industrial control mainboards and sensor circuit boards, adapting to automated mass production and effectively reducing assembly errors and labor costs.
Tool-Free Push Lock Anti-Vibration Structure: The upgraded push self-locking structure enables automatic locking after insertion and quick release by pressing without threaded operation. It simplifies board-level maintenance and cable replacement procedures. The tightly locked structure provides excellent anti-loosening and anti-tension performance, avoiding intermittent signal failure and poor contact caused by long-term equipment vibration.
IP67 Full Ingress Protection for Harsh Environments: Fitted with high-elastic aging-resistant silicone gaskets, the male and female connectors form a gapless sealed cavity after mating. It fully blocks dust accumulation, rainwater penetration, condensation and light oil corrosion, protecting board-end circuits from moisture oxidation and dust short-circuit in humid, dusty and outdoor working conditions.
Wide-Temperature Weather Resistance & Durability: Made of high-strength modified engineering plastic with weather resistance enhancement, it operates stably from -40℃ to +105℃. With excellent UV resistance, impact resistance and aging resistance, it maintains stable structural and electrical performance under long-term continuous equipment operation, reducing board-level circuit failure rate and extending equipment service life.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
