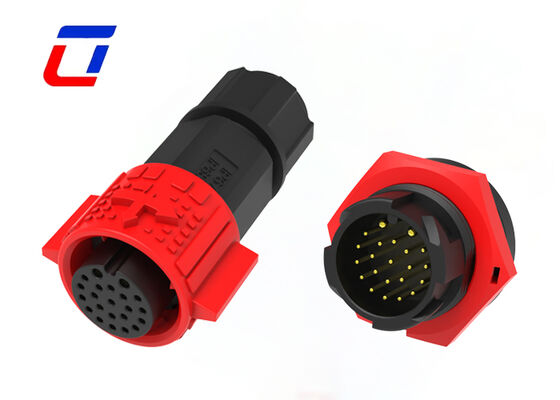

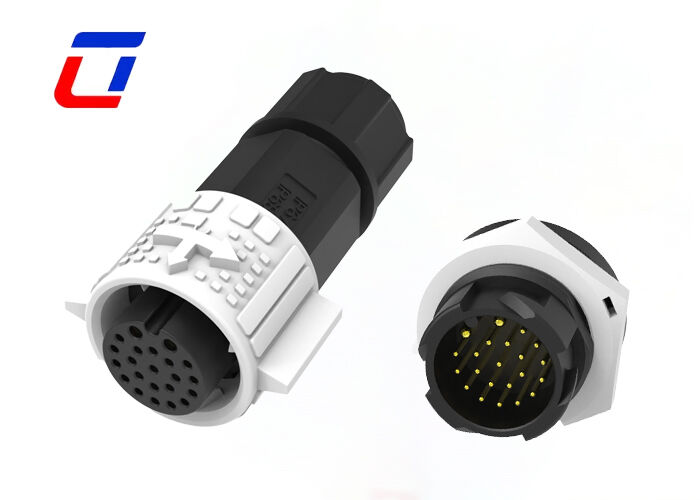

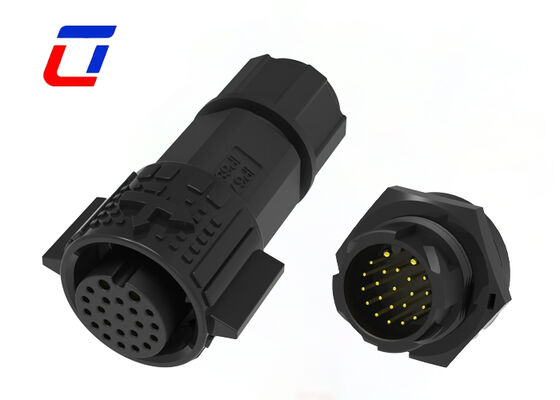

Name: M19 2+20 Circular Multi Pin Connectors Plastic PA66 Power Data Quick Lock Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

M19 2+20 Circular Multi Pin Connectors Plastic PA66 Power Data Quick Lock Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Color:	White Blue Red Black Yellow
Connecting Mode:	Push Lock	Rated Voltage:	300V
Highlight:	M19 circular multi pin connector , PA66 waterproof quick lock connector , power data connector plastic PA66

IP67 20A Waterproof Multi 2 Pin For Power Connectors M19 20 Pin Data Connector

Quick Description

The M19 2+20 multi-pin circular connector is an integrated power and signal hybrid connection component molded with high-quality flame-retardant PA66 material. Featuring a unique 2-power + 20-signal pin separation design, it independently handles main equipment power supply and multi-channel data transmission in one compact connector. Adopting tool-free quick lock structure and industrial weather-resistant design, it effectively solves the wiring chaos and signal interference problems of traditional separate connectors. With stable electrical performance and high integration, it is an ideal wiring solution for compact and high-precision intelligent industrial equipment.

2+20 Independent Power & Signal Isolated Design: Scientific functional pin grouping realizes physical isolation between power circuit and signal circuit. 2 dedicated power pins provide stable main power output for equipment operation, while 20 high-density signal pins transmit multiple groups of sensor, control and communication data synchronously. It completely avoids power load interference and signal crosstalk, ensuring zero-delay and high-precision signal transmission while maintaining stable power supply.
Premium Flame-Retardant PA66 Housing: Integrally molded with modified PA66 engineering plastic, the housing reaches UL94 V-0 flame retardant grade. It features excellent toughness, impact resistance and deformation resistance, resisting daily mechanical extrusion and wire bending. It maintains stable structural performance in -40℃~+105℃ wide temperature range, with outstanding UV aging resistance and chemical corrosion resistance for long-term industrial service.
High-Density Integration Simplifies Complex Wiring: The 20-core ultra-large signal channel capacity integrates dozens of control signals in a single connector, replacing the traditional wiring method of multiple scattered connectors. It greatly reduces equipment mounting holes and external interfaces, optimizes internal harness layout, lowers circuit failure rate, and improves equipment integration and aesthetics.
Tool-Free Quick Lock & Anti-Vibration Performance: Upgraded press self-locking structure enables one-step automatic locking and manual release without tools or thread twisting. It greatly improves mass production assembly and daily maintenance efficiency. The tightly locked structure provides strong anti-loosening and anti-tension capability to adapt to long-term equipment vibration and cable dragging.
High-Precision Terminals for Stable Transmission: Built with high-precision conductive cores with ultra-low contact resistance and excellent oxidation resistance. The power channel features low temperature rise and low power loss under full load, while the signal channel realizes sensitive and stable data transmission without drift or delay, fully meeting the high-standard electrical requirements of precision electronic control systems.
Standard M19 Circular Universal Structure: The compact M19 round size follows industrial general specifications, compatible with most mainstream industrial control and intelligent equipment. It supports embedded, external and panel mounting methods with strong versatility, suitable for both standard and non-standard equipment supporting wiring.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	2+20pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

3. Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
