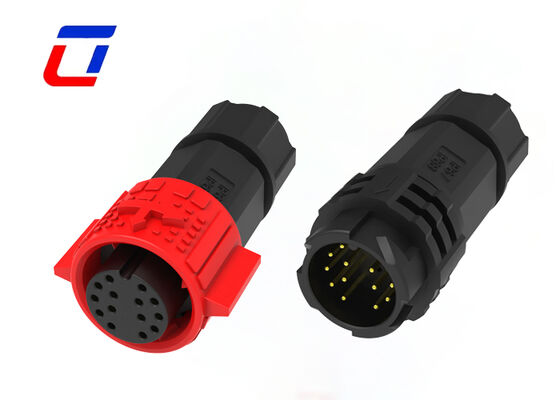

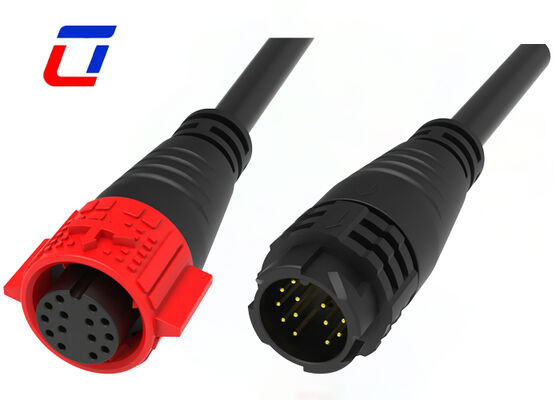

Name: M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof LED Connector

M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin Data Connector	Gender:	Male To Female Quick Lock
Current Rating:	5A	Flame-resistant Rating:	UL94-V0
Material:	Nylon	Protection Level:	IP67 Waterproof
Highlight:	M19 5A waterproof lighting connector , 14 pin outdoor waterproof connector , push locking LED connector

Quick Lock 14 Pin Male Female Connector M19 300V Data Connectors Waterproof

Quick Description

The M19 14Pin 5A low-current waterproof connector is a high-density multi-channel connection solution exclusively designed for outdoor lighting and landscape illumination systems. Optimized for low-current and low-voltage weak power working conditions, it features a rated 5A stable current output and 14-pin integrated layout to realize centralized control of multi-circuit lighting signals. Adopting tool-free Push Lock self-locking design and IP67 outdoor waterproof grade, it is built with UV-resistant weatherproof housing to withstand harsh outdoor climates. It greatly simplifies complex lighting wiring and serves as an ideal standardized connector for large-scale outdoor lighting projects.

5A Low-Current Precision Output for Lighting Weak Power: Professionally optimized for low-voltage LED lighting systems, the connector provides stable 5A low-load current output. It effectively avoids lamp strobing, light decay and overload burnout caused by excessive current, perfectly matching the long-term low-power continuous operation mode of outdoor lighting equipment with safe and balanced power transmission.
UV & Weather Resistant Housing for Outdoor Durability: Adopting outdoor-grade modified weatherproof plastic with enhanced anti-UV treatment, the housing resists long-term sun exposure, rain erosion and extreme temperature changes from -40℃ to +105℃. It prevents yellowing, cracking and aging, maintaining stable structural performance for year-round outdoor lighting operation.
IP67 Full Waterproof Protection for All-Weather Outdoor Use: Equipped with high-elastic aging-resistant silicone gasket, the connector achieves gapless sealing after mating. It blocks rainwater, snow, dust and condensation infiltration, preventing short circuits and lamp damage in fully exposed outdoor landscape lighting scenarios.

Widely applied to outdoor LED lighting projects, building facade illumination, garden landscape lights, urban lighting control systems, intelligent street lamps, outdoor light strips and fountain lighting systems. Perfect for outdoor low-voltage lighting scenarios requiring multi-channel centralized control, weather resistance and standardized batch engineering wiring.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available

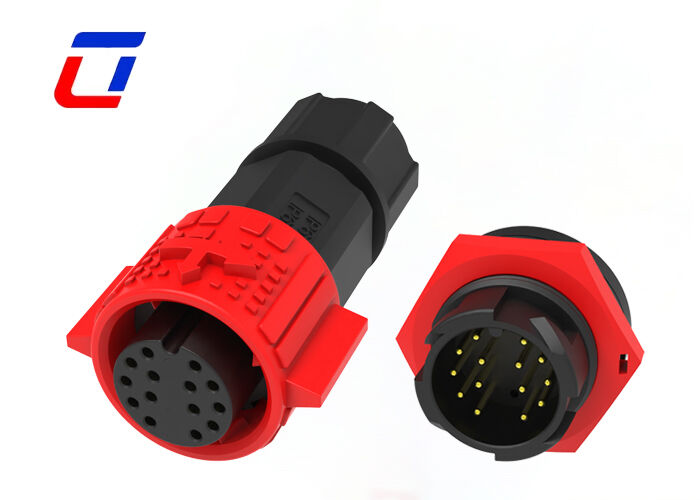

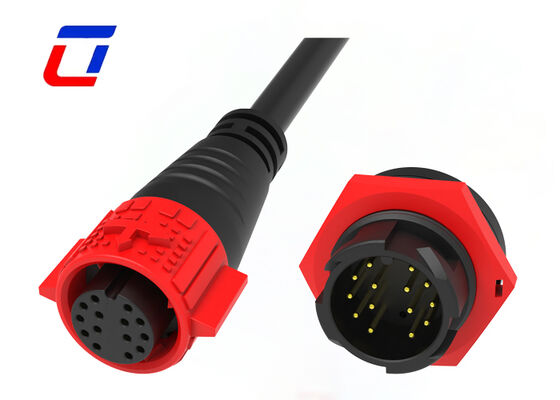

Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	14Pin
Current Rating	5 Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector 2
