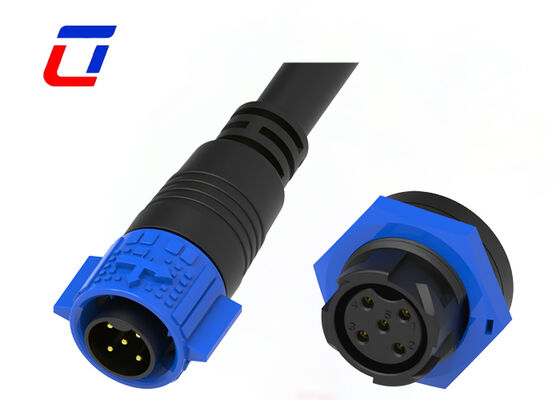

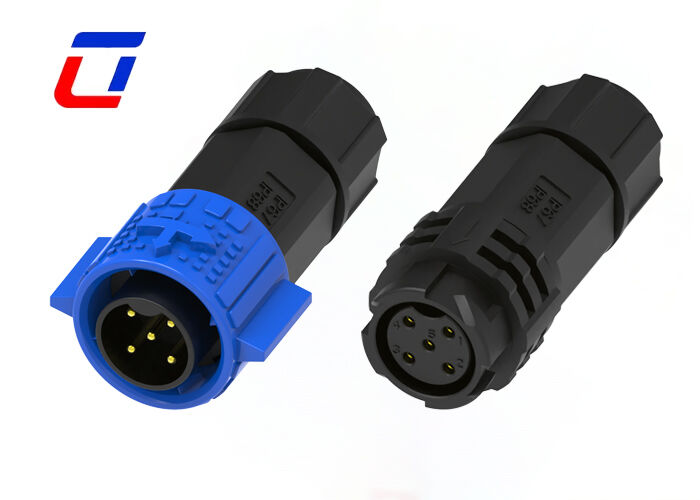

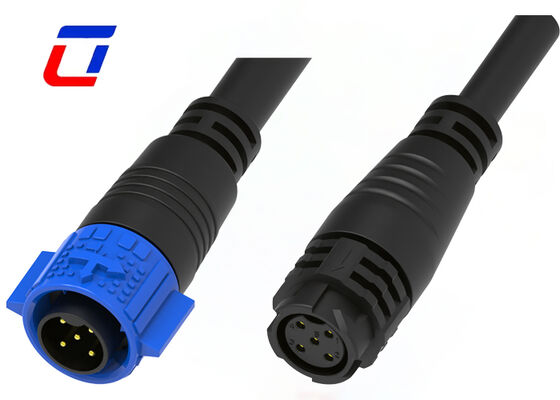

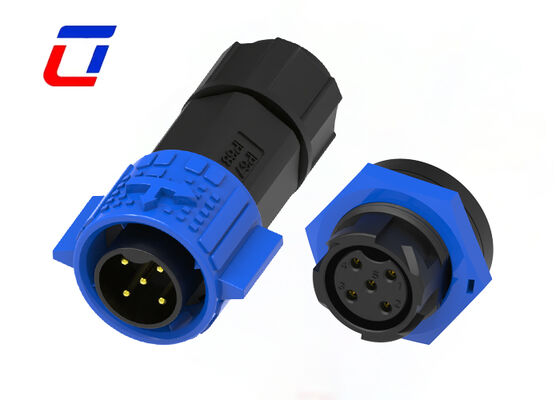

Name: M19 5 Pin 20A Power DC Waterproof Connector Push Locking Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

M19 5 Pin 20A Power DC Waterproof Connector Push Locking Male Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	5 Pin Power Connector	Rated Voltage:	300V
Material:	Nylon	Flame-resistant Rating:	UL94-V0
Operating Temperature:	-40℃~+105℃	Gender:	Male To Female
Highlight:	M19 waterproof power connector , 20A push locking connector , 5 pin DC connector

5 Pin Circular M19 PA66 300V Male To Female Waterproof Power Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

The M19 5Pin 20A DC Waterproof Connector is an industrial-grade mating connection component specially designed for high-power DC power supply systems. Equipped with complete male and female pairs, it supports stable 20A large current transmission and meets the dual requirements of high-power DC power supply and auxiliary signal transmission. Adopting a tool-free Push Lock self-locking structure, it enables fast plug-and-play assembly. With IP67 all-weather waterproof and dustproof performance and wide temperature resistance, this standard M19 connector delivers stable electrical performance and strong environmental adaptability, serving as a reliable standardized wiring solution for DC industrial control and outdoor electromechanical equipment.

20A High Current DC Low-Loss Transmission: Optimized for DC power supply scenarios, the connector adopts thickened and widened conductive terminals to expand conductive area. It supports continuous 20A rated current operation with low temperature rise and minimal power loss. It effectively avoids heating, voltage drop and power interruption under heavy load, ensuring long-term stable operation of high-power DC equipment.
Universal 5-Pin Integrated Layout: The well-arranged 5 pins with independent insulation isolation support dual working modes of pure DC power supply and power + signal hybrid transmission. It prevents circuit crosstalk and short-circuit risks, and is highly compatible with mainstream M19-spec DC electromechanical devices and intelligent controllers for standardized batch wiring.
Tool-Free Push Lock Anti-Vibration Structure: Upgraded threadless push-lock design realizes automatic locking after insertion and easy release by pressing. It greatly simplifies assembly and maintenance procedures. The tightly locked structure provides excellent vibration and pull resistance, eliminating hidden troubles of poor contact and loose connection caused by long-term equipment operation and cable tension.

Electrical Parameters
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Is there a discount for large - quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
