Name: 300V M19 3+2 Pin Power And Signal Connectors Multi Pin Connectors Waterproof Supplier
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

300V M19 3+2 Pin Power And Signal Connectors Multi Pin Connectors Waterproof Supplier

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2 Multi Pin	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Color:	Black Blue White Red Yellow
Type:	Waterproof Power&signal Quick Connector	Housing Material:	Plastics PA66
Highlight:	300V waterproof multi pin connector , M19 waterproof signal connector , 3+2 pin waterproof power connector

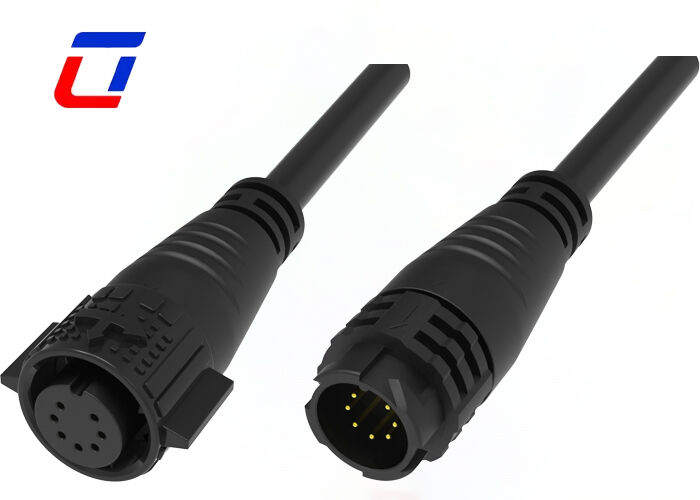

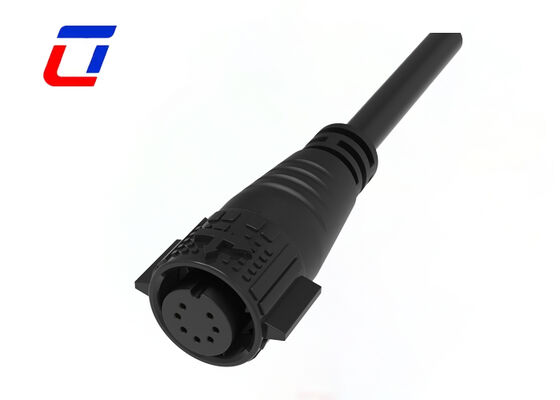

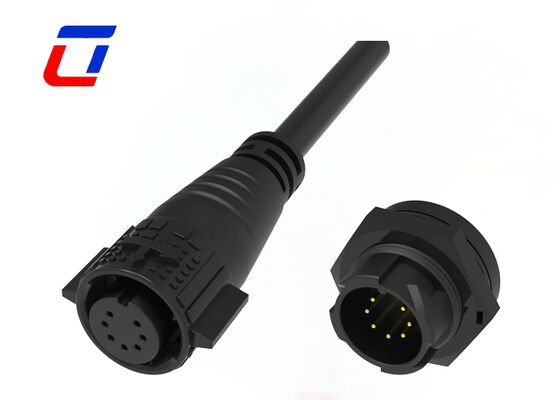

M19 Plastic Male Female Connectors 3+2 Pin Circular Power And Signal Connector

As a factory-direct multi-functional composite connector, the 300V M19 3+2Pin waterproof connector features a separated power and signal pin layout, realizing integrated power supply and precise data transmission in one compact unit. Adopting a thread-free Push Lock self-locking structure, it delivers efficient tool-free assembly and excellent anti-loosening performance. Equipped with gold-plated brass contact pins and featuring a wide temperature resistance range and IP67 full waterproof rating, this industrial-grade connector boasts stable electrical performance and strong environmental adaptability, serving as a reliable bulk supply solution for industrial control and outdoor intelligent equipment.

Product Overview

Gold-Plated Brass Pins for Anti-Oxidation & Stable Conductivity: The core contact pins adopt high-purity brass base with precision gold-plated treatment. Different from ordinary tin-plated terminals, it effectively avoids oxidation, poor contact and signal attenuation after long-term operation. With ultra-low internal resistance and stable fitting performance, it maintains consistent power and signal transmission even after frequent plugging and long-time electrification, greatly extending product service life.
3+2 Separated Power & Signal Dual Design: The optimized pin structure divides 3 pins for independent power transmission and 2 pins for dedicated signal transmission. Physical isolation between strong and weak current completely eliminates signal crosstalk and data distortion caused by power fluctuation. The all-in-one design simplifies equipment port layout and reduces overall matching costs.
300V High Withstand Voltage for Industrial Safety: Adopting thickened industrial insulation material and layered insulation technology, the connector supports up to 300V rated voltage. It resists instantaneous high voltage impact and daily voltage fluctuation, preventing insulation breakdown and electric leakage, fully meeting the safety standards for long-term continuous operation of industrial electrical equipment.
Ultra-Wide Temperature Resistance (-40℃~+105℃): Optimized with modified temperature-resistant materials, the connector operates stably in an extreme temperature range from -40℃ low temperature to +105℃ high temperature. It avoids embrittlement and cracking in cold environments, and resists softening and aging under high-temperature working conditions, adapting to outdoor sun exposure, frost and high-temperature equipment cabin operation.

Main Features

Push lock quick release systemMultiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power

Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin

Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin

Field assembly version with wire-to-wire and wire-to-board options

20A current rating for continuous operation

Cable assembly service and OEM/ODM support available

Technical Specifications

Specification Category	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	IP67 (Dust Level 6)
Operating Temperature	-40°C to 105°C
Durability Rating	250-251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications EquipmentProduct Coding MachinesInventory Product Coding SystemsInkjet SystemsSolar SystemsIndustrial Inkjet EquipmentElectric Power EquipmentLaboratory Forensic & Pathology EquipmentHeavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material and contact spacing. Some components may not function properly below their rated voltage.

Q2: Is there a discount for large-quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please provide your expected quantity for a customized quotation.

Q3: Can I have custom label?

A3: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
