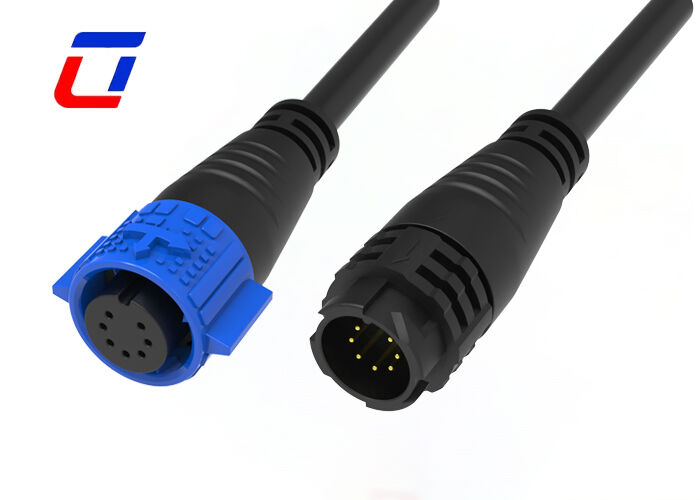

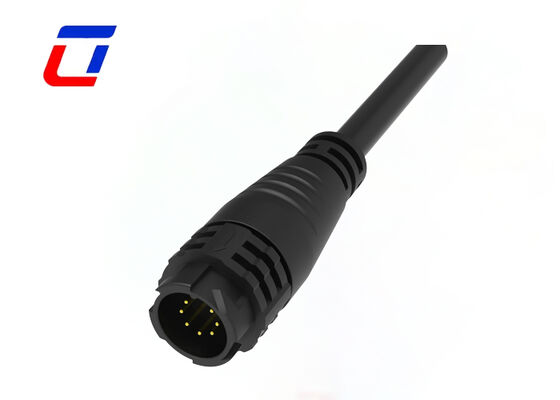

CE Certified M19 7Pin Outdoor Waterproof Connector LED Control IP67 Molded Cable Connectors

7 Pin Male Female Connector M19 Wire To Wire/Board Outdoor LED Connectors

Quick Description

CE-certified M19 7-pin molded cable waterproof connector is customized for outdoor LED lighting control systems. Built with integrated molded cable and thread-free Quick Lock self-locking mechanism, it supports simultaneous low-voltage power and multi-channel control signal transmission via 7 separated pins. Complying with IP67 ingress rating, this connector passes EU safety standards and serves as a standard wiring accessory for global outdoor lighting projects.

CE Approved for Smooth Global Shipment
With full CE certification, all electrical parameters comply with EU safety directives. Clients avoid extra certification fees, making it ideal for bulk export orders and international lighting bidding projects across Europe and other regions.
Integrated Molded Cable Improves Pull & Bend Resistance
Seamless injection molding eliminates gaps between plug and wire. The cable tail withstands frequent bending and pulling during field wiring, effectively preventing water infiltration and wire breakage for long-term outdoor LED deployment.
7-Pin Layout for Multi-Zone LED Control
Seven isolated pins enable grouped dimming and partition switch control for LED fixtures. One single connector replaces multiple tiny joints to simplify internal wiring layout of lighting controllers.
Tool-Free Quick Lock Cuts On-site Installation Time
Push-to-lock buckle locks automatically after insertion and releases by simple pressing. No threading or extra tools needed for high-altitude lamp wiring; tight clamping prevents loose connection caused by fixture vibration and cable tugging.
IP67 Tight Sealing Against Harsh Outdoor Climate
Integrated silicone gasket achieves gapless sealing once locked, shielding inner pins from rain splash, dust and condensation. Reliable for long-term use on facade LED strips, garden lamps and streetlight control units.
Standard M19 Dimension for Wide Compatibility
Standard M19 outer diameter fits mainstream LED driver housing holes, facilitating easy replacement and renovation of existing lighting equipment without new mold opening.

Main Features

• Push lock quick release system
• Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
• 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
• 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available

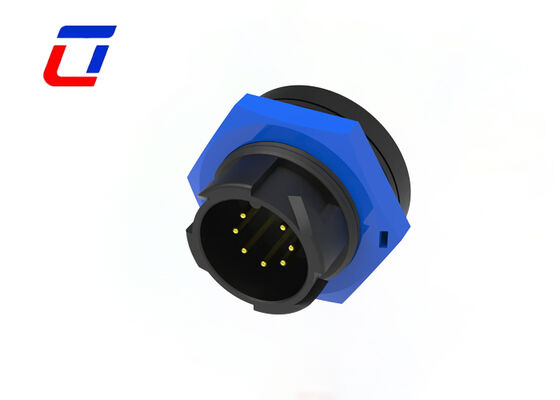

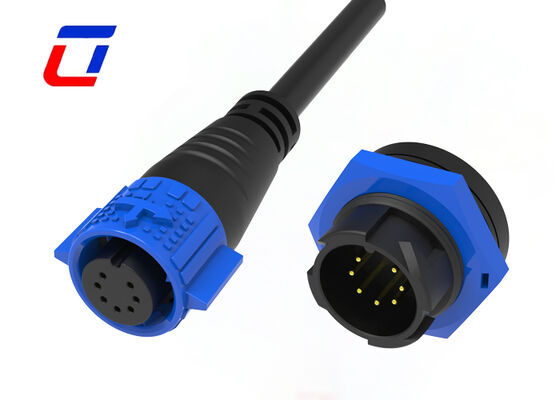

• Field assembly version:both wire to wire and wire to board options
• Current rated 5A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

Application industries

• Growth Lights
• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
