Name: 3+9 Pin M25 15+5A Circular Panel Mount Connector Outdoor Waterproof Connector Factories
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Outdoor Waterproof Connector

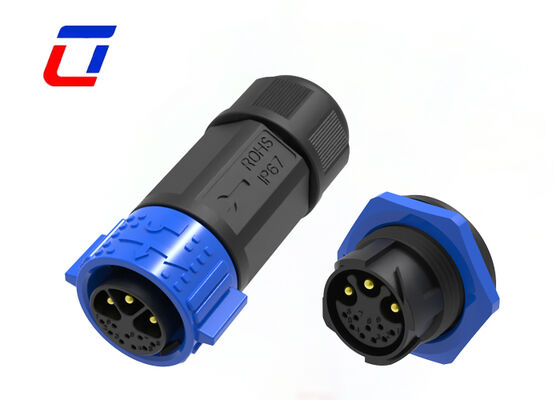

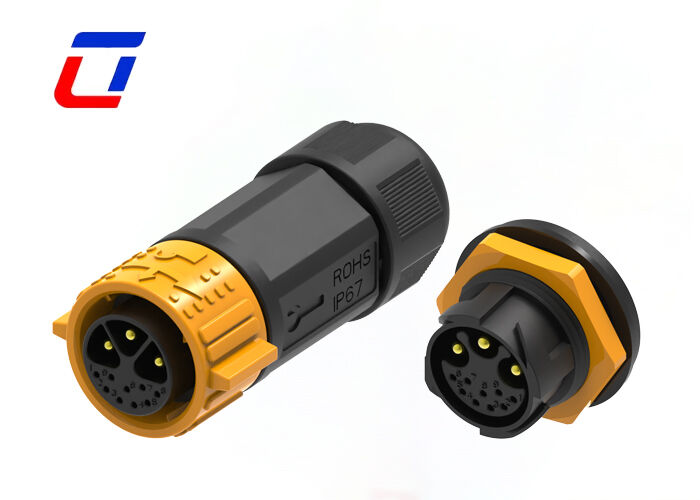

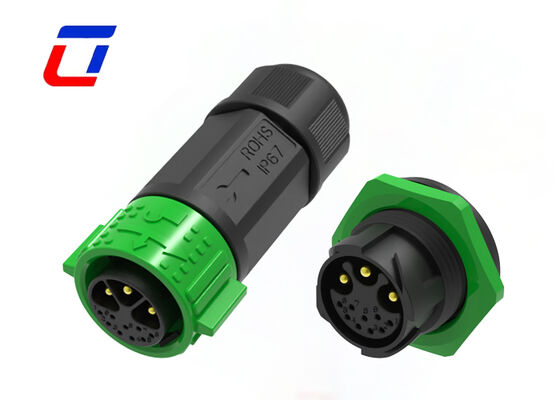

3+9 Pin M25 15+5A Circular Panel Mount Connector Outdoor Waterproof Connector Factories

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:

3+9 PIN Power And Signal

Waterproof Rating:

IP67

Temperature Range:

-40℃~+105℃

Material:

Nylon

Highlight:

M25 circular waterproof connector

15+5A panel mount connector

outdoor waterproof circular connector

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Quick Details of 6Pin Connector Male female

3+9 Pin Dual-circuit Design for Integrated Power & Signal Transmission: The optimized pin configuration supports independent 15A high-current power transmission via 3 pins and 5A multi-channel signal transmission via 9 pins. The separated strong and weak current circuits avoid mutual interference, ensuring stable power output and synchronous transmission of multiple control and sensor signals for complex electronic control systems.
Tool-free Quick Self-locking Connection: Equipped with elastic buckle self-locking structure, the connector realizes automatic clamping and firm locking after plugging without thread rotation or auxiliary tools. It supports smooth plugging and effortless unlocking, greatly improving installation and maintenance efficiency for factory mass assembly and daily equipment inspection.
Stable Panel Mount Structure for Integrated Equipment Installation: Adopting dedicated embedded panel mounting design, it features accurate positioning and firm fixation. It fits closely with equipment control panels and cabin walls without occupying external space, realizing neat and integrated equipment layout. Compatible with standard opening sizes of most industrial equipment and precision instruments, it is highly suitable for mass industrial production.
IP67 Full Sealing Protection for All-Weather Outdoor Use: Built with high-elasticity integrated silicone sealing ring, the connector achieves gapless fitting after self-locking. It provides excellent dustproof, waterproof and moistureproof performance, effectively resisting rain erosion, dust accumulation, dew and slight oil pollution. It maintains stable performance in open-air, workshop and outdoor cabin environments all year round.
Industrial-grade Weather Resistance & Vibration Durability: The high-toughness flame-retardant housing features superior insulation, impact resistance and deformation resistance. Optimized for vibrating operating conditions, the tight self-locking buckle structure prevents loosening after long-term vibration. With excellent UV resistance, aging resistance and corrosion resistance, it ensures long-term stable service life in harsh industrial scenarios.

Product Type Features
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features
Number of Positions	3+9
Number of Signal Positions	9
Contacts Preloaded	Yes
Electrical Characteristics
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Features
Contact Current Rating (Max) (A) .	15A max.
Circular Connector Contact Type	Pin-Socket
Mechanical Attachment
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Dimensions
Wire Size (AWG)	20AWG,18AWG,16AWG,14AWG,
Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Industry Standards
UL Flammability Rating	UL 94V-0

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:How can I get samples?

A2: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

D*k

United States Sep 10.2025

Helpful (2312)

The pre-sales team helped us confirm the voltage and interface size, avoiding wrong purchases. After-sales is also reliable, they sent replacement parts quickly when we needed a few extra. Great supplier, will cooperate long-term.

A*y

Brazil Jun 1.2025

Helpful (1826)

The pre-sales team was really helpful, they explained the specs clearly and helped us pick the right model. After delivery, they even followed up to ask about the usage, which made us feel very reliable. Will definitely reorder for our next batch of equipment.

S*s

Australia Mar 24.2025

Helpful (970)

These connectors handle Aussie weather really well—sun, salt air, rain. No corrosion, no loose connections. Great quality, great service, repeat customer for life.
