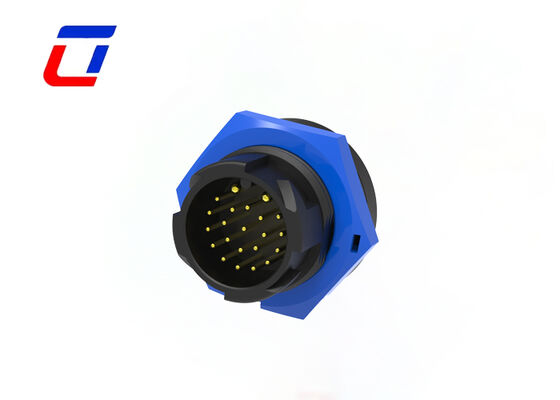

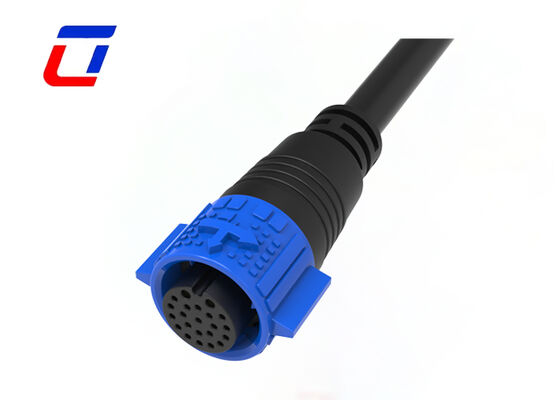

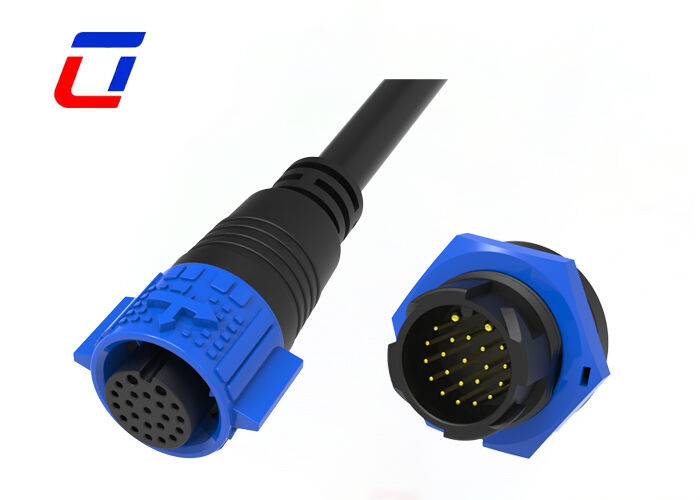

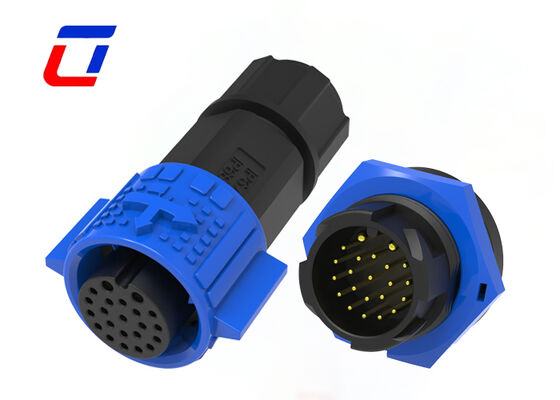

Name: 2+20 Pin M19 Molded Cable Connectors Industrial Waterproof Power Data Connector Made In China
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

2+20 Pin M19 Molded Cable Connectors Industrial Waterproof Power Data Connector Made In China

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Flame-resistant Rating:	UL94-V0	Material:	PA66&Copper Alloy
Protection Level:	IP67	Rated Voltage:	300V
Connector Type:	Self-locking Male To Female	Sealing Material:	Waterproof O-Ring
Highlight:	M19 waterproof cable connector , 2+20 pin industrial connector , Molded power data connector

15A+5A Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors

Product Overview

Waterproof Multi 2 Pin For Power Connectors M19 300V Push Locking 20 Pin Data Connector

Key Features

Specification: M19 standard, 2+20 pin separate design, meeting both power supply and data transmission needs
Protection: Industrial-grade waterproof, resistant to outdoor rain, dust and oil, suitable for harsh industrial environments
Structure: Molded integrated forming, stronger sealing, not easy to fall off, improving connection reliability
Transmission: Separate transmission of power and data, stable signal without interference, safe and efficient power supply
Quality Assurance: Made in China, material is high and low temperature resistant, impact resistant, suitable for long-term stable industrial use
Application: Widely used in various industrial equipment to realize synchronous connection and transmission of power and data

Application Industries

Growth Lights Communications Equipment Product Coding Machines Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Equipment Heavy Machinery

Electrical Specifications

Number of Poles	22-pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	20A maximum
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Product Design

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also customize materials according to your requirements.

Do you support product customization?

Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
