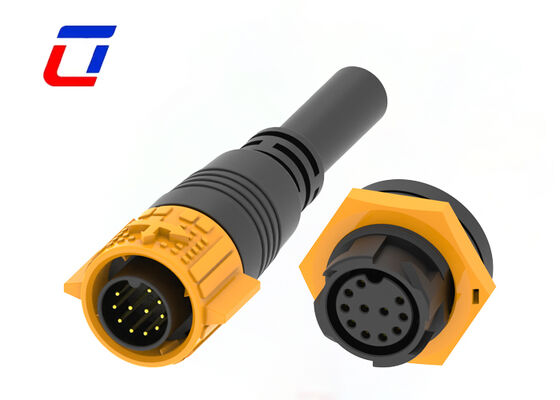

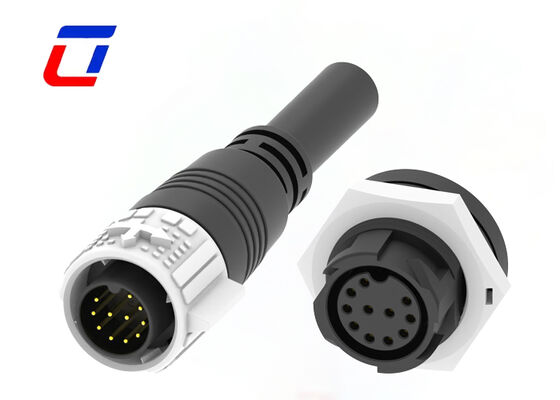

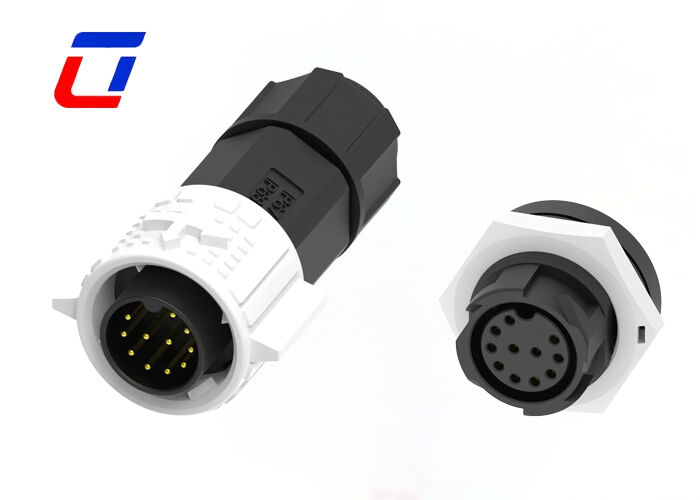

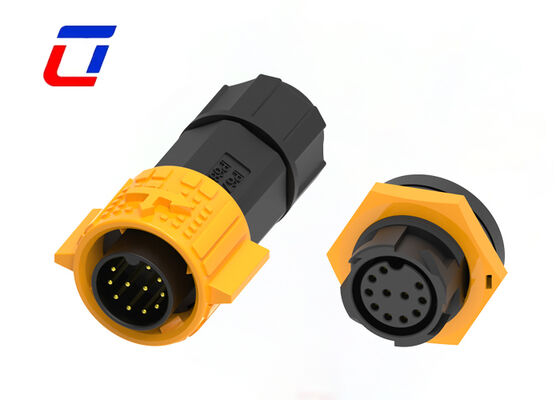

Name: PA66 M19 11 Pin Panel Mount Circular Connector Quick Lock IP67 Signal Connectors Waterproof
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

PA66 M19 11 Pin Panel Mount Circular Connector Quick Lock IP67 Signal Connectors Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Gender:	Male To Female Plug&Socket	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Application:	Instruments & Meters	Temperature:	-40~105℃
Highlight:	PA66 M19 waterproof signal connector , 11 pin panel mount circular connector , IP67 quick lock waterproof connector

M19 11Pin IP67 Connector Push Lock Industrial Plug Socket For Data

PA66 M19 11 Pin Panel Mount Circular Connector is a professional signal connector integrated with quick-lock structure and IP67 waterproof performance, specially designed for signal transmission needs in industrial scenarios. With high-quality materials, precise structure and reliable protection, it provides a stable and safe solution for panel-type signal connection of various equipment, and is widely suitable for outdoor and complex industrial environments.

Adopting the standard M19 specification design with an 11-pin layout, it accurately matches the multi-channel signal transmission needs, and can efficiently and stably transmit industrial control signals, detection signals, sensing signals, etc. The pins are made of high-conductivity copper alloy with gold plating, featuring extremely low contact resistance and low transmission loss, which effectively avoids signal interference, signal attenuation and poor contact, ensures the accuracy and real-time performance of signal transmission, and guarantees the stable operation of equipment. The rated working current can reach 5A, and the rated voltage is 300V, which is suitable for medium and low-power signal transmission scenarios, taking into account the stability and safety of signal transmission.

The shell is integrally formed of high-quality PA66 engineering plastic, which has excellent impact resistance, vibration resistance, UV resistance, high and low temperature resistance and corrosion resistance. The flame retardant grade reaches UL94 V-0, which can withstand severe vibration, accidental collision during industrial equipment operation, and alternating high and low temperature environments of -40℃~105℃. It is not easy to age, deform or crack, greatly extending the service life of the product and reducing the later maintenance cost. It has outstanding protection performance, reaching IP67 waterproof and dustproof level, combined with a double-layer precision silicone sealing ring design, which can effectively block the intrusion of rainwater, dust, oil, fog and other impurities. Even in harsh working conditions such as humidity, dust and outdoor rain, it can ensure that the internal circuit is not damaged and the signal transmission is not interrupted.

It adopts a convenient panel mount design, suitable for equipment panels of various thicknesses. The installation process is simple and efficient, no complex professional tools are required, and fixing and wiring can be completed quickly, adapting to the rapid installation needs of industrial sites. Equipped with a quick-lock structure, it is smooth in plugging and unplugging and firm in locking. It can complete connection and locking with a light press, effectively preventing loose connection or falling off caused by equipment vibration and external pulling, and facilitating later disassembly and maintenance, greatly improving on-site work efficiency. The product complies with multiple international certification standards such as UL, CE and ROHS, with reliable quality. It is widely used in industrial automation, instruments and meters, outdoor monitoring, construction machinery, intelligent equipment and other fields. As a panel-type signal connection interface, it provides stable guarantee for signal interaction between equipment. At the same time, it can provide personalized customization services according to customer needs to adapt to the use needs of different scenarios.

Main Features

Push lock quick release system

Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power

3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined

6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available

Field assembly version: both wire to wire and wire to board options

Current rated 5A for long time working

Cable assembly service supported, welcome to custom

OEM/ODM welcome

Electrical Parameters

Number of Poles	11Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights

Communications Application

Product coding machines

Inventory product coding

Inkjet systems

Solar System

Industrial inkjet equipment

Electric power equipment

Laboratory forensic & pathology equipment

Communications equipment

Heavy machinery

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

How do you guarantee product quality?

We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.

How to buy your products?

You need to do as followings:

Confirm Current Rating and Number of Contacts

Confirm Assembly style

Confirm Cable Wire gauge

Confirm Cable Length and Material

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
