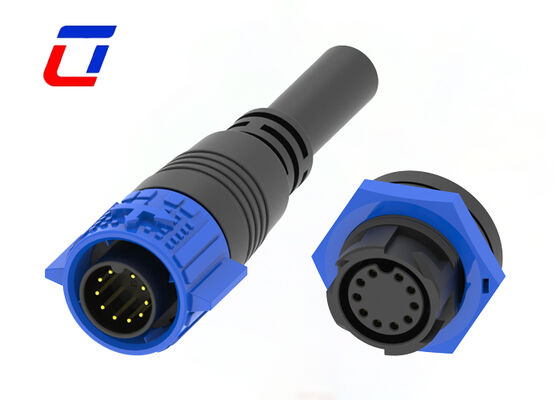

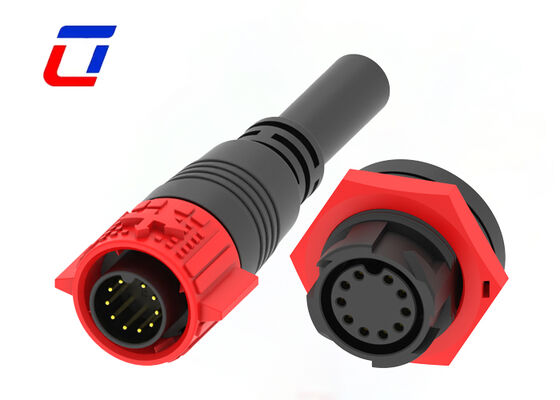

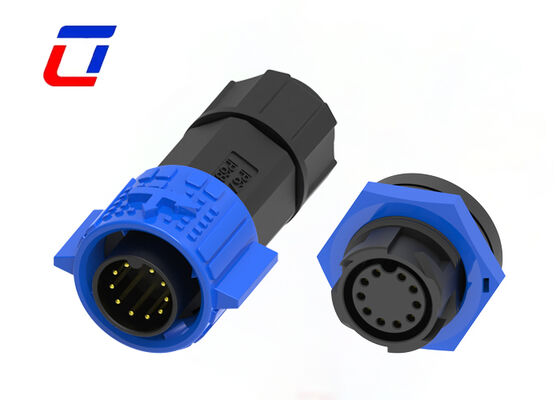

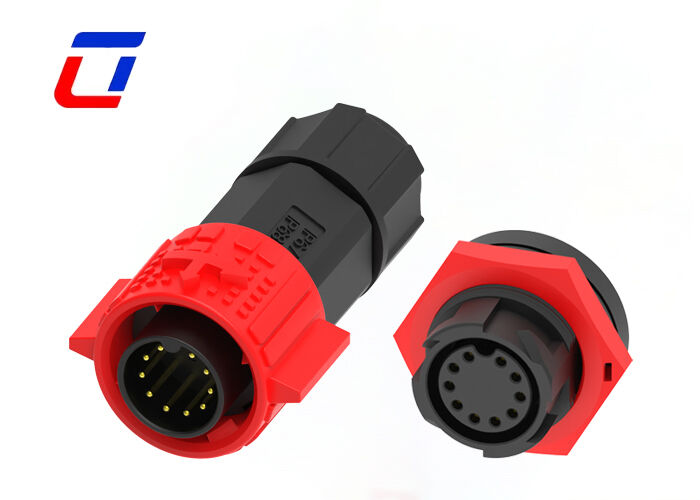

Name: M19 IP67 Waterproof Male Female Connector PA66 10 Pin Data Connector ODM
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

M19 IP67 Waterproof Male Female Connector PA66 10 Pin Data Connector ODM

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	Nylon	Current Rating:	5A For Data
Rated Voltage:	300V	Type:	Plug/Socket
Mechanical Functions:	Anti-Misinsertion	Contact Material:	Brass Gold-Plated
Highlight:	10 pin waterproof data connector , PA66 waterproof male female connector , ODM IP67 waterproof connector

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors

Quick Description

M19 IP67 Waterproof Male Female Connector, made of PA66 material, is a 10-pin data connector specially designed for industrial scenarios, supporting ODM customization services. With excellent waterproof and dustproof performance, stable data transmission capability and robust structural design, it is suitable for various outdoor, humid and complex industrial environments, providing safe and reliable connection guarantee for data interaction between devices.

Adopting the standard M19 specification design with a 10-pin layout, it accurately matches the medium and high-frequency data transmission needs. The pins are made of high-conductivity copper alloy with precision gold plating, featuring extremely low contact resistance and low transmission loss. It can efficiently and stably transmit various industrial control signals, detection data, etc., avoiding data loss, signal interference and other problems caused by poor contact, and ensuring the accuracy and real-time performance of equipment data interaction. The rated working current can reach 5A, and the maximum rated voltage is 300V, which takes into account both data transmission and small-scale power supply needs, adapting to multi-scenario applications.

It has outstanding waterproof and dustproof performance, reaching IP67 protection level, combined with a double-layer silicone sealing ring design, which can completely block the intrusion of rainwater, dust, oil, fog and other impurities. It can work normally even in an environment of 1 meter underwater for 30 minutes continuously, adapting to harsh working conditions such as outdoor, humid and dusty environments. The shell is made of high-quality PA66 engineering plastic, which has excellent impact resistance, vibration resistance, UV resistance, high and low temperature resistance. The flame retardant grade reaches UL94 V-0, which can withstand severe vibration, accidental collision and alternating high and low temperature environments (-40℃~125℃) during the operation of industrial equipment, not easy to age and deform, greatly extending the service life of the product and reducing maintenance costs.

Adopting male-female pairing design, it is smooth in plugging and unplugging with precise positioning, combined with a thread-type locking structure, which is firm and reliable after connection, effectively preventing loose connection or falling off caused by equipment vibration and external pulling, and ensuring the continuity of data transmission. It is easy to install, no professional and complex equipment is required, wiring is done through screw terminals, adapting to various installation methods, and on-site installation and maintenance can be completed quickly. It supports ODM customization services, and can customize the number of pins, wiring methods, shell color, protection level upgrade, etc. according to customers' specific needs, meeting the personalized connection needs of different industrial equipment. The product is widely used in industrial automation, outdoor monitoring, intelligent equipment, construction machinery, instruments and meters and other fields, complying with international certification standards such as UL, CE and ROHS, with stable quality, and can be long-term adapted to data transmission needs in various complex industrial scenarios.

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

M19 IP67 Waterproof Male Female Connector PA66 10 Pin Data Connector ODM 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

3. Q: How to buy your products?

A: You need to do as followings:

* Confirm Current Rating and Number of Contacts

* Confirm Assembly style

* Confirm Cable Wire guage

* Confirm Cable Length and Material.
