Name: M19 300V Molded LED Control Quick Connector 14 Pin Waterproof Outdoor Cable Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

M19 300V Molded LED Control Quick Connector 14 Pin Waterproof Outdoor Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Color:	Blue,red,yellow,black,white
Sealing Material:	Sealing Gasket	Electrical Functions:	Signal Transmission
Highlight:	M19 300V waterproof cable connector , 14 pin LED control connector , outdoor molded quick connector

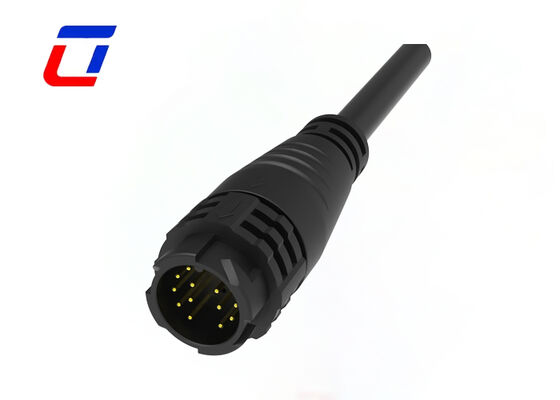

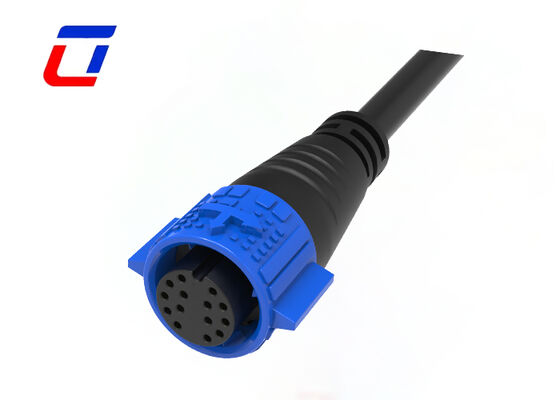

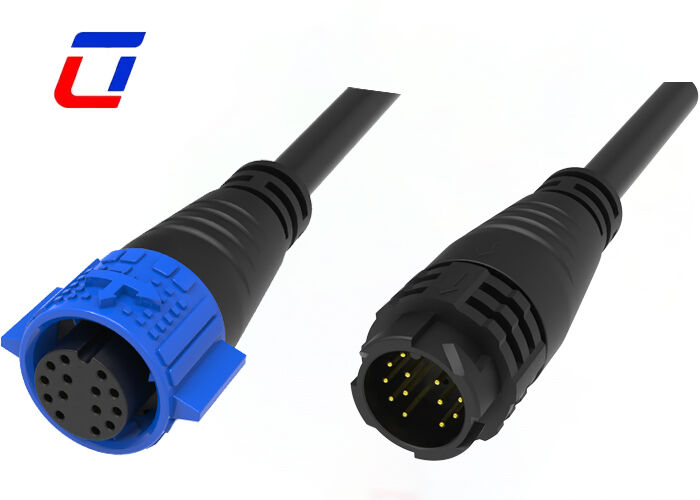

14 Pin Male Female Connector M19 300V Cable Connectors Waterproof

Quick Description

LED Control-Specific Configuration & Core Parameters: Adopts standard M19 circular package with 14 Pin precise partition layout, specially designed for outdoor LED control systems. Rated voltage 300V, suitable for synchronous transmission of LED drive and control signals. The pin core partitions are responsible for LED power supply, dimming and signal control, eliminating crosstalk, and accurately matching the integrated control and power supply needs of outdoor LED lamps, LED displays, LED landscape lighting and other equipment, balancing efficient transmission and control accuracy.
Advantages of Molded Integrated Technology: Adopts professional molding technology, integrating the cable and connector shell into one piece by injection molding. Different from ordinary assembled connectors, it has better sealing performance and more solid structure, which can effectively avoid loosening and water ingress at the connection between the cable and the connector. With the support of molding technology, the connector has excellent tensile and bending resistance, adapting to complex outdoor wiring conditions such as pulling and bending, and it is not easy to have cable falling off and poor contact during long-term use.
Outdoor-Grade IP67 Waterproof Protection: Optimized for harsh outdoor environments, adopts fully sealed molded sealing structure with weather-resistant fluororubber sealing ring, reaching IP67 protection level, realizing complete dustproof and 30-minute short-term immersion protection in 1-meter deep water. It can effectively resist outdoor rain, dew, dust, ultraviolet rays and slight corrosive media erosion, eliminate LED control signal interruption and power supply failure caused by environmental factors, and ensure stable operation of outdoor LED equipment.
Material & Electrical Performance Adaptation: The shell is made of weather-resistant PA66 reinforced nylon material, processed by glass fiber modification and anti-UV treatment, complying with UL94 V-0 flame retardant grade, with a wide temperature resistance range of -40℃~105℃, anti-aging, impact resistance and corrosion resistance, adapting to harsh outdoor environments such as long-term exposure to the sun and alternating high and low temperatures. The contacts are made of high-conductivity brass with gold plating, contact resistance ≤10mΩ, insulation resistance ≥500MΩ, withstand voltage 500V AC/1min, with stable electrical performance, reducing LED control signal attenuation and ensuring accurate transmission of dimming and control commands.
Quick Connection & Application Scenarios: Adopts quick plug-in design with anti-misplug positioning structure, which can be docked and disassembled manually without special tools, greatly improving the installation and maintenance efficiency of outdoor LED equipment. Supports wire-to-wire molded connection, adapting to 0.5-2.5mm² LED special cables, widely used in outdoor LED landscape lighting, LED street lights, LED displays, LED decorative lights and other outdoor LED equipment, especially suitable for LED control systems with high requirements for connection speed, waterproof performance and control stability.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	14Pin
Current Rating	5 Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch
