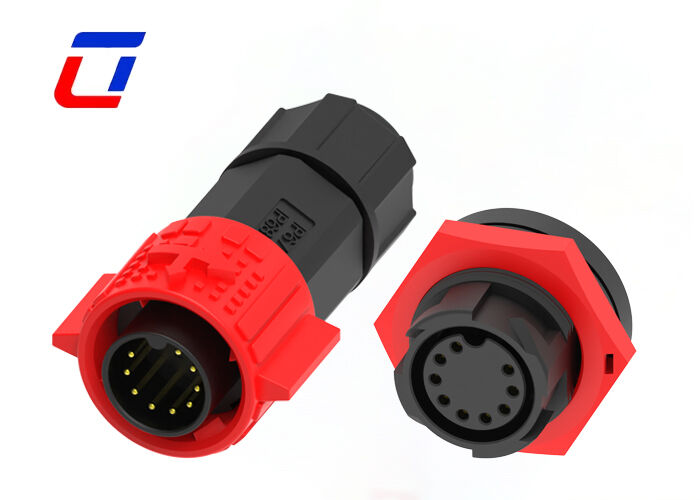

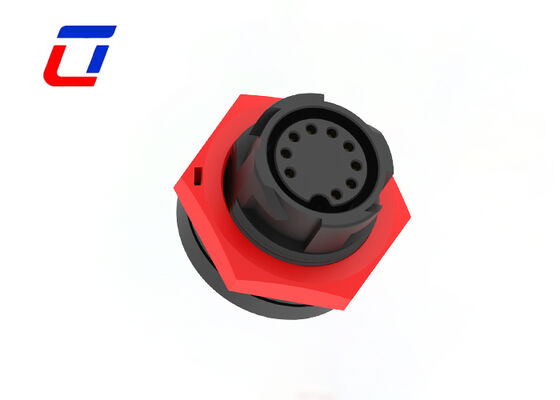

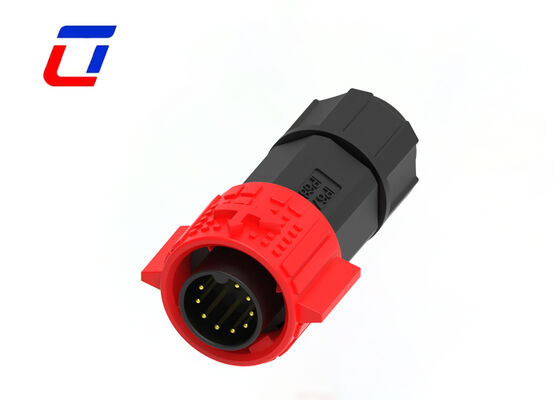

Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types

Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types

  • Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types
  • Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types
  • Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types
Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types
Product Details:
Place of Origin: China
Brand Name: Ulinkcon
Certification: CE/Rohs/TUV/UL
Model Number: M19
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~6working days
Payment Terms: T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability: 100000 pairs Montly
Contact Now
Detailed Product Description
Pin: 9Pin Material: PA66
Protection Level: IP67 Contact Material: Brass Gold-Plated
Temperature: -40~105℃ Industry Fields: Communication Equipment,Security & Surveillance
Highlight:

Gold-Plated IP67 Waterproof Data Connector

,

M19 Wire To Board Connector

,

9 Pin Waterproof Data Connector

M19 9 Pin Male Cable Connector - Industrial Waterproof Aviation Connector
9 Pin Data Connector M19 IP67 Waterproof Connector
Main Features
  • Push lock quick release system for easy connection
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
  • Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly version with wire to wire and wire to board options
  • 5A current rating for continuous operation
  • Cable assembly service supported with custom options available
  • OEM/ODM services welcome
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Overview
  • Product Positioning: M19 size 9-pin connector designed specifically for data transmission between wire and board, focusing on gold-plated technology and IP67 waterproof performance. It focuses on the stability of data transmission and environmental adaptability, different from ordinary power connectors, and is suitable for precise wire-to-board docking scenarios.
  • Waterproof and Dustproof Performance: Strictly complies with IP67 protection level, adopts a sealed structure design with a special waterproof sealing ring, which can effectively isolate dust, water vapor, oil stains and other impurities. Even in outdoor rain, humid environments or industrial dust scenarios, it can ensure uninterrupted data transmission.
  • Advantages of Gold-Plated Technology: The contacts are made of high-purity brass substrate with a uniform gold-plated layer on the surface, which has standard thickness and strong adhesion. It can not only significantly reduce contact resistance and signal attenuation, but also improve oxidation resistance and wear resistance, avoid poor contact during long-term use, and extend the service life of the connector.
  • Structure and Installation: Adopts M19 circular structure, suitable for wire-to-board connection mode, easy to install and precise positioning, can match various specifications of lines and circuit boards, with flexible wiring mode, taking into account assembly efficiency and connection stability, and can be directly embedded into the reserved interface of equipment panel or circuit board.
  • Material Characteristics: The shell is made of high-strength engineering plastic, which has the characteristics of high and low temperature resistance, impact resistance and chemical corrosion resistance, suitable for a wide temperature working environment of -40℃ to 105℃, not easy to deform or crack due to environmental changes, and suitable for industrial, outdoor and other complex scenarios.
  • Application Scope: Widely used in smart home, industrial control, outdoor monitoring equipment, automotive electronics, communication equipment, instrumentation and other fields, especially suitable for scenarios that require wire-to-board data transmission and have high requirements for waterproof and dustproof, ensuring efficient and stable data transmission.
Electrical Parameters
Number of Poles 9Pin
Current Rating 5A max
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Design Sketch
Gold-Plated IP67 Waterproof 9 Pin Data Connector M19 Wire To Board Connector Types 0
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: Can I have custom label?
A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
Q: How can I get samples?
A: We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.
Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
