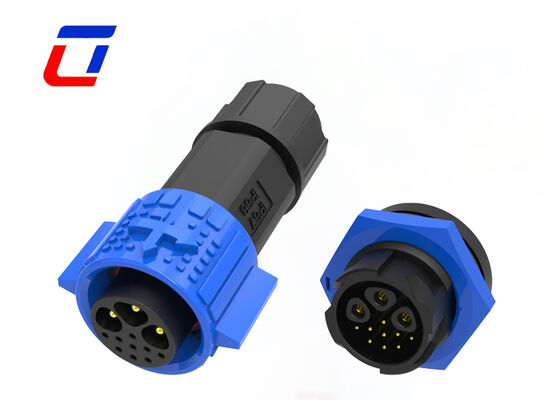

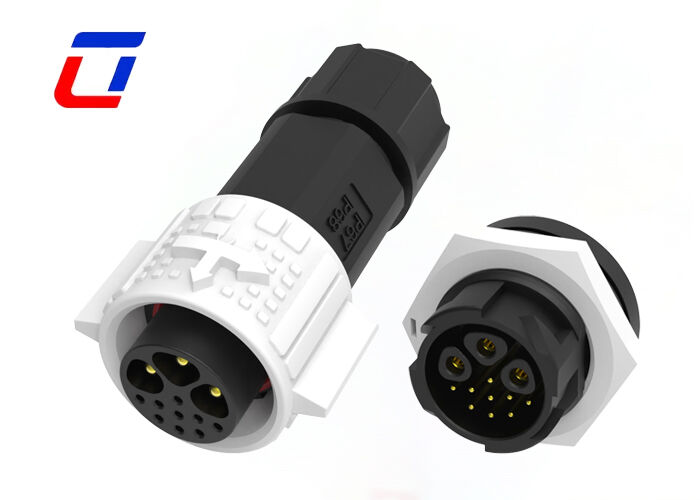

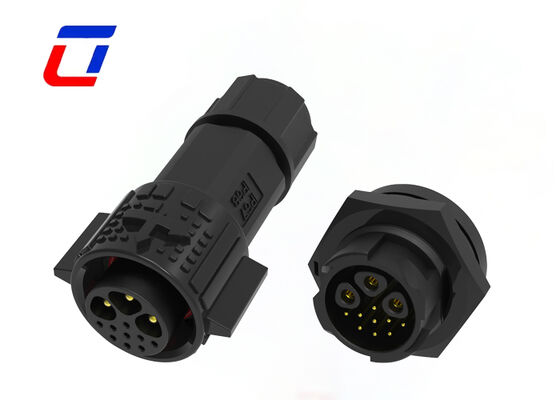

M19 3+9 Pin Waterproof Self Locking Cable To Board Connector IP67

Product Overview

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

Key Features

Core Specifications: Adopts M19 size design with 3+9 Pin configuration, realizing integrated transmission of power and signal. It eliminates the need for additional two types of connectors, effectively saving installation space, adapting to equipment scenarios with limited space, and solving the inconvenience of separate connection of power and signal.
Protection Level: Reaches IP67 waterproof and dustproof standard. It can achieve complete dustproof in the mated state and can be immersed in 1-meter deep water for 30 minutes without affecting use. It can effectively resist erosion from harsh environments such as moisture, dust and splashing water, ensuring stable operation of equipment.
Material & Craftsmanship: The shell is made of PA66 nylon material reinforced with glass fiber, complying with UL94 V-0 flame retardant grade, featuring high temperature resistance, impact resistance and corrosion resistance, and not easy to deform or age. The contacts are made of brass with gold plating, which reduces contact impedance, improves conductivity and corrosion resistance, and extends service life.
Installation Method: Adopts circular panel mount design, which is easy and stable to install, suitable for various panel thicknesses, and can be widely used for fixed installation of equipment panels. It also supports welding connection method, with reliable connection, not easy to fall off, and high assembly efficiency.
Application Scenarios: Suitable for various fields such as industrial automation, outdoor LED lighting, marine equipment, medical equipment, solar energy equipment and security monitoring, especially suitable for power supply and signal transmission needs in outdoor and harsh industrial environments.

Technical Specifications

Product Type Features

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics

Number of Poles	3+9
Current Rating	15+5A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Body Features

Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions

Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Configuration Options

Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Dimensions

Technical Details
