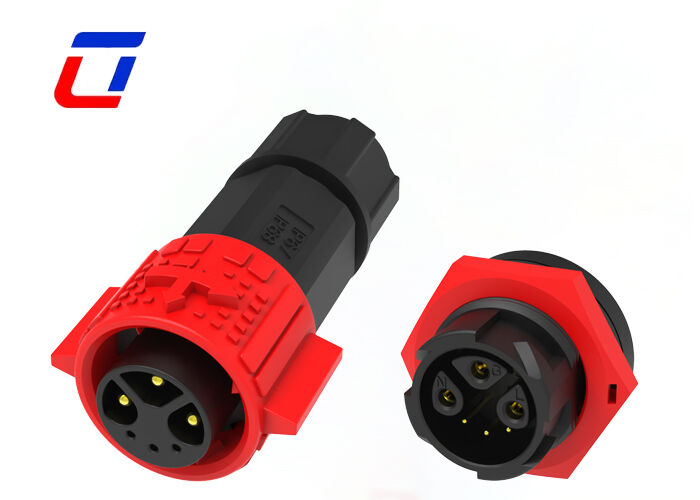

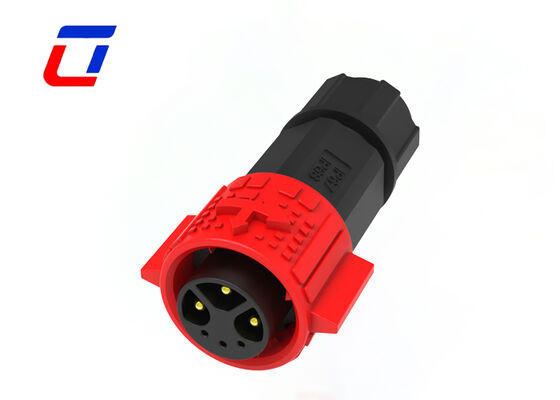

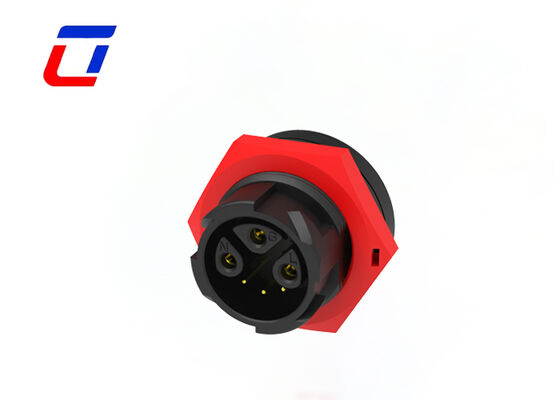

Name: 300V 3+3 Pin Multi Pin Connector Types M19 Male Female Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Circular Connector

300V 3+3 Pin Multi Pin Connector Types M19 Male Female Waterproof Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3Pin Power&Signal	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Flame-resistant Rating:	UL94-V0
Connecting Mode:	Push Locking Wire To Board
Highlight:	300V waterproof M19 connector , 3+3 pin circular connector , male female waterproof connector

300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Board Connector

Product Overview

Basic Info: M19 male-female waterproof multi-pin connector features a 3+3 pin structure and a rated voltage of 300V AC/DC, which is specially designed for low-voltage power supply and signal transmission in various electrical scenarios, with stable and reliable overall performance.
3+3 Pin Design: The scientific 3+3 pin layout divides functions clearly—3 pins are dedicated to stable power supply, and the other 3 pins are used for signal transmission. The separate channels effectively avoid mutual interference between power and signals, ensuring smooth and stable transmission effect.
Waterproof Performance: It reaches IP67 waterproof and dustproof rating, equipped with high-quality sealing components, which can effectively block water, dust and moisture from entering the connector, and is suitable for various indoor and outdoor harsh working environments.
Material & Installation: The shell is made of high-quality flame-retardant PA66 engineering plastic, which is durable, anti-aging and has good insulation performance. It adopts a quick plug-in structure, enabling tool-free installation and disassembly, which is simple and convenient to use.
Application: It is widely used in industrial control equipment, electronic devices, outdoor electrical appliances and other fields, providing safe and reliable connection support for various electrical systems.

Key Features

Push lock quick release system for easy installation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire to wire and wire to board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Product Type Features	Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features	3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics	600V AC/DC max operating voltage, 15A max contact current rating
Body Features	PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features	Pin-Socket Contact Type
Mechanical Attachment	Cable Mount, Keyed Alignment, Mating Retention
Dimensions	Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards	UL 94V-0 Flammability Rating

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the responsibility of the buyer under EXW/FOB terms. We can assist with document preparation as needed.

Q3: Are you a factory or trading company?

A3: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
