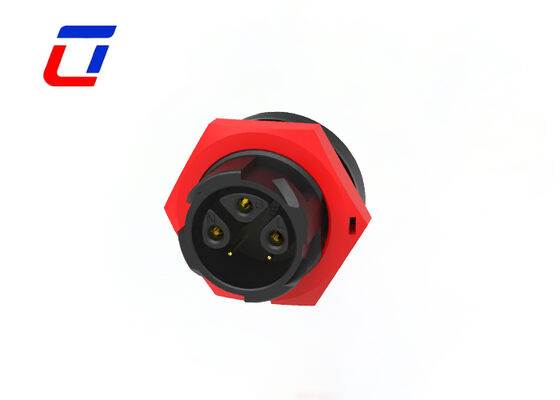

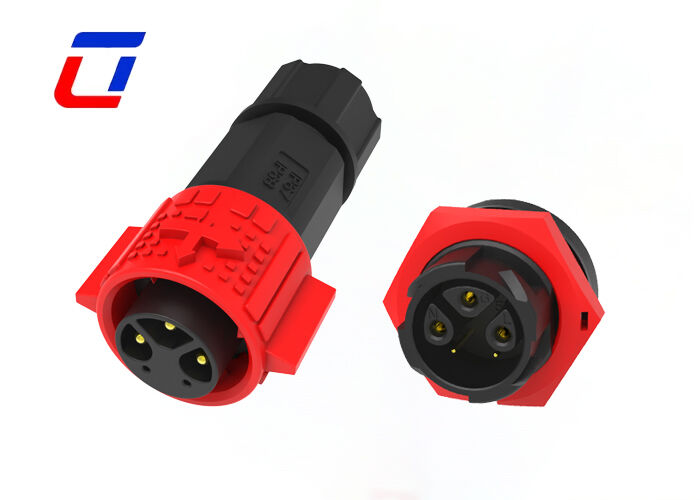

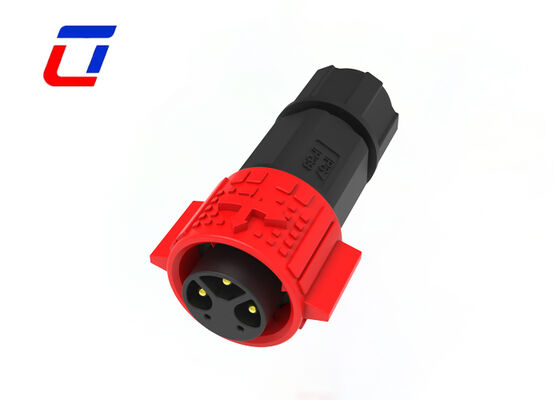

PA66 3+2 Pin M19 Wire To Board Connector Types Electrical Power Signal Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN Power&Signal	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Color:	Black Blue White Red Yellow
Type:	Waterproof Connector	Housing Material:	PA66 Flame-Retardant Plastic
Highlight:	PA66 M19 waterproof connector , 3+2 pin wire to board connector , electrical power signal circular connector

M19 Plastic Male Female Connectors 3+2 Pin Circular Power And Signal Connector

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector

Product Overview

Product Overview & Core Design: This is a PA66 M19 wire-to-board connector with a 3+2 pin structure, specifically designed for electrical power supply and signal transmission in industrial and electronic equipment. The 3+2 pin split design (3 power pins + 2 signal pins) effectively separates power and signal transmission, avoiding mutual interference and ensuring the stability and accuracy of both power supply and signal transmission. It is a versatile wire-to-board connection solution suitable for various low-voltage electrical scenarios.
High-Quality PA66 Material Advantage: The connector shell is made of high-performance PA66 engineering plastic, which has excellent comprehensive performance—flame-retardant (meets UL94-V0 standard), high mechanical strength, wear resistance, and impact resistance. It also has good electrical insulation, corrosion resistance, and UV resistance, not easy to age or deform even in long-term use, and can adapt to complex indoor and outdoor electrical environments.
3+2 Pin Functional Division: The 3 power pins are used for stable power transmission, supporting the power supply demand of electrical equipment; the 2 signal pins are dedicated to signal transmission, with strong anti-interference ability, ensuring the smooth transmission of control signals, data signals, and other weak signals. The pin layout is scientific and reasonable, with precise positioning and anti-misplug design, avoiding incorrect connection and damaging equipment.
Wire-To-Board Connection & Installation: Adopts professional wire-to-board connection mode, which can be firmly connected with the circuit board, realizing reliable connection between wires and the board. The installation is simple and convenient, supporting crimping and soldering termination methods, compatible with 0.5-2.5mm² wires, suitable for different wiring specifications and installation spaces. The M19 circular structure is compact, saving installation space and adapting to the layout of small electronic equipment.
Environmental Adaptability & Durability: It can work stably in the temperature range of -40℃ to +105℃, adapting to extreme temperature environments such as severe cold and high temperature. It has good dustproof and moisture-proof performance (IP67 protection level), effectively blocking dust, moisture, and other impurities from entering the connector, ensuring long-term reliable use. The mating durability is not less than 5000 cycles, and the service life is up to 6 years.
Application Scenarios: Widely used in various electrical and electronic fields, including industrial control equipment, household appliances, automotive electronic accessories, medical equipment, communication equipment, and LED driving equipment. It is especially suitable for equipment that requires separate power and signal transmission, providing a safe, reliable, and efficient wire-to-board connection solution.

Main Features

Push lock quick release systemMultiple core options: 2Pin, 3Pin, 4Pin, 5Pin for PowerPower signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20PinSignal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18PinField assembly version with wire-to-wire and wire-to-board options20A current rating for continuous operationCable assembly service and OEM/ODM support available

Technical Specifications

Specification Category	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	IP67 (Dust Level 6)
Operating Temperature	-40°C to 105°C
Durability Rating	250-251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications EquipmentProduct Coding MachinesInventory Product Coding SystemsInkjet SystemsSolar SystemsIndustrial Inkjet EquipmentElectric Power EquipmentLaboratory Forensic & Pathology EquipmentHeavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material and contact spacing. Some components may not function properly below their rated voltage.

Q2: Is there a discount for large-quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please provide your expected quantity for a customized quotation.

Q3: Can I have custom label?

A3: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
