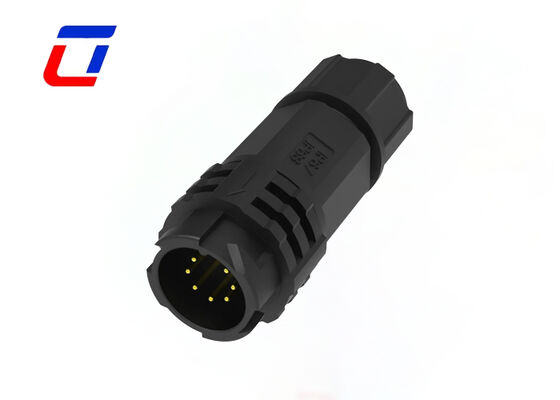

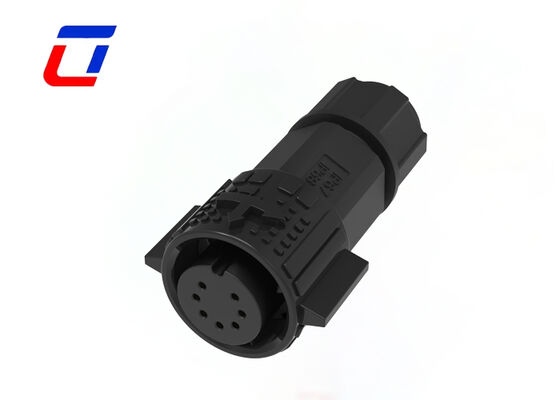

Name: CE Certified M19 300V Outdoor Lighting Connectors Circular 7 Pin Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Circular Connector

CE Certified M19 300V Outdoor Lighting Connectors Circular 7 Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	7Pin	Current Rating:	5A
Connector Type:	Quick Male Female Connector	Rated Voltage:	300V
Material:	Nylon	Safety & Compliance Features:	Flame-Retardant
Highlight:	CE certified M19 waterproof connector , 300V outdoor lighting circular connector , 7 pin waterproof circular connector

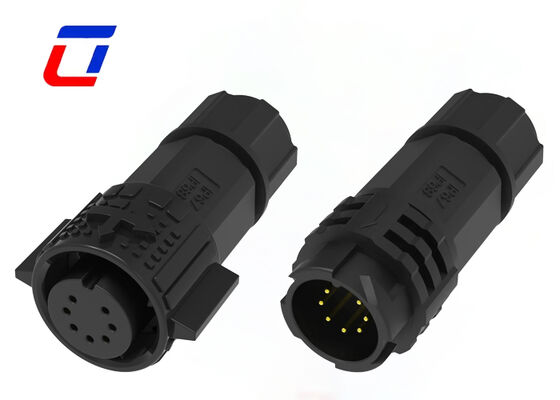

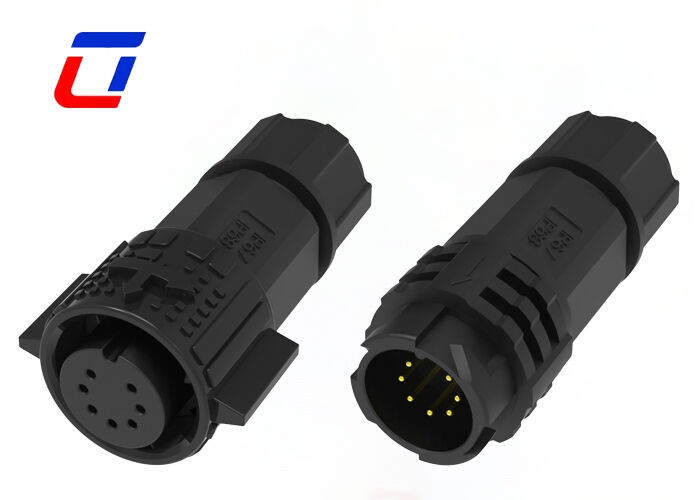

7 Pin Male Female Connector M19 Wire To Wire Outdoor Connectors

Quick Description

Product Identity & CE Certification: This product is a CE-certified M19 circular 7-pin waterproof connector, specifically tailored for outdoor lighting systems, with a rated voltage of 300V. The CE certification ensures that the product meets the strict safety, health and environmental protection standards of the European Union, making it legally marketable and usable in EU countries and regions, and also complying with global mainstream industrial safety norms.
Professional Waterproof & Dustproof Performance: Equipped with integrated waterproof sealing structure and high-quality silicone sealing ring, the protection level reaches IP67, which can completely prevent dust intrusion and resist temporary immersion in 1m deep water for 30 minutes. It effectively isolates rain, dew, fog and moisture, avoiding short circuits caused by water ingress and ensuring the service life of outdoor lighting equipment.
Structural Design for Outdoor Lighting: Adopts M19 standard circular structure, compact and lightweight, easy to install in narrow spaces of outdoor lighting fixtures. The 7-pin layout is scientific and reasonable, which can simultaneously realize power supply, dimming signal, color temperature adjustment and other multi-functional transmission, meeting the diversified needs of modern outdoor lighting systems.
Durable Material & Anti-Aging: The shell is made of high-quality flame-retardant engineering plastic (PA66), which has excellent impact resistance, wear resistance and UV resistance, and can resist the erosion of sunlight, wind and rain for a long time without aging, cracking or deformation. The connector body is corrosion-resistant, suitable for coastal, high-humidity and other harsh outdoor environments.
Secure Locking & Easy Installation: Adopts a reliable twist-lock mechanism, which can be firmly locked with a simple rotation, effectively preventing accidental disconnection caused by strong wind, vibration or manual collision. The design is user-friendly, no professional tools are needed for installation and disassembly, which greatly improves the construction efficiency of outdoor lighting projects.
Contact Performance & Termination: The contact pins are made of high-conductivity brass with nickel-gold plating, which has good oxidation resistance and corrosion resistance, reducing contact heating and ensuring stable current transmission. It supports crimp termination, which is firm and reliable, and is compatible with 0.5-2.5mm² cables, suitable for most outdoor lighting wiring specifications.
Operating Temperature & Application: It can work stably in the temperature range of -40℃ to +105℃, adapting to the temperature changes of different regions and seasons. Widely used in outdoor lighting projects, including street lighting, garden landscape lighting, square floodlighting, architectural decorative lighting, parking lot lighting, etc., providing safe and reliable connection support.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q:Is there a discount for large - quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

4. Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
