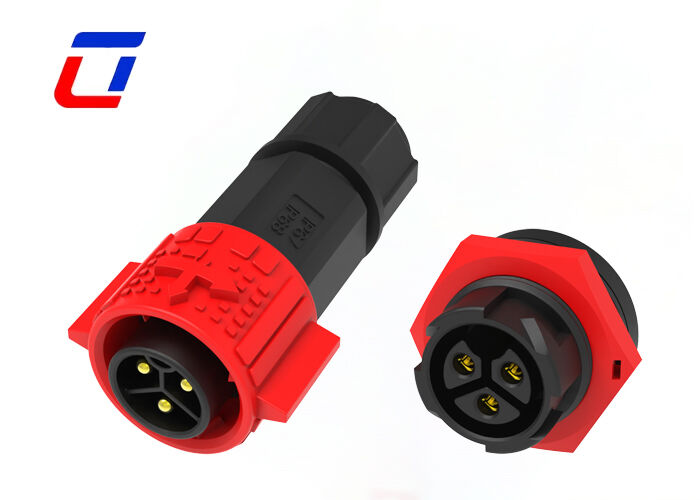

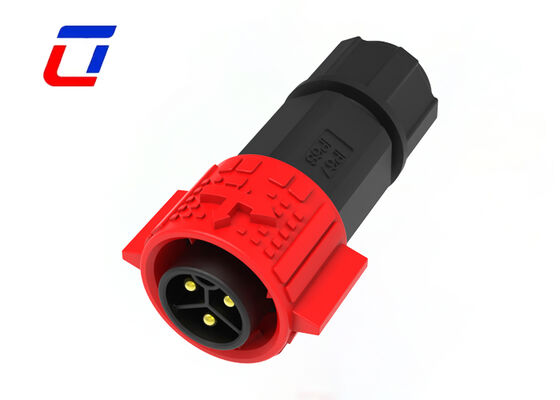

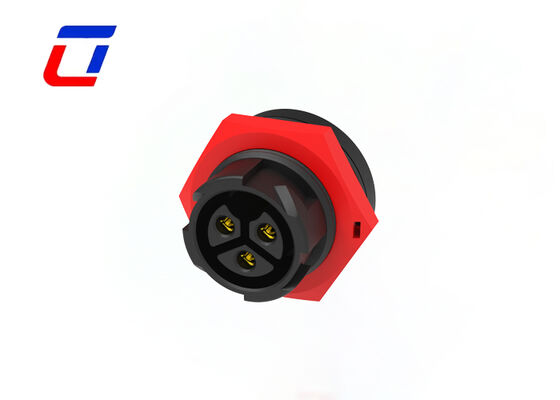

Name: IP67 3 Pin Male Female Connectors M19 20A Industrial Circular Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Power Connector

IP67 3 Pin Male Female Connectors M19 20A Industrial Circular Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	20A	Material:	PA66 And Brass Tin Plated
Rated Voltage:	300V	Flame-resistant Rating:	UL94-V0
Temperature:	-40~105℃	Sealing Material:	Waterproof O-Ring
Highlight:	IP67 waterproof M19 circular connector , 20A industrial power connector , 3 pin male female waterproof connector

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name : M19 Waterproof Cable Connector
Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
Coupling way: Self-locking
Pins number :2-22 pins
Plug : Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/ IP68
Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm~16.5 mm
Durability :3000 times
Applicabletemperature: -40℃~105℃

Quick Description

Product Model & Basic Overview: Model is IP67 3 Pin Male Female M19 Industrial Circular Connector, with a rated current of 20A, specially developed for industrial power and signal transmission scenarios. It adopts a male-female mating design, featuring compact structure, reliable performance, and strong environmental adaptability, widely recognized by industrial connector manufacturers and users.
Core Electrical Parameters: Rated voltage is 300V AC, rated current reaches 20A, which can stably transmit power and signal for medium and low-power industrial equipment. The contact resistance is ≤10mΩ.
Waterproof & Dustproof Performance: Complies with IP67 protection rating, which means it is completely dust-tight and can be temporarily immersed in 1m deep water for 30 minutes without water intrusion, effectively blocking rain, dust, moisture, and even corrosive substances, ensuring stable operation in harsh industrial environments.
Operating Environment Adaptability: Works stably in the temperature range of -40℃ to +105℃, adapting to extreme weather conditions such as severe cold, high temperature, and large temperature differences. It is UV-resistant, oil-resistant, and corrosion-resistant, suitable for long-term use in outdoor and industrial harsh environments such as factories, construction sites, and marine areas.
Application Scenarios: Widely used in various industrial fields, including industrial automation equipment, construction machinery, marine equipment, agricultural machinery, LED lighting systems, solar energy equipment, stage equipment, and industrial control systems, providing reliable power and signal connection support for various industrial devices.
Certification & Quality Assurance: Passed international certifications such as CE, ROHS, TUV, and UL, meeting global industrial safety and environmental protection standards. Manufactured with strict quality control processes, the product has a mating durability of no less than 5000 cycles and a service life of 3-5 years, ensuring long-term reliable use for users.

Electrical Parameters
Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: What shipping methods do you offer? How long is the delivery time?

A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

2. Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
