M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2Pin	Current:	10A Max. For Power
Rated Voltage:	300V	Waterproof Rating:	IP67
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated

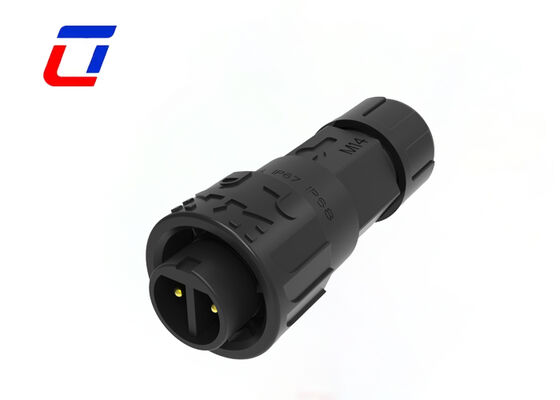

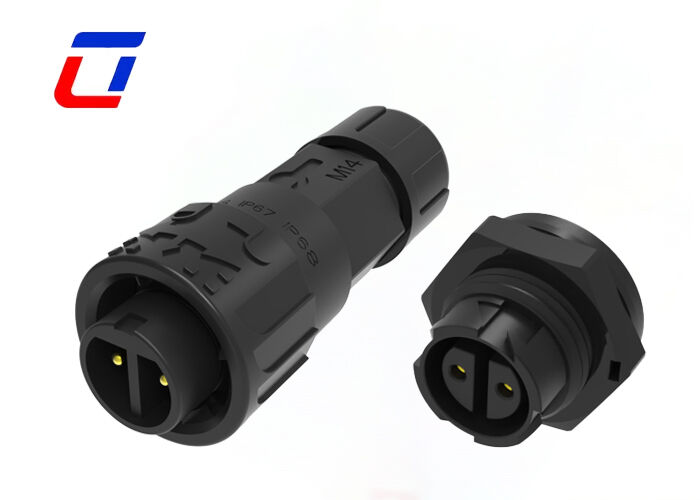

M16 10A IP67 Connectors Waterproof Quick Lock Female To Male Connector For Power

Product Overview

2 Pin Circular Power Connector M16 300V Waterproof Male Female Connector

Industrial Waterproof Circular Connector

M16 standard male and female connectors specially designed for power transmission scenarios, with a rated current of 10A and IP67 protection level. Equipped with a quick lock structure, focusing on waterproof, anti-drop and efficient power supply, suitable for various equipment that requires stable power connection.

Key Features

Push lock quick easy release system
Multi-core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: both wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector: ideal for prolonged operation up to 10A
Cable assembly services provided - customization welcome
OEM/ODM partnerships accepted

Electrical Parameters

Parameter	Specification
Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How can I get samples?

A1: We are pleased to offer samples, and the freight should be paid by yourself. Please provide your courier number and detailed address, and we will send the sample immediately.

Q2: Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3: Can I pay after receiving the goods?

A3: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
