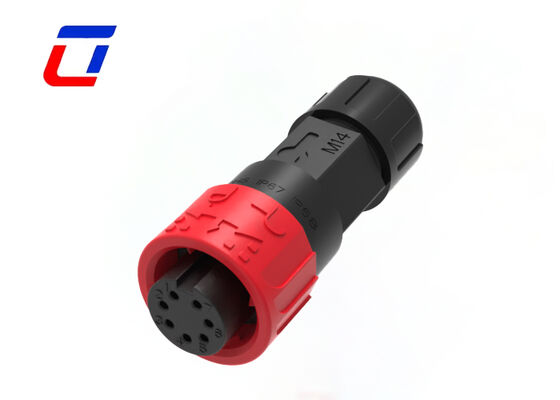

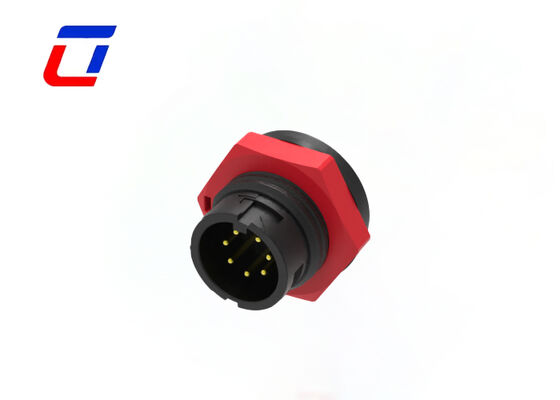

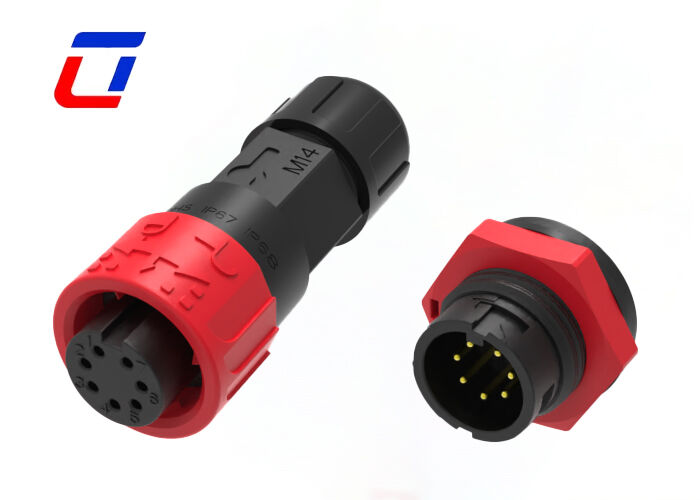

Name: IP67 M16 7 Pin 300V Low Voltage LED Connectors Circular Male Female Connector Sizes
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Outdoor Waterproof Connector

IP67 M16 7 Pin 300V Low Voltage LED Connectors Circular Male Female Connector Sizes

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:

Rated Voltage:

60V

Copper Needles:

Copper Alloy

Sealing Material:

Waterproof O-Ring

Highlight:

IP67 waterproof M16 LED connector

7 pin low voltage circular connector

300V male female waterproof connector

5A M16 Nylon 7 Pin Waterproof Connector CE Plastic PA66 Data Quick Lock Connector

Product Overview

M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.

Main Features

Push lock quick release system for easy installation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
Field assembly versions: wire to wire and wire to board
Cable assembly service supported with custom options available
OEM/ODM services welcome

Product Specifications

Core Positioning & Applicable Scenarios: Circular male and female connectors specially designed for low-voltage LED equipment, adopting M16 standard interface and 7Pin pin layout, with a rated voltage of 300V. Suitable for various low-voltage LED lighting systems (such as LED strips, LED lamps, LED displays), and can also be used for synchronous transmission of signals and power in small LED control equipment, which is a dedicated connection solution for the LED industry.
Protection Performance & Structural Design: With IP67 protection level, it can be completely dust-proof and protected against short-term water immersion (no damage within 30 minutes at 1 meter depth underwater), suitable for harsh working environments such as outdoors, humidity and dust. Adopting a circular integrated structure, the male and female heads are accurately aligned, combined with a silicone sealing gasket, which effectively isolates water vapor and dust intrusion and ensures the long-term stable operation of LED equipment.
Material & Durability: The shell is made of flame-retardant PC material, which is high temperature resistant (-40℃~105℃), impact resistant and anti-aging, meeting UL94 V0 flame retardant grade. The pin plugging life can reach more than 5000 times, and it is not easy to oxidize and deform after long-term use, which is suitable for the long-term continuous working needs of LED equipment and reduces maintenance costs.
Product Advantages & Compliance: Produced by the source factory, supporting bulk customization and small-batch trial orders with flexible delivery time. All products have passed IP67 protection test and electrical performance test, complying with RoHS and REACH environmental standards, and compatible with mainstream LED equipment interfaces at home and abroad. Provide perfect after-sales guarantee, and can provide one-on-one interface adaptation suggestions according to customers' LED project needs.

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Images

Frequently Asked Questions

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
