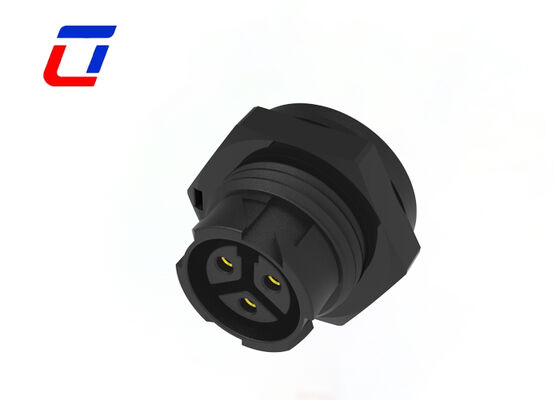

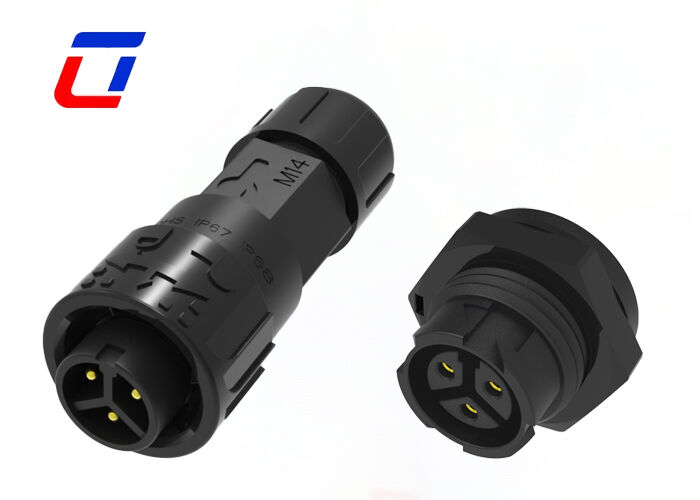

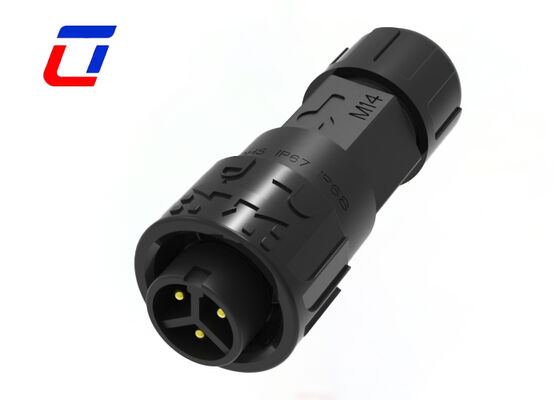

Name: M16 3 Core Waterproof Cable Connector DC Quick Lock Brass Gold-Plated Power Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Cable Connector

M16 3 Core Waterproof Cable Connector DC Quick Lock Brass Gold-Plated Power Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Current:	10A Max
Rated Voltage:	300V	Waterproof Rating:	IP67
Color:	Red Blue White Black Yellow	Flame-resistant Rating:	UL94-V0

M16 3 Core Waterproof Cable Connector DC Quick Lock Brass Gold-Plated Power Connectors

This M16 specification 3-core waterproof cable connector is specifically designed for DC power transmission applications. Featuring a quick-lock structure combined with brass gold-plated technology, it integrates key advantages including waterproof protection, corrosion resistance, and low contact resistance.

Product Overview

Ideal for equipment requiring stable power supply in complex environments, it serves as the preferred accessory for industrial and outdoor electronic equipment power transmission. The product complies with M16 standard interface dimensions and features a 3-core conductor design that precisely matches DC power transmission lines, ensuring efficient power delivery and stable equipment operation.

Material & Construction

Constructed from high-purity brass substrate, the connector provides excellent hardness and conductivity, effectively reducing current transmission losses and improving power supply efficiency. The professional gold plating surface treatment significantly enhances oxidation and corrosion resistance, extends service life, and optimizes contact performance.

Waterproof performance is a core feature, with an integrated sealed structure design that effectively blocks water vapor, dust, oil stains, and other impurities from entering the interface interior. This protects circuit safety and prevents short circuits and equipment damage caused by water ingress.

Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Design & Construction

Core Positioning: 3-pin precise power supply configuration for stable transfer between equipment panels and external power sources
High-Quality Materials: Weather-resistant and flame-retardant engineering plastic housing (V0-level flame retardancy, UV aging resistance)
Protection Performance: IP67 waterproof and dustproof rating with special sealing structure and high-elasticity waterproof rubber rings
Connection Design: Push-lock locking structure for easy operation, anti-vibration and anti-falling; M16 panel-mounted design

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are borne by the buyer under EXW/FOB terms. We can assist with document preparation if needed.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
