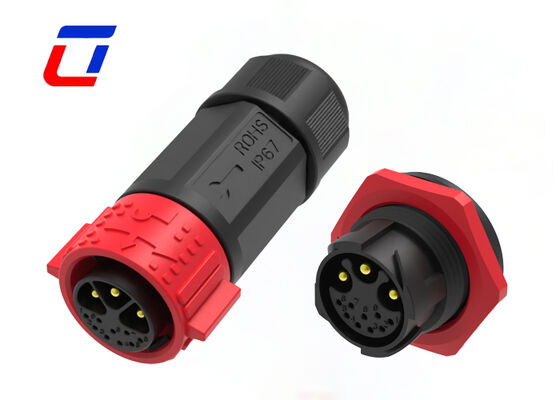

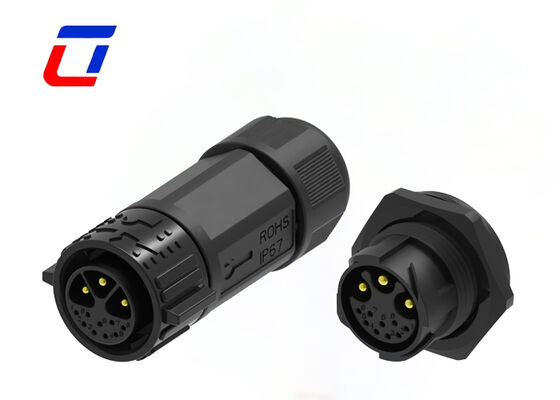

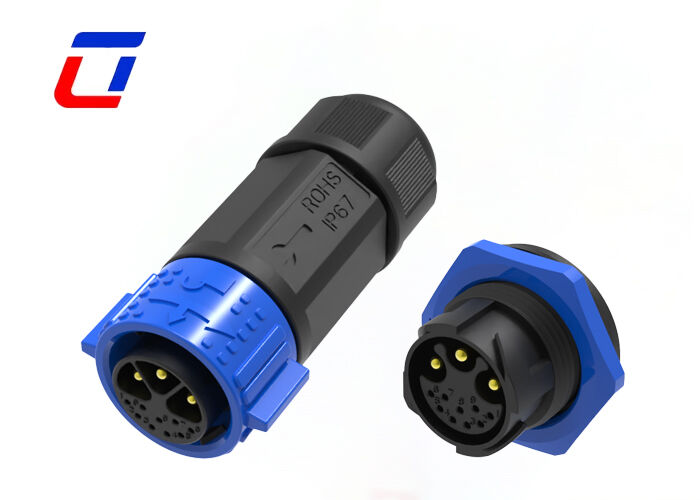

M25 Waterproof Outdoor Connectors 3+9 Pin Male Female Connector Power And Signal

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	15A+5A	Number Of Pins:	3+9 Pin
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Connecting Mode:	Push Lock

M25 Waterproof Outdoor Connectors 3+9 Pin Male Female Connector Power And Signal

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Quick Details of 3+9 Pin Connector Male Female

Core Specs: M25 for outdoor use, 3+9 pin layout (3-core power pins + 9-core signal pins), male-female plug-in design
Waterproof Performance: IP67 waterproof and dustproof, tightly sealed, resistant to outdoor rain, dust and moisture
Easy Connection: Push-type self-locking design, no threads, pluggable by hand without tools
Durable & Adaptable: Weather-resistant material, UV and high-low temperature resistant (-40℃~105℃)

Technical Specifications

Feature Category	Specification
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+9
Number of Signal Positions	9
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Contact Current Rating (Max)	15A +5A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: How to choose the suitable connector?

A2: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style need to pre-cable or not. If needed, then confirm the next
Confirm Cable gauge
Confirm Cable Length and Material
