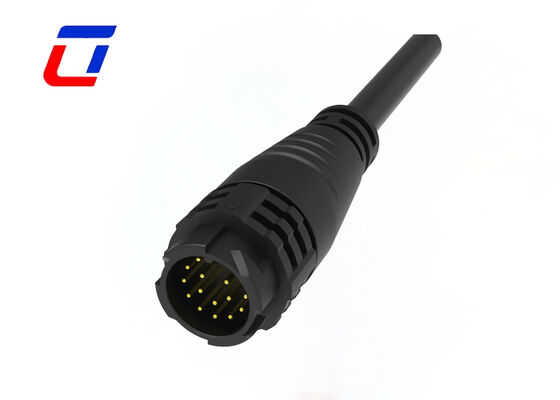

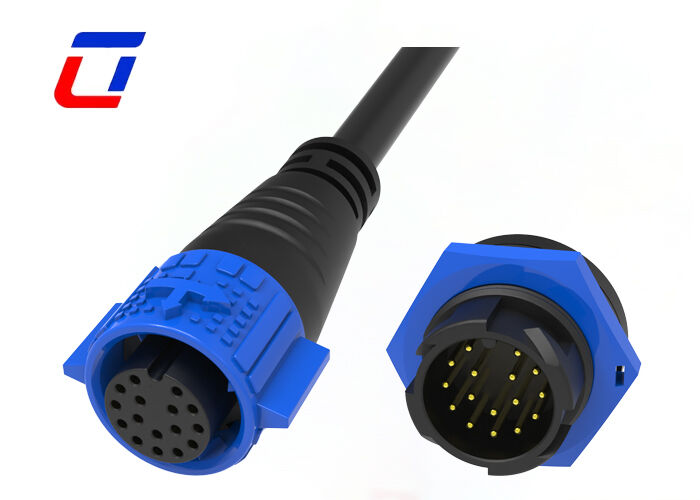

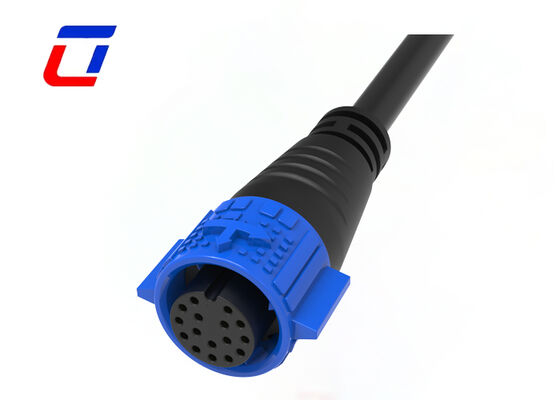

Name: 300V Low Voltage M19 16 Pin Male Female Connector Quick Lock XLR Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

300V Low Voltage M19 16 Pin Male Female Connector Quick Lock XLR Waterproof Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	16Pin
Material:	Nylon	Operating Temperature:	-40℃-+105℃
Flame-resistant Rating:	UL94-V0	Electrical Functions:	Signal Transmission

300V Low Voltage M19 16 Pin Male Female Connector Quick Lock XLR Waterproof Connectors

Product Overview

The 300V Low Voltage M19 16 Pin Male Female Connector is a high-performance waterproof XLR connector featuring a quick-lock mechanism. Designed with an M19 shell and 16-pin configuration, it offers IP67 waterproof rating and gold-plated brass contacts for stable 300V low-voltage signal and power transmission. Constructed from durable PA66 plastic, it operates reliably in temperatures ranging from -40°C to +105°C, with excellent anti-corrosion and anti-vibration performance. Ideal for LED lighting, industrial automation, marine equipment, and more. Compliant with CE and RoHS certifications.

Key Features

Excellent waterproof and dustproof performance with IP67 protection level
Quick lock connection method for efficient installation and disassembly
Wide adaptability to outdoor application scenarios
Push lock quick release system
Multiple pin configurations available: 2Pin-18Pin for power and signal applications
Field assembly version with wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Images

Frequently Asked Questions

Are you a factory or trading company?

We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
