Name: M19 Waterproof 2+20 Multi Pin Connectors PA66 Waterproof Power Data Cable Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

M19 Waterproof 2+20 Multi Pin Connectors PA66 Waterproof Power Data Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Flame-resistant Rating:	UL94-V0	Material:	PA66&Copper Alloy
Protection Level:	IP67	Rated Voltage:	300V
Connector Type:	Self-locking Male To Female	Color:	White Blue Red Black Yellow

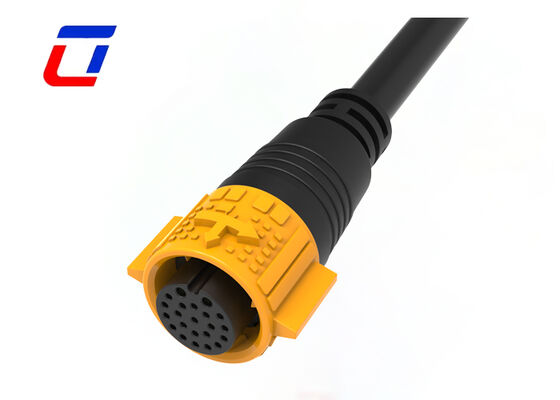

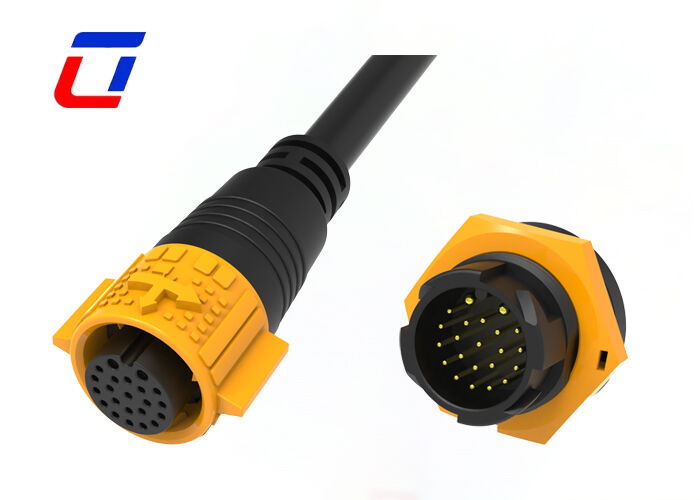

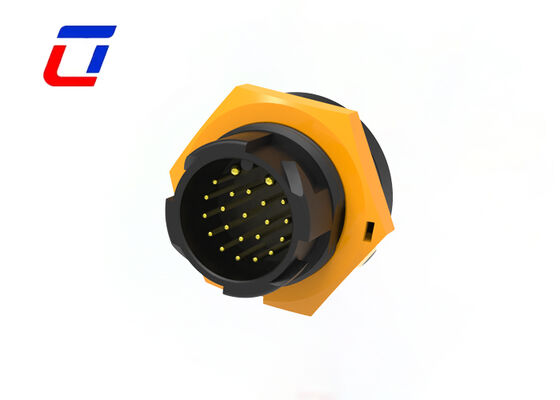

M19 Waterproof 2+20 Multi Pin Connectors PA66 Waterproof Power Data Cable Connector

Round Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors

Product Overview

Waterproof Multi 2 Pin For Power Connectors M19 300V Push Locking 20 Pin Data Connector

Key Features

Core Specification Parameters: M19 2+20 multi-pin design (2 for power, 20 for data), PA66 material, realizes simultaneous power and data transmission; industrial standard circular interface, easy panel mount with precise positioning.
Professional IP67 Waterproof Protection: Fully sealed housing, IP67 waterproof/dustproof, resists harsh environments, ensures stable power/data transmission and long service life.
Industrial-Grade Adaptability: Suitable for industrial power/data transmission, compatible with industrial voltage, stable current-carrying, meets industrial equipment requirements.
Premium Material & Craftsmanship: PA66 housing (wear/impact/corrosion-resistant); high-conductivity pins ensure stable, long-term reliable connection.
Push-Pull Easy Connection: Ergonomic push-pull design, anti-loosening, precise panel mount, easy maintenance, high industrial operation efficiency.
Wide Application Scope: Suitable for industrial automation, sensors, outdoor equipment, ideal for waterproof power/data panel mount scenarios.

Application Industries

Growth Lights Communications Equipment Product Coding Machines Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Equipment Heavy Machinery

Electrical Specifications

Number of Poles	22-pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	20A maximum
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Product Design

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also customize materials according to your requirements.

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
