Name: PA66 M19 20A 2 Pin IP67 Connector ODM Waterproof Inkjet Systems Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

PA66 M19 20A 2 Pin IP67 Connector ODM Waterproof Inkjet Systems Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2Pin	Current:	20A
Connector Type:	Self-locking Male To Female	Material:	PA66&Copper Alloy
Voltage Rating:	300V	Flame-resistant Rating:	UL94-V0

PA66 M19 20A 2 Pin IP67 Connector ODM Waterproof Inkjet Systems Connectors

Product Overview

M19 2Pin 20A Push Lock Power Waterproof Circular Wire To Board Connectors designed for industrial inkjet systems and demanding applications.

Main Features

Push lock quick easy release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Specifications
Connector System	Cable-to-Cable/Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics	Specifications
Number of Poles	2
Current Rating	20A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features	Specifications
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions	Specifications
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Key Advantages

Core Parameters & ODM Service: PA66 industrial-grade M19 connector, 2-pin configuration, rated current up to 20A, IP67 waterproof protection. Supports ODM customization to adjust pin layout, cable length, shell color and interface type according to customer project drawings.
Inkjet-Specific Waterproof Design: Equipped with professional multi-layer sealing structure, effectively preventing ink corrosion, water vapor intrusion and dust accumulation.
High-Strength PA66 Material Advantage: Adopts high-performance PA66 raw material with anti-UV, anti-chemical corrosion and high-temperature resistance (-40℃~125℃).
High-Current Stable Transmission: 2-pin dedicated power connection design, matched with high-conductivity copper alloy pins. Contact resistance ≤8mΩ.
Push-Lock Quick Connection: Built-in push-lock quick release structure, one-click plug-in and locking, fast and firm with anti-loosening design.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

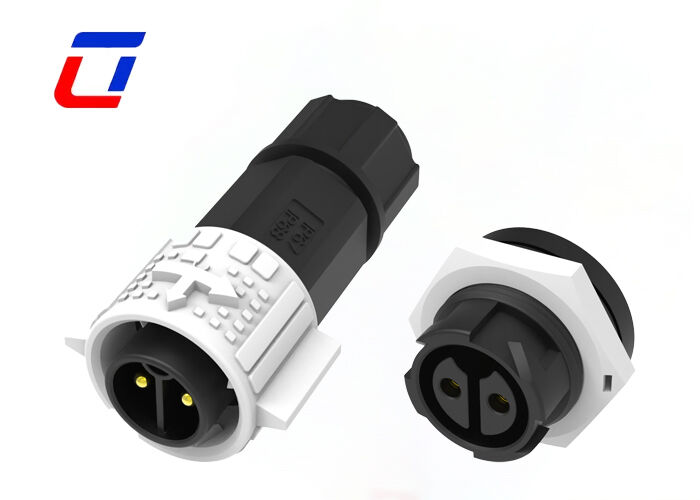

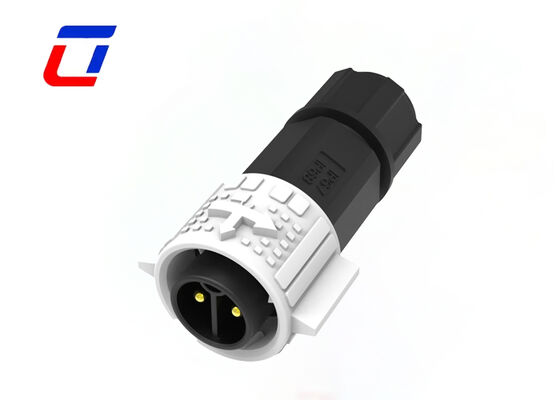

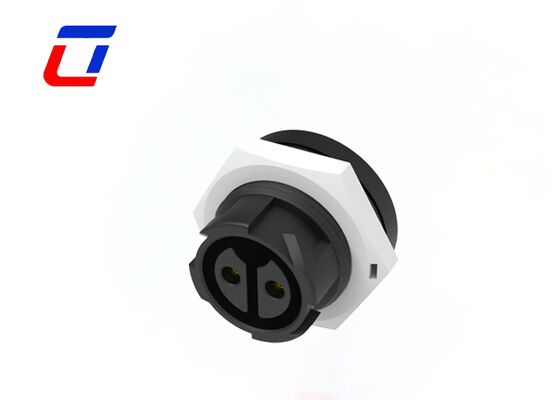

Product Images

Frequently Asked Questions

Q1: How can I get samples?

A1: We are pleased to offer samples, with freight to be paid by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.

Q2: Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3: Who is responsible for customs clearance? Do you provide necessary documents?

A3: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
