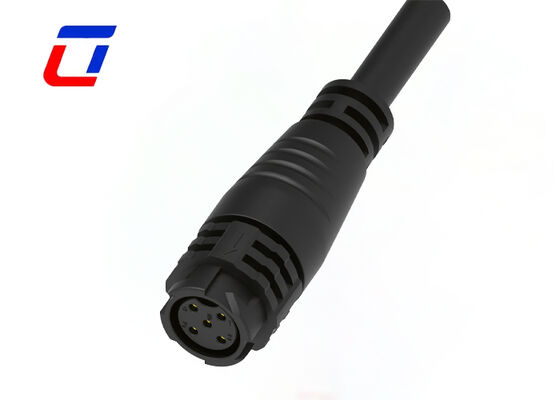

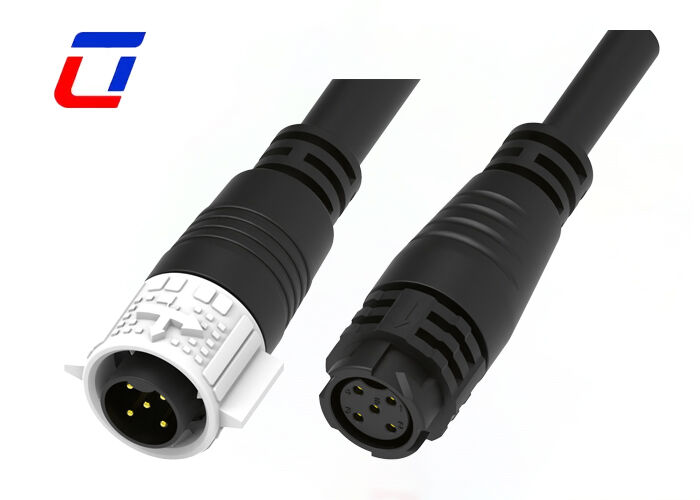

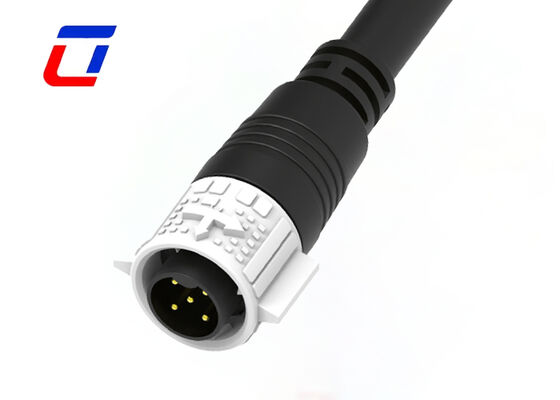

Name: M19 5 Pin Waterproof Cable Connector IP67 ODM High Current 20A Power Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Power Connector

M19 5 Pin Waterproof Cable Connector IP67 ODM High Current 20A Power Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Pin:	5Pin
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40℃~+105℃
Material:	Nylon	Contact Material:	Brass Gold-Plated

M19 5 Pin Waterproof Cable Connector IP67 ODM High Current 20A Power Connectors

Product Overview

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Electrical Parameters

Parameter	Specification
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Advantages

Core Specifications & ODM Advantage: M19 series 5-pin waterproof cable connector, IP67 protection grade, designed for 300V low-voltage power transmission, supporting ODM customization service.
IP67 Waterproof & Dustproof Protection: Professional waterproof structure with high-quality silicone sealing ring and sealed plug interface, fully complying with IP67 protection standard.
Low-Voltage Adaptability & Safety: Specialized for 300V low-voltage power scenarios with excellent insulation performance and over-current protection.
Durable Material & Stable Performance: High-strength engineering plastic shell and high-conductivity copper alloy pins for long-term reliability.
Easy Installation & Reliability: Quick plug-in structure with strong anti-loosening performance for stable power supply.

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Images

Frequently Asked Questions

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Can I have custom label?

Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

L*n

Malaysia Sep 27.2025

Helpful (790)

Perfect for our hot and humid climate. No water leakage at all, even in heavy rain. The quality is much better than local products I’ve used before.

M*i

Italy Sep 11.2024

Helpful (1019)

Excellent connectors! They are well-made, completely waterproof, and work wonderfully even in bad weather. The service was outstanding, and I can recommend this seller to everyone.

T*s

United States Aug 17.2024

Helpful (2518)

What I appreciate most is how reliable these connectors are. We run heavy machinery outdoors, and these connectors never fail, even under constant use. No corrosion, no loose connections, no leaks—total peace of mind for our team.
