Name: IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A+5A	Rated Voltage:	300V
Pin:	3+5Pin	Connector Type:	Quick Connector
Material:	Nylon	Flame-resistant Rating:	UL94-V0

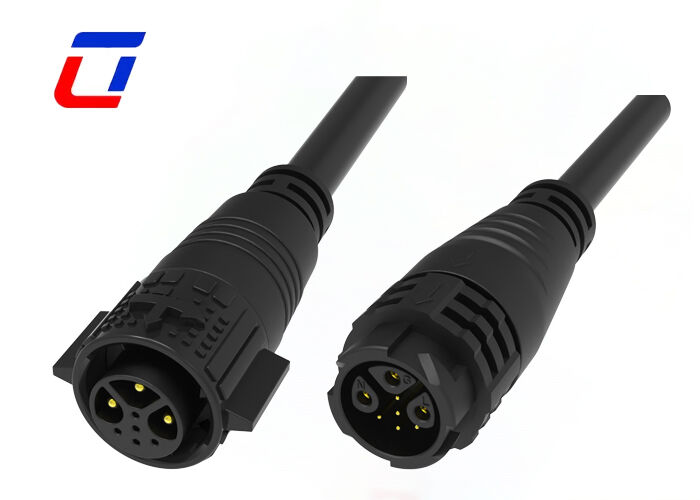

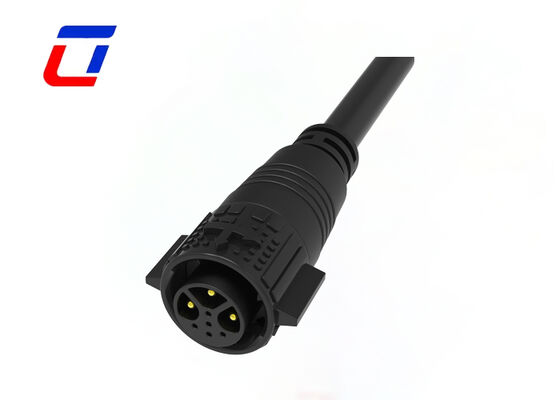

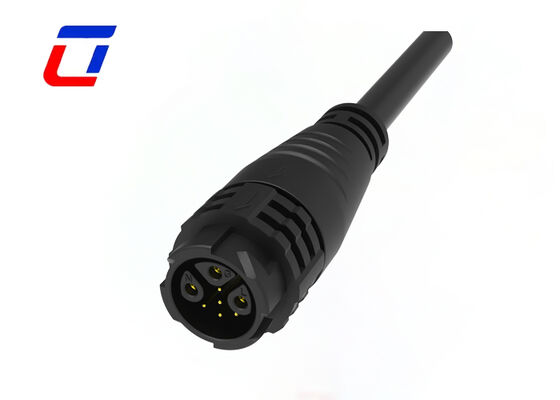

IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors

20A Waterproof Data Cable Connector 3+5 Pin M19 IP67 Circular Connectors

Quick Description

Specialized Configuration: IP67 protection grade, M19 series wire connector with 3+5 pin design (3 pins for power transmission, 5 pins for data transmission), gold-plated contact pins, specially developed for solar power generation systems.
Solar-Optimized Waterproof Performance: Complies with IP67 waterproof and dustproof standard, capable of withstanding harsh outdoor environments including heavy rain, dust, and extreme temperature changes.
Gold-Plated Conductivity & Material Advantage: All contact pins made of high-purity brass with full gold plating, reducing contact resistance and improving electrical conductivity and anti-oxidation performance.
Power & Data Dual-Transmission Design: 3+5 pin separate design with anti-misplug structure for easy distinction between power and data pins.

Electrical Parameters

Number of Poles	3+5 Pin
Current Rating	15A + 5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

2. Q: How to buy your products?

A: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

3. Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
