Name: M19 6 Pin Male Female Connector 10A Industrial Waterproof Connector Factories
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

M19 6 Pin Male Female Connector 10A Industrial Waterproof Connector Factories

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	6Pin	Current:	10A
Rated Voltage:	300V	Waterproof Rating:	IP67
Color:	Red Blue White Black Yellow	Contact Material:	Brass Gold-Plated

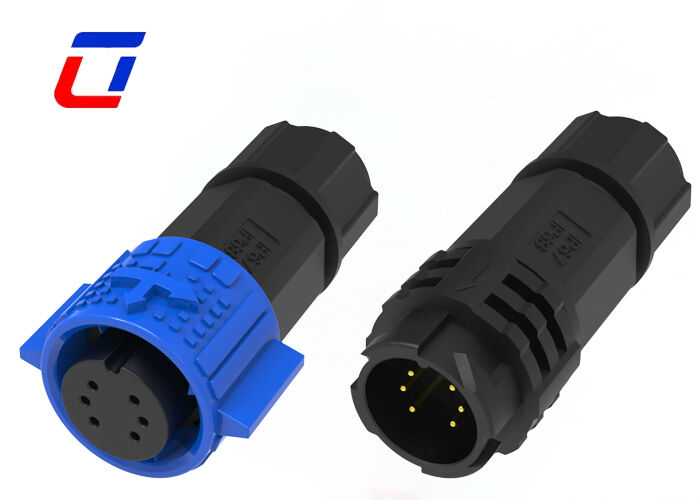

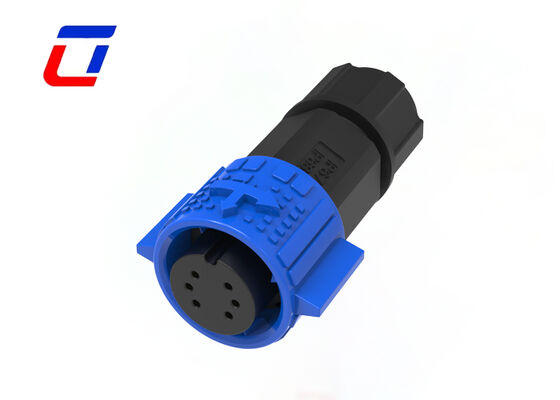

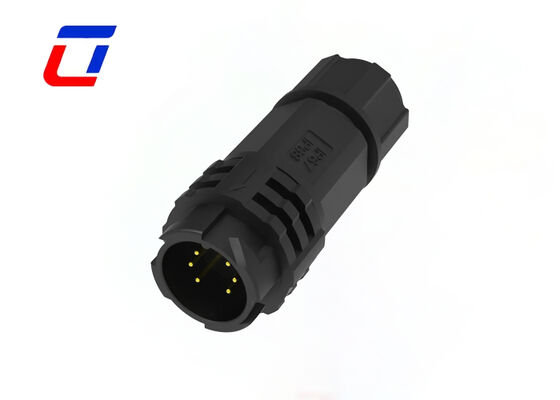

M19 6 Pin Male Female Connector 10A Industrial Waterproof Connector

6 Pin IP67 Connector M19 Dustproof Waterproof Wire Splice Connector

Industrial Waterproof Circular Connector

Core Specifications: Rated current 10A, 6-pin configuration, M19 series male-female connector, tailored for industrial-grade power and signal transmission, compatible with standard industrial wiring specifications
Industrial-Grade Waterproof & Dustproof: Meets IP67 protection standard, achieving full dust tightness and protection against temporary immersion (1m water depth for 30 minutes)
High-Quality Material & Precision Manufacturing: Shell made of high-strength flame-retardant PA material, resistant to aging, corrosion and high/low temperatures (-40℃ to 105℃)

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for power
3+2, 3+3, 3+4, 3+5, 2+20Pin power and signal combinations
9Pin, 10Pin, 12Pin, 14Pin, 16Pin, 18Pin for signal transmission
Field assembly version: both wire-to-wire and wire-to-board options
High current rated waterproof connector suitable for up to 10A continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Electrical Parameters

Number of Poles	6Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Applications
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends mainly on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

Q3: Who is responsible for customs clearance? Do you provide necessary documents?

A3: We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are typically borne by the buyer under EXW/FOB terms. We can assist with document preparation as needed.
