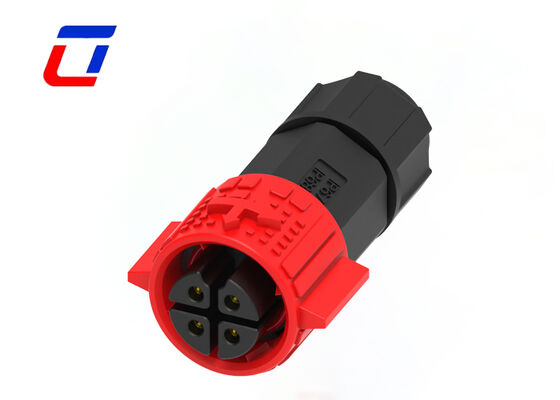

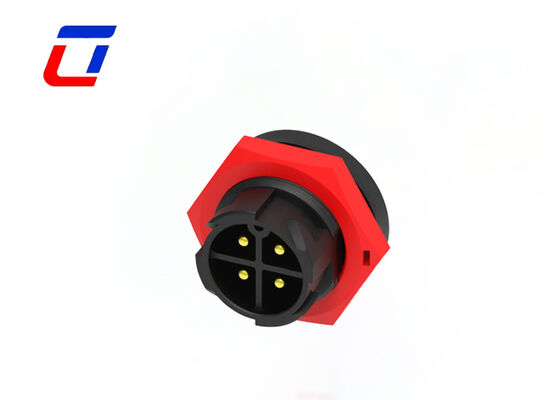

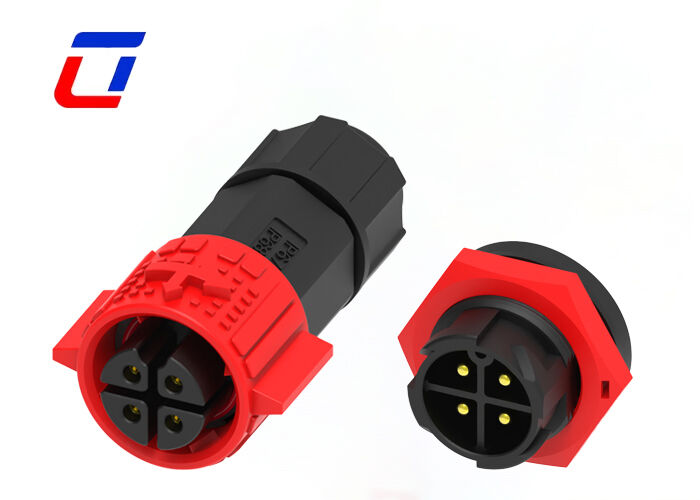

Name: 15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A	Rated Voltage:	300V
Connector Type:	Quick Connector	Material:	Nylon
Color:	Red Blue White Black Yellow	Flame-resistant Rating:	UL94-V0
Highlight:	15A waterproof power connector , M19 wire to board connector , IP67 waterproof plug socket

15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Quick Description

Basic Parameters: Rated current 15A, 4-pin design, M19 model, supports male-female pairing, wire-to-board connection for stable and efficient power transmission
Waterproof & Dustproof Performance: IP67 protection grade - completely dustproof and can be immersed in 1m deep water for 30 minutes; double waterproof structure with housing sealing ring and pin sealing sleeve
Material & Craftsmanship: UV-resistant reinforced PA66 shell (-40℃ to 105℃); gold-plated brass pins with contact resistance ≤10mΩ for reduced power loss
Quick Connection Design: Push-lock quick release system with anti-misplug design for safe and efficient operation
Durability & Reliability: 10,000+ plug-in cycles; board-end pins with excellent folding resistance; CE, ROHS, TUV, UL certified
Applicable Scenarios: Outdoor lighting, solar systems, industrial inkjet equipment, electric power equipment, heavy machinery, communication equipment, sensor data collection

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by the customer. Please provide your courier account number and detailed address, and we will send the sample immediately.

Q: How many materials you can provide?

A: We offer various materials for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
