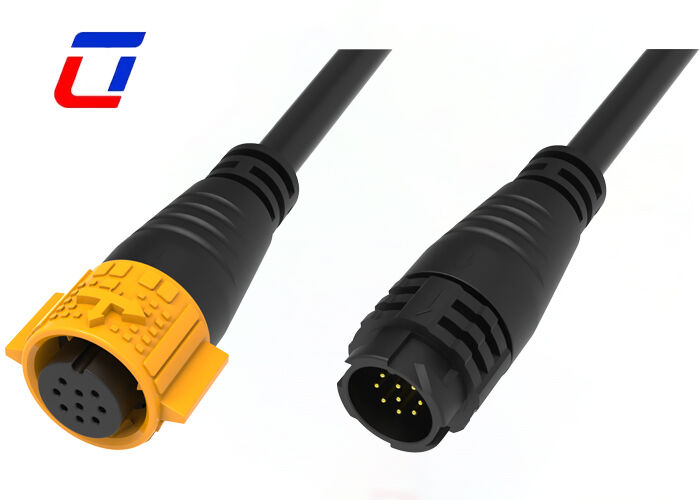

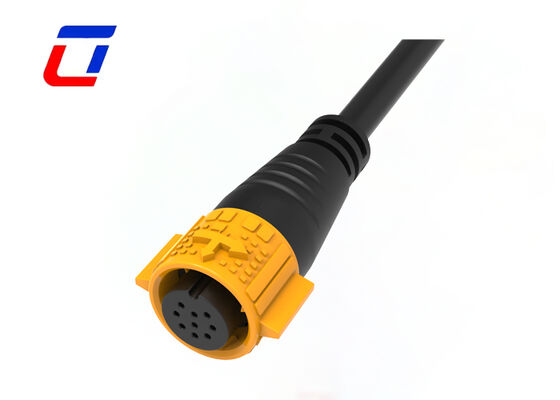

Name: PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	9Pin	Current Rating:	5A
Material:	PA66	Protection Level:	IP67
Contact Material:	Brass Gold-Plated	Temperature:	-40~105℃

PA66 Waterproof Low Voltage Wire Connectors Quick Release M19 9 Pin Connectors

Product Overview

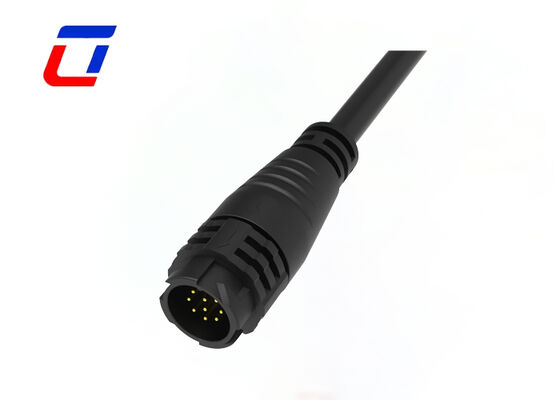

M19 9 Pin Male Cable Connector - Industrial Waterproof Aviation Connector featuring a push lock quick release system for easy connection and reliable performance in demanding environments.

Main Features

Push lock quick release system for easy connection
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire to wire and wire to board options
5A current rating for continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Technical Specifications

Core Specifications

PA66 engineering plastic shell, M19 circular size, 9-pin design for low-voltage circuits. Waterproof performance with quick release function, compatible with various low-voltage equipment.

Material Advantages

High-quality PA66 engineering plastic shell with excellent wear resistance, corrosion resistance, high temperature resistance, anti-aging and high toughness properties.

Waterproof Design

Reliable waterproof sealing structure effectively blocks moisture and dust intrusion, preventing short circuits and poor contact in low-voltage circuits.

Quick Release System

Simple operation without additional tools for efficient installation, inspection, repair and replacement in low-voltage equipment scenarios.

9-Pin Transmission

9-pin independent layout with low signal interference, supporting multi-channel low-voltage signal and power synchronous transmission.

Electrical Parameters

Parameter	Specification
Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

What payment methods do you accept?

We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment with 70% balance due before shipment.

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
