Name: M19 IP67 Panel Mount Connector Circular 3+2 Multi Pin Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Outdoor Waterproof Connector

M19 IP67 Panel Mount Connector Circular 3+2 Multi Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Color:	Black Blue White Red Yellow
Type:	Waterproof Connector	Housing Material:	PA66

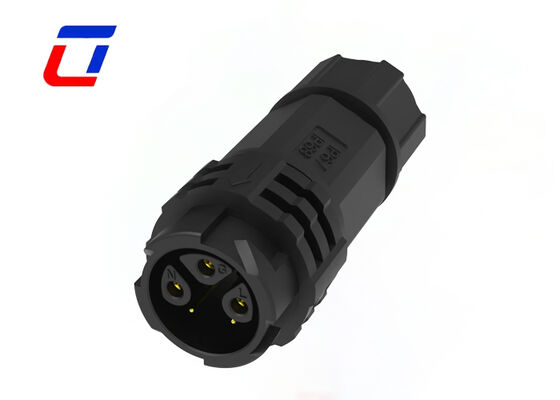

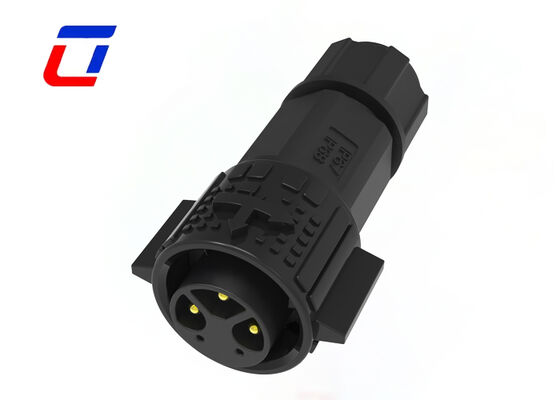

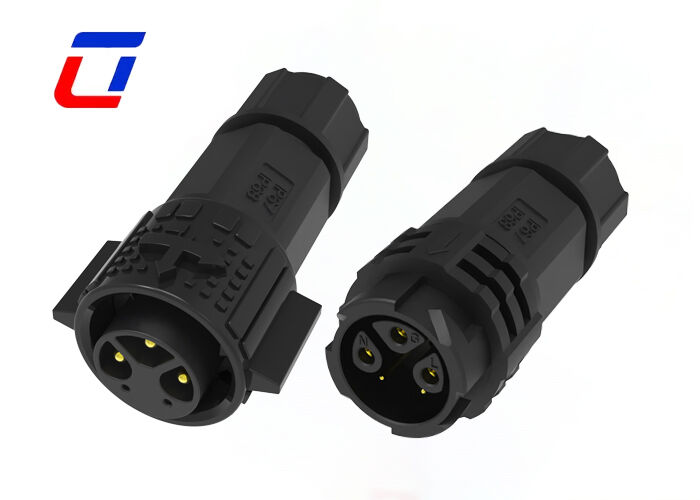

M19 IP67 Panel Mount Connector Circular 3+2 Multi Pin Waterproof Connector

M19 Plastic Male Female Connectors 3+2 Pin Circular Power And Signal Connector. Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector.

Product Overview

Core Specifications: Rated current 15+5A, M19 circular size, 3+2 multi-pin design, panel mount structure, IP67 waterproof and dustproof protection. Designed for equipment requiring high and low current partitioned transmission in outdoor or humid environments.
IP67 Waterproof & Dustproof Performance: Effective protection against moisture, dust, debris, and slight immersion. Excellent sealing performance for harsh environments including outdoor rain, humid workshops, and industrial dust.
3+2 Multi-Pin Partitioned Transmission: Unique layout enables 15A and 5A high-low current partitioned transmission. Supports high-power supply needs while transmitting control signals simultaneously, avoiding current interference.
Panel Mount Design: Convenient panel mount structure with firm installation and accurate positioning. Saves installation space with neat appearance and improved connection stability.
Stable & Durable Features: High-strength engineering plastic shell, impact-resistant, wear-resistant and corrosion-resistant. High-conductive metal contacts with anti-oxidation properties and low contact resistance for extended service life.

Main Features

Push lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire-to-wire and wire-to-board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Specification Category	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+2
Current Rating	15A+5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	IP67 (Dust Level 6)
Operating Temperature	-40°C to 105°C
Durability Rating	250-251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications Equipment Product Coding Machines Inventory Product Coding Systems Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material and contact spacing. Some components may not function properly below their rated voltage.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please provide your expected quantity for a customized quotation.

How to track my shipment?

Once goods are shipped, we provide tracking numbers and logistics platform links. You can track real-time status online or contact our team for updates.
