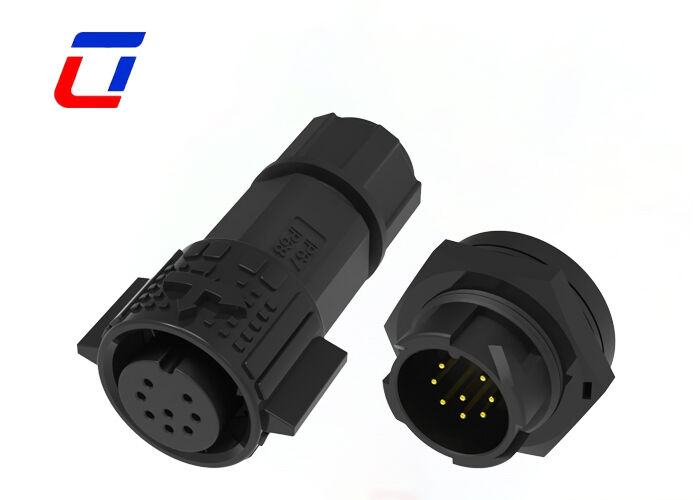

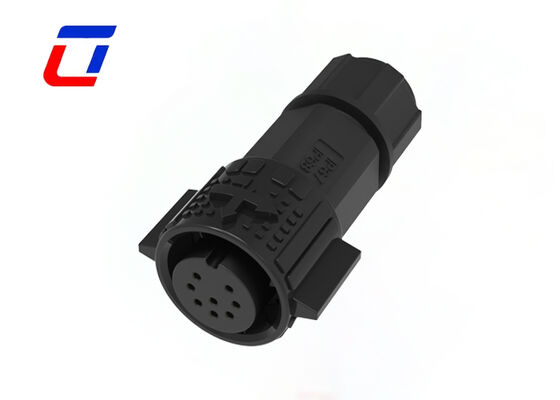

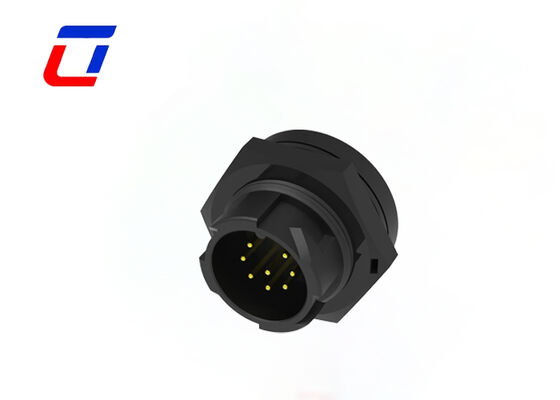

Name: 10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin	Gender:	Male To Female
Connector Type:	Quick Connector	Material:	Nylon
Rated Voltage:	300V	Operating Temperature:	-40℃-+105℃
Flame-sesistant Rating:	UL 94-V0	Color:	Blue,White,Green

10A 8 Pin Circular Connector M19 Push Locking Wire To Board Connector For Data

Product Overview

8 Pin Circular Connector M19 Male Female IP67 Waterproof Connectors designed for reliable data transmission in demanding industrial environments.

Core Specifications

Rated current: 10A maximum
M19 circular size with 8-pin configuration
Specifically designed for wire-to-board data transmission
Meets both power supply and data transmission requirements
Compatible with various data devices and industrial equipment

Key Features

Push lock quick release system for easy connection
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only configurations: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions with wire-to-wire and wire-to-board options
10A current rating for continuous operation
Cable assembly service supported with OEM/ODM customization available

Performance Advantages

Push-type locking structure ensures stable docking with automatic locking
Prevents accidental disconnection from vibration and external contact
8-pin independent pin layout with low signal interference
Efficient multi-channel data synchronous transmission
Simplified wiring and assembly processes reduce installation time
Standard M19 circular size compatible with most industry-standard interfaces

Technical Specifications

Electrical Parameters
Number of Poles	8Pin
Current Rating	10A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 1.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed shipping address, and we will dispatch samples promptly.

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.
