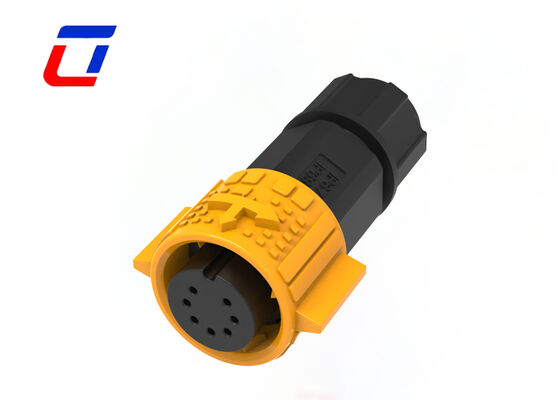

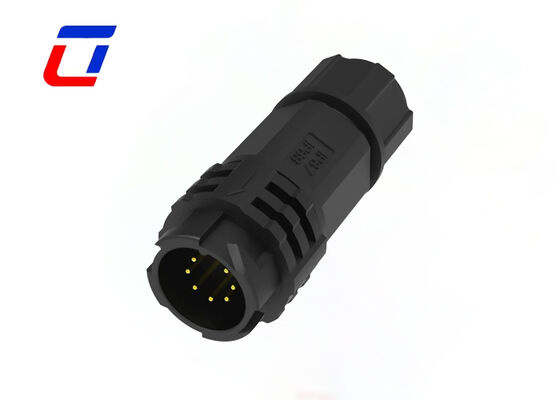

Low Current Waterproof Connectors For Landscape Lighting 7 Pin Data M19 Quick Locking

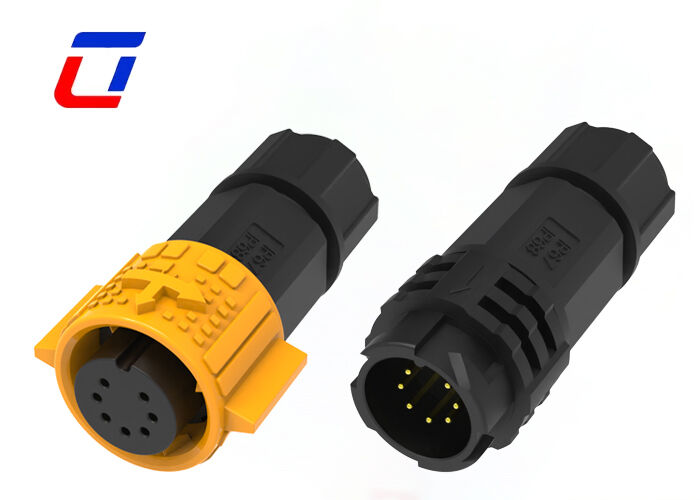

Our 7 Pin M19 Wire-to-Board Male-Female Connector is engineered for rugged outdoor applications, delivering reliable connectivity that stands up to harsh environmental conditions. Designed with a precision M19 housing, this connector ensures secure wire-to-board integration, while the 7-pin configuration enables stable transmission of power and signals for a wide range of industrial and outdoor devices.

• Industrial-Grade Protective Barrier: Featuring IP67 full-enclosure sealing (IP68 customization available), this connector completely isolates moisture, dust, and salt fog corrosion. Whether exposed to sunlight and rain in outdoor base stations or high-salt environments on ship decks, its precision silicone sealing ring maintains long-term reliability, ensuring zero-fault operation even under extreme temperatures ranging from -40℃ to +105℃.
• Vibration-Resistant Locking Structure: The innovative self-locking male-female docking system uses a physical buckle for one-touch connection with dual-layer locking. It fundamentally resolves connection loosening caused by industrial line vibration, outdoor wind loads, and heavy machinery impact, eliminating poor contact and power failure risks to guarantee 24/7 uninterrupted operation of critical equipment.
• High-Efficiency Power Transmission Core: The 3-pin layout, optimized for 20A high-current scenarios, utilizes gold-plated copper alloy contacts with a contact resistance as low as ≤10mΩ. While enabling efficient power transmission, it minimizes heat loss, providing a clean and stable power connection solution for high-power devices.
• Standardized & Easy Deployment: Complying with the international M19 standard interface, it supports wire-to-board and wire-to-board installation methods. Without the need to retrofit existing device architectures, it enables rapid replacement and upgrades, significantly reducing downtime during engineering installation and post-maintenance, thereby lowering overall operating costs.

• Push lock quick release system
• Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
• 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
• 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
• Field assembly version: both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome
