Name: M25 3+9 Circular Multi Pin Connectors Quick Release Wire To Board Connector Waterproof
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

M25 3+9 Circular Multi Pin Connectors Quick Release Wire To Board Connector Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Material:	Nylon
Connecting Mode:	Push Lock Wire To Board	Electrical Functions:	Power+Signal Transmission

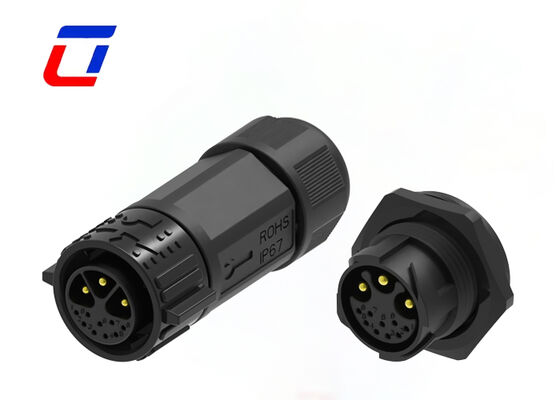

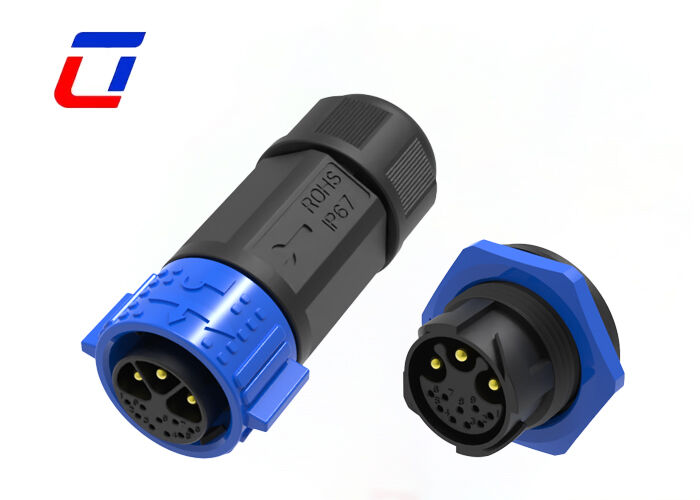

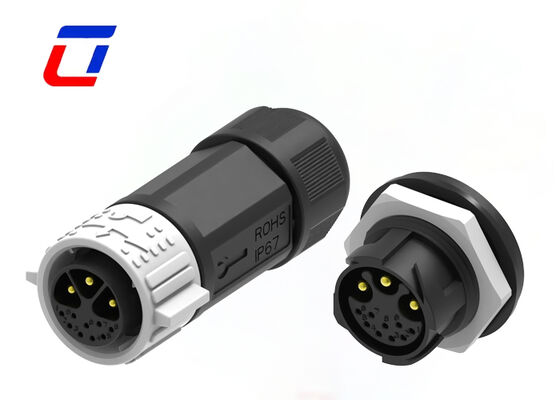

M25 3+9 Circular Multi Pin Connectors Quick Release Wire To Board Connector Waterproof

Product Overview

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Key Features

3+9 Pin Functional Subdivision: 3 pins carry main power, 9 pins support multi-channel signal transmission, replacing traditional connectors, reducing interfaces by 75% and wiring error to 0.
Quick-Lock Foolproof Design: Foolproof groove prevents pin damage, elastic buckle locks in 1 second without tools, enabling single-person outdoor installation and safer construction.
30A/300V Medium-Power Bearing: Fits outdoor medium-power equipment, 100% higher bearing capacity than small-current connectors.
IP67 Outdoor Protection: Triple sealing + weather-resistant housing resists harsh environments, suitable for long-term outdoor use like photovoltaics and security.
Low Loss & Anti-Interference: Oxygen-free copper gold-plated pins reduce loss; 9 signal pins with independent shielding, fit IoT remote data collection.

Technical Specifications

Product Type Features	Connector System: Cable-to-Board Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+9 Number of Signal Positions: 9 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 600V max. Operating Voltage (VDC): 600V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max) (A): 15A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range (°C): -40 ~105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What if there are quality issues with the received goods?

A2: Please provide photos/videos of the defective products within 7 days of receipt. We will verify the issue and offer solutions such as free replacement, repair, or partial refund based on the situation.

Q3: How many materials you can provide?

A3: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
