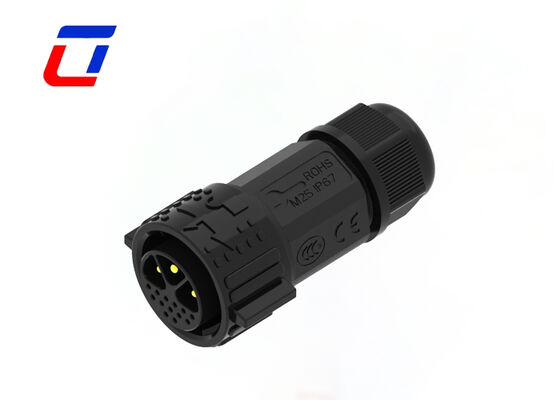

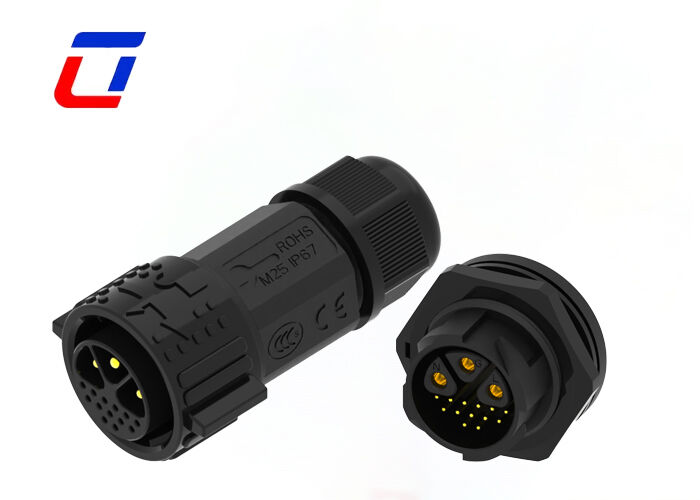

Circular Panel Mount Connector M25 Low Voltage 16 Pin Male Female Quick Lock Connector

M25 3+13 Pin IP67 Waterproof Connector Quick Release - Professional 3+13 Pin Plug Socket Waterproof M25 Data and Power Connector with IP67 rating and quick locking mechanism.

• Push lock quick release system
• Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
• Field assembly version: both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

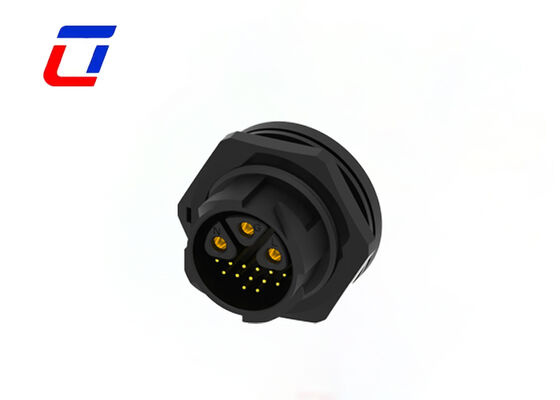

Panel-Specific Design, Stable Installation: Designed specifically for panel mount scenarios, adopting an embedded panel fixing structure. After installation, it fits the panel surface without loosening or protruding, suitable for panel wiring needs of various industrial equipment and instruments, balancing aesthetics and practicality.

Low Voltage 16-Pin (3+13) Split Layout, Efficient Transmission: Adopts a scientific 16-pin (3+13) split design, suitable for low-voltage working environments. 3 pins are used for low-voltage power supply, and 13 pins are for multi-channel signal transmission. The pin layout is regular and the contact is tight, effectively reducing contact resistance, avoiding signal interference, and balancing power supply stability and signal transmission accuracy.

Quick Lock Structure, Convenient and Efficient: Equipped with a quick lock mechanism, it can be locked by gently rotating after male and female docking, no additional tools required. The lock is firm and anti-falling, and the disassembly is convenient, which greatly improves the efficiency of equipment assembly, maintenance and repair, and adapts to scenarios requiring frequent plugging and unplugging.

Communications Application, product coding machines, inventory product coding, inkjet systems, Solar System, industrial inkjet equipment, Electric power equipment, Laboratory forensic & pathology equipment, Communications equipment, Heavy machinery
