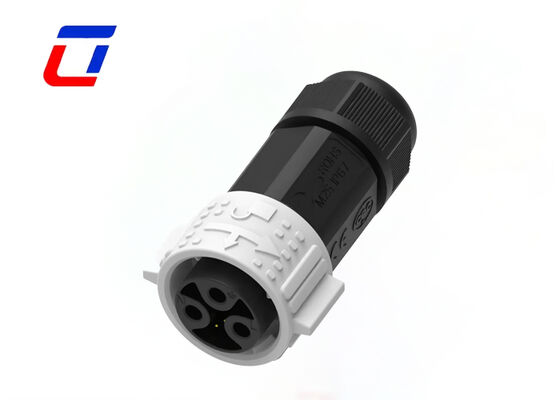

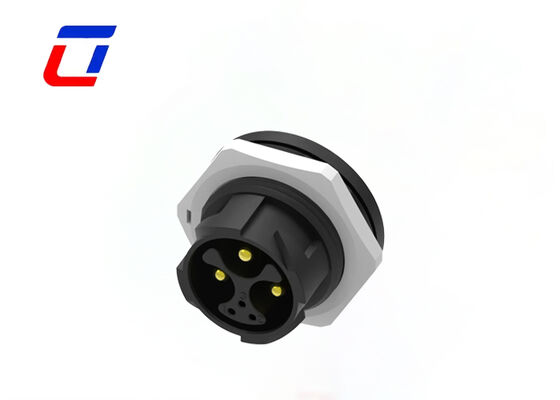

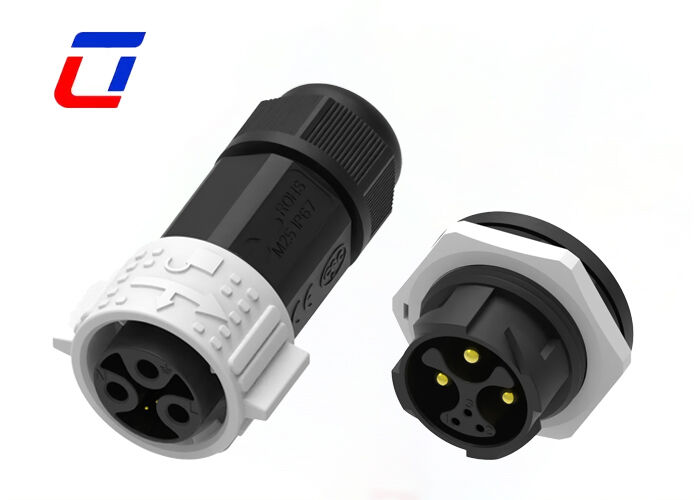

Name: M25 3+3 Pin Circular Push Pull Connectors 20A Wire To Board Power Signal Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

M25 3+3 Pin Circular Push Pull Connectors 20A Wire To Board Power Signal Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Material:	Nylon
Type:	Male Female Plug Socket	Flame-resistant Rating:	UL94-V0

M25 3+3 Pin Circular Push Pull Connectors 20A Wire To Board Power Signal Connector

M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector. Waterproof Connector M25 3+3 Pin IP67 15A+5A Male Female Quick Lock Plug Socket.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

3+3 Pin Split Design, Power & Signal Integration: Adopts an exclusive 3+3 pin layout, accurately realizing synchronous transmission of power and signal without additional connectors. The 20A rated current is scientifically distributed as 15A (power pins) + 5A (signal pins), balancing high-power supply and high-precision signal transmission, avoiding signal interference, and suitable for wire-to-board connection scenarios.

Push Pull Quick Connection, Easy Operation: Features an innovative push-pull connection structure, no tools required. It can be accurately connected with a light push and quickly disconnected with a pull, which balances connection stability and disassembly convenience, greatly improving the efficiency of equipment assembly, maintenance and repair, and adapting to industrial scenarios requiring frequent plugging and unplugging.

Industrial-Grade Protection, Adapt to Complex Working Conditions: The housing is made of high-strength PA66 material, combined with a precision silicone sealing structure, which has excellent dustproof, waterproof and anti-vibration performance, effectively resisting interference such as dust, humidity and mechanical vibration in industrial workshops, ensuring stable power and signal transmission, and extending the service life of the connector.

Wire-to-Board Special, Strong Adaptability: Designed specifically for wire-to-board connection scenarios, the terminals adopt a foolproof positioning structure to avoid reverse connection and wrong connection, and the wiring is convenient. It is compatible with various specifications of cables, and can flexibly match the power supply and signal transmission needs of industrial automation equipment, instruments and meters, intelligent control equipment and other wire-to-board connections.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	20A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

What is rated Current?

Rated current, also known as operating current. When operated below the rated current with proper voltage, connectors generally work properly. During connector design, thermal considerations ensure the connector meets rated current requirements, as current flow generates heat due to conductor resistance and contact resistance.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
