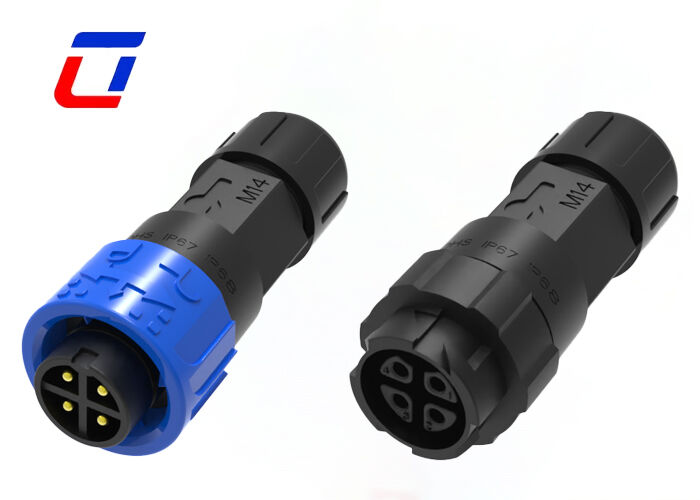

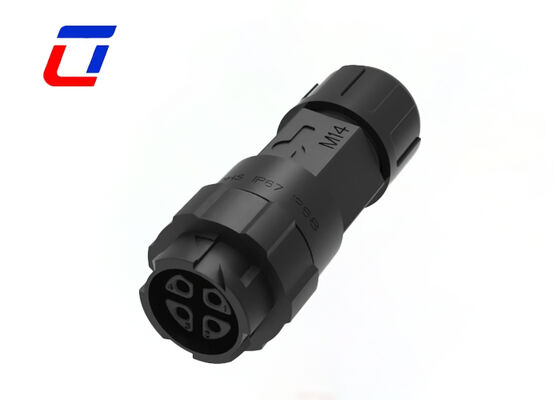

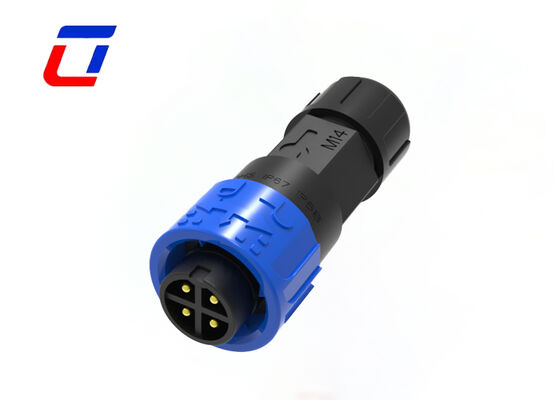

Name: M16 Waterproof 4 Pin Connector 10A IP67 Rated Power Male To Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Outdoor Waterproof Connector

M16 Waterproof 4 Pin Connector 10A IP67 Rated Power Male To Female Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	Max 10A
Voltage Rating:	300 V	Waterproof Level:	IP67
Material Of Copper Needles:	Copper Alloy	Flame-resistant Rating:	UL94-V0
Highlight:	M16 waterproof 4 pin connector , IP67 rated power connector , male to female waterproof connector

10A M16 4 Pin Electrical Connectors Push Locking Outdoor Wire To Wire Connector

Product Overview

4 Pin Waterproof Connector, M16 10A PA66 Push Locking Wire Board Connectors

M16 4-Pin 10A Wire-to-Board Connector
Specially designed for outdoor wire-to-board power supply, suitable for low and medium-power outdoor equipment.

Push-Lock Quick Connection
One press to lock, tool-free, efficient plug-in, shockproof and pull-resistant for stable connection.

IP67 Sealed Protection
Professional sealing structure blocks rain, dust and moisture, ideal for harsh outdoor environments.

Standard Interface for Easy Installation
M16 standard size with stable board mounting, simple wiring and easy integration.

Dedicated Power Transmission
4-pin precise layout for stable power delivery, perfect for long-term outdoor use.

High Safety Electrical Performance
10A rated current, insulated and flame-retardant, short-circuit & leakage proof for safer outdoor use.

Main Features

Push lock quick release system, hassle-free operation
Multic-core are available for selection: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version: wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How many materials you can provide?

A1: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.

Q2: Can I have custom label?

A2: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

Q3: What is your Minimum Order Quantity (MOQ)?

A3: The MOQ varies by product type--usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
